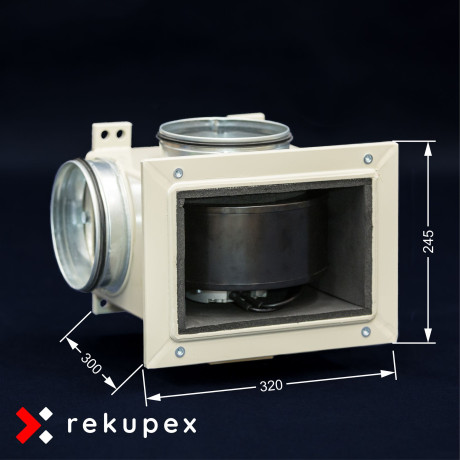

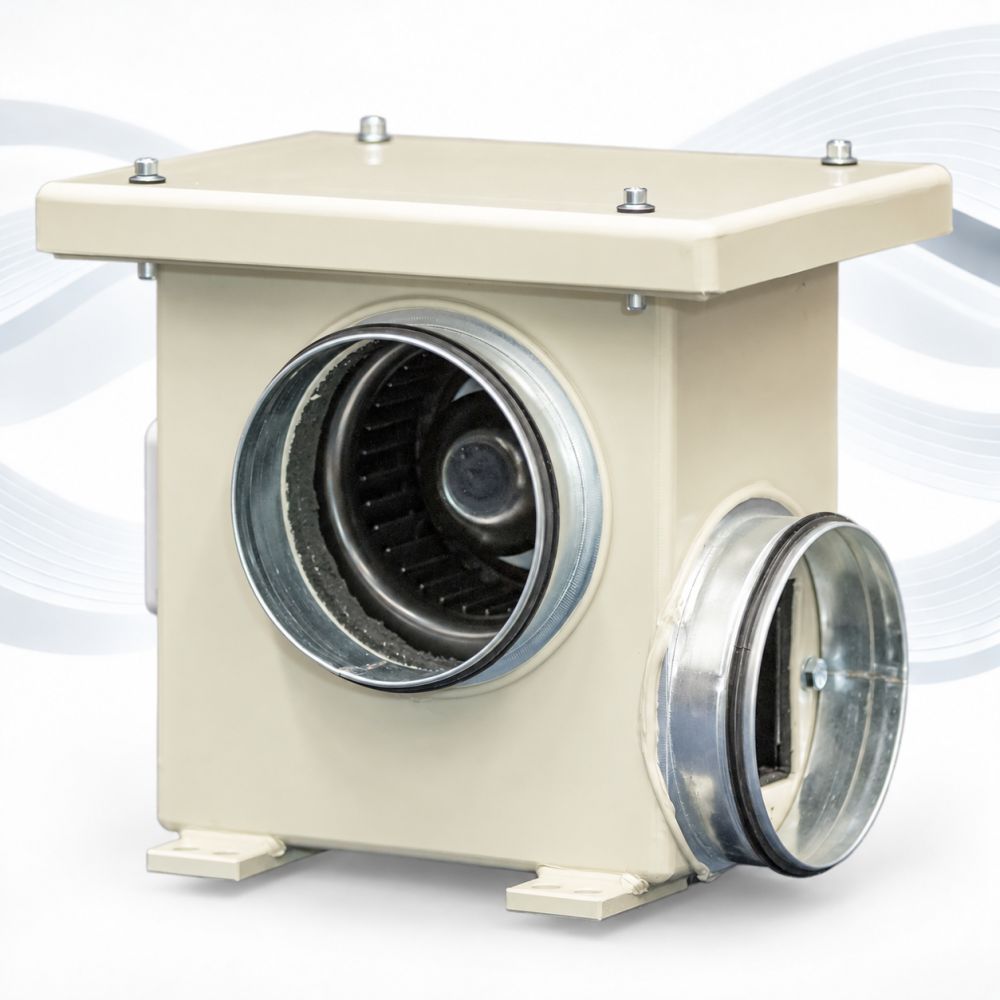

Compact insulated PP casing for installing the AFL EC Constant Flow 360 m³/h fan. Features 90° airflow, dimensions of just 320 × 245 × 300 mm, simple installation, service door, measured airflow up to 370.5 m³/h, and a 12-year warranty on the casing.
Compact insulated casing for the installation of the AFL EC Constant Flow 360 m³/h fan with a 90° airflow direction.

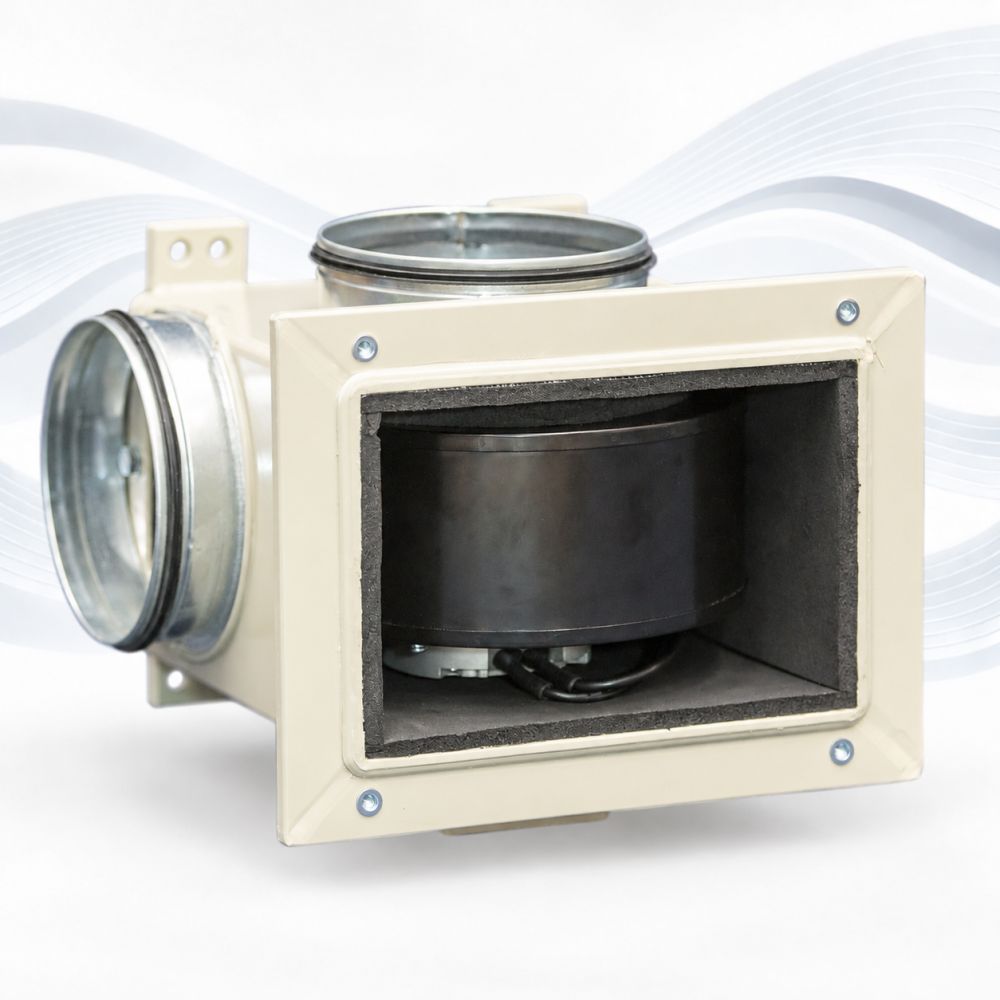

AIRBOX 90 360 is designed for installations where every centimeter of space matters. The design allows a 90° change in airflow direction while maintaining compact dimensions, simple installation, and easy service access.
The product is designed for the installation of a compatible AFL EC Constant Flow 360 m³/h centrifugal fan. The fan, electrical connections, and controls are not included with the AIRBOX casing itself.
AFL EC Constant Flow 360 m³/h fan for AIRBOX 90 360

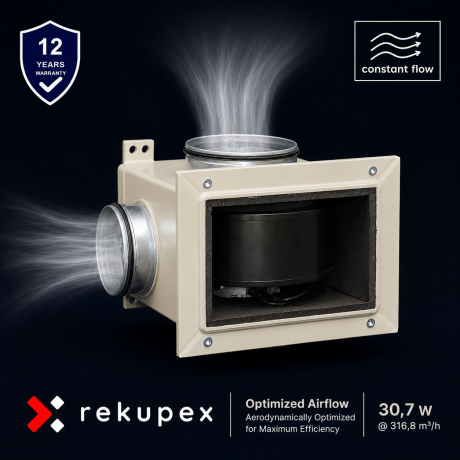

AIRBOX 90 360 offers an impressive balance between compact size and performance. At a 10 V control signal, the tested setup with the AFL EC Constant Flow 360 m³/h fan reaches an airflow rate of up to 370.5 m³/h with a power consumption of just 45.4 W.

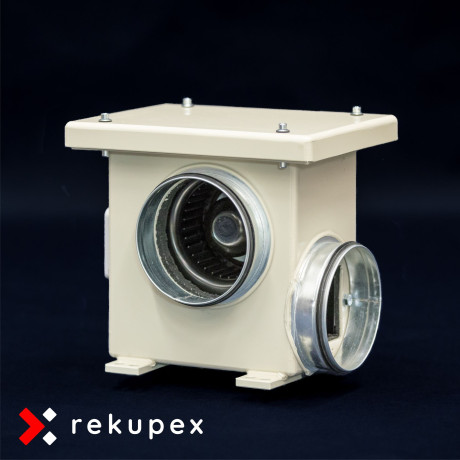

The AIRBOX 90 360 is supplied without a fan. The photos show an example of the AFL EC Constant Flow 360 m³/h fan installation.
AIRBOX 90 360 was designed and tested specifically for use with the AFL EC Constant Flow 360 m³/h fan.
All published airflow and power consumption measurements were obtained using this specific fan.
The casing geometry, fan positioning, connection spigots, and overall dimensions were optimized to achieve the best possible performance parameters precisely with the AFL EC Constant Flow 360 m³/h fan.
Compatible fan: AFL EC Constant Flow 360 m³/h fan
| Compact dimensions | Just 320 × 245 × 300 mm. The AIRBOX 90 360 is a highly compact solution for installing the AFL EC Constant Flow 360 m³/h fan. |
| 90° Airflow | Ideal for setups where there is no room for straight ducting and a change in airflow direction is required. |
| Simple fan installation | The fan is installed inside the casing via the service door. There is no need to manufacture custom brackets or improvised covers. |
| Condensation and noise insulation | Internal synthetic rubber insulation helps prevent condensation while contributing to acoustic dampening. |
| Robust PP construction | The AIRBOX is made of polypropylene, which does not corrode, is moisture-resistant, and ensures long-term stable operation. |
The AFL EC Constant Flow 360 m³/h fan can be installed inside the AIRBOX 90 360 in any position.
As a result, the AIRBOX 90 360 offers exceptional flexibility when designing MVHR and HVAC systems. The construction is suitable for wall mounting, ceiling installation, technical rooms, and ceiling voids.

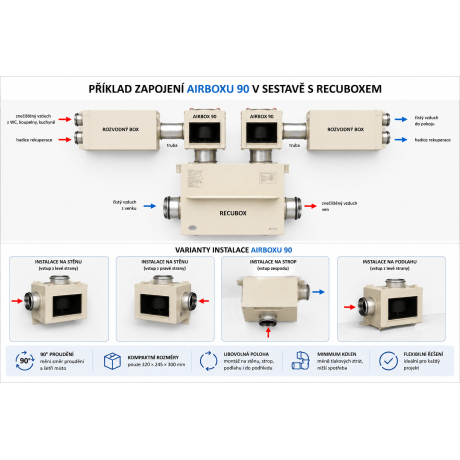

A highly elegant solution is, for example, installation above a RECUBOX® unit in a false ceiling, where air enters the AIRBOX from underneath and exits directly into the ceiling void toward the distribution box.
Thanks to the 90° airflow direction, you can significantly simplify duct routing, reduce the number of elbows, and save valuable space in the ceiling void or technical room.
In many installations, the AIRBOX 90 360 allows you to create a solution that would require more space, more ducting, and more mounting elements with a standard inline fan.
The result is a cleaner installation, simpler assembly, and more efficient use of available space.
All listed values were measured with the AFL EC Constant Flow 360 m³/h fan installed.
| Control signal | Airflow rate | Power consumption | Report |
|---|---|---|---|
| 10 V | 370.5 m³/h | 45.4 W | PDF report |
| 8 V | 316.8 m³/h | 30.8 W | PDF report |
| 6 V | 212.4 m³/h | 12.4 W | PDF report |
| 3 V | 125 m³/h | 4.6 W | PDF report |
Measurement conditions:
The measured airflow and consumption values may vary depending on the ductwork, filters, distribution system, and other elements of the ventilation installation.
A dimensional drawing of the AIRBOX 90 360 is available to verify dimensions and design the installation.
The drawing includes basic external dimensions, the positioning of connection spigots, and mounting brackets.
| External width | 320 mm |
| External height | 245 mm |
| External depth | 300 mm |
| Casing material | polypropylene PP |
| Internal insulation | synthetic rubber, 10 mm thickness |
| Mounting brackets | 4 brackets with Ø12 mm holes |
| Optional connection diameters | Ø125 mm, Ø150 mm or Ø160 mm |
| Airflow direction | 90° |
The 10 mm thick internal synthetic rubber insulation reduces the risk of condensation on the casing surface while helping to dampen fan noise.
Therefore, the AIRBOX 90 360 is suitable for use in technical rooms, false ceilings, and residential properties.
Just like our RECUBOX® units, the AIRBOX 90 360 is made of high-quality polypropylene.
The connection spigots are equipped with double-lip seals for a firm and airtight duct connection.
Service access to the fan is provided via a dedicated door.
The AIRBOX 90 360 is designed for the fastest possible integration into a ventilation system.
The casing features 4 mounting brackets with 12 mm diameter holes, allowing simple and secure attachment to the ceiling, wall, or support frame.
Thanks to the service door, the fan is easily accessible for installation, inspection, or potential replacement.
Three connection spigot diameters are available to choose from:
The greatest advantage of the AFL EC Constant Flow 360 m³/h fan is its ability to automatically maintain the configured airflow rate.
By connecting two AFL EC Constant Flow 360 m³/h fans to the same 0–10 V control signal and pairing them with our RECUBOX® units, you get a modern balanced ventilation system with heat recovery and exceptionally low power consumption.
This solution is ideal for modular RECUBOX® configurations, smart homes, Loxone, Home Assistant, and other building management systems (BMS).
We provide an extended 12-year warranty on the AIRBOX casing.
The AIRBOX is made of high-quality polypropylene and joined using hot gas welding technology. This results in homogeneous, strong, and long-term stable joints with zero risk of corrosion.
Unlike sheet metal structures, there is no risk of corrosion, and unlike glued constructions, the joints do not degrade due to moisture or temperature fluctuations.
Thanks to its simple design with no moving parts, the AIRBOX is built for long-term, trouble-free operation. We therefore provide a 12-year warranty on the airtightness and mechanical integrity of the polypropylene casing.
The AIRBOX 90 360 is a mounting and insulation casing for installing a compatible AFL EC Constant Flow 360 m³/h fan.
The AIRBOX itself does not include a fan, motor, electrical components, or control electronics. It is a passive mechanical element intended for integration into a ventilation system.
Fan selection, mounting, electrical connection, and commissioning of the final assembly are to be carried out by the customer or a professional installation company.
The RECUBOX® AIRBOX 90 360 is a mounting and insulation casing designed for the installation of the AFL EC Constant Flow 360 m³/h fan. The fan itself, electrical connections, and controls are not included in the AIRBOX delivery.
