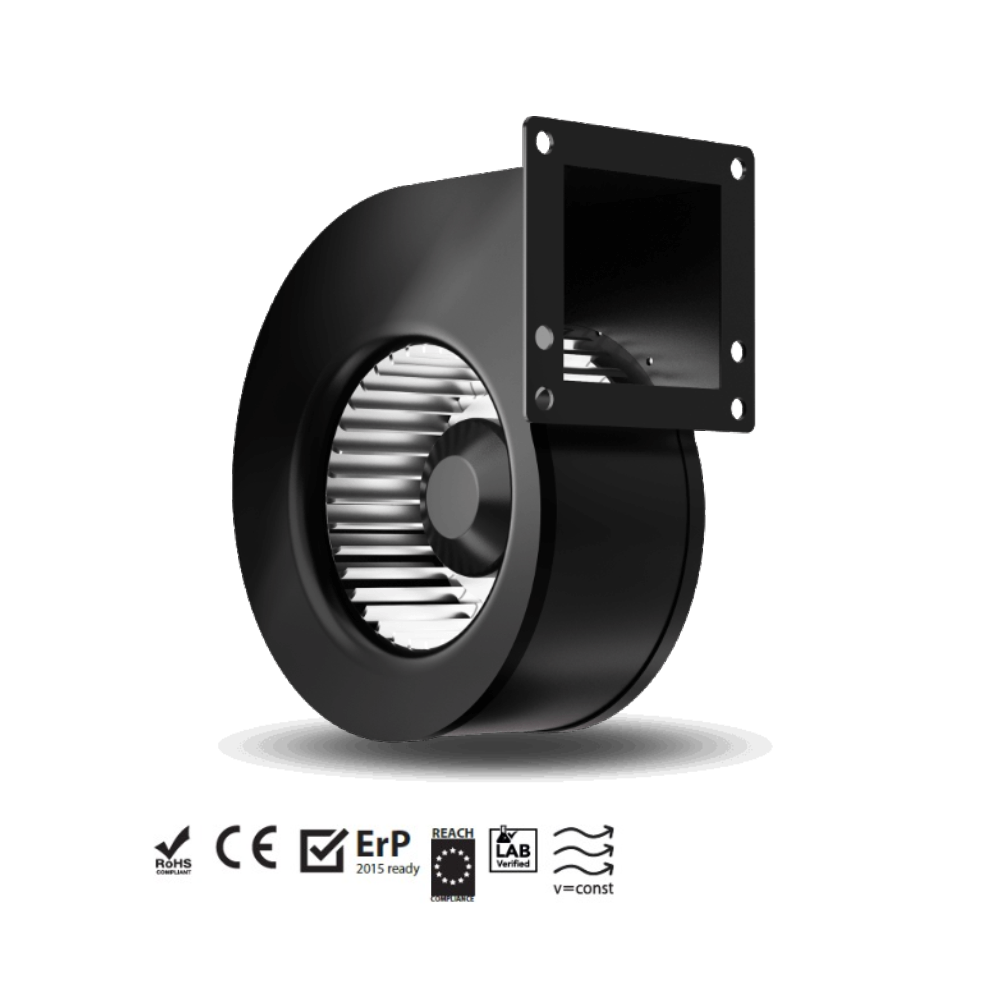

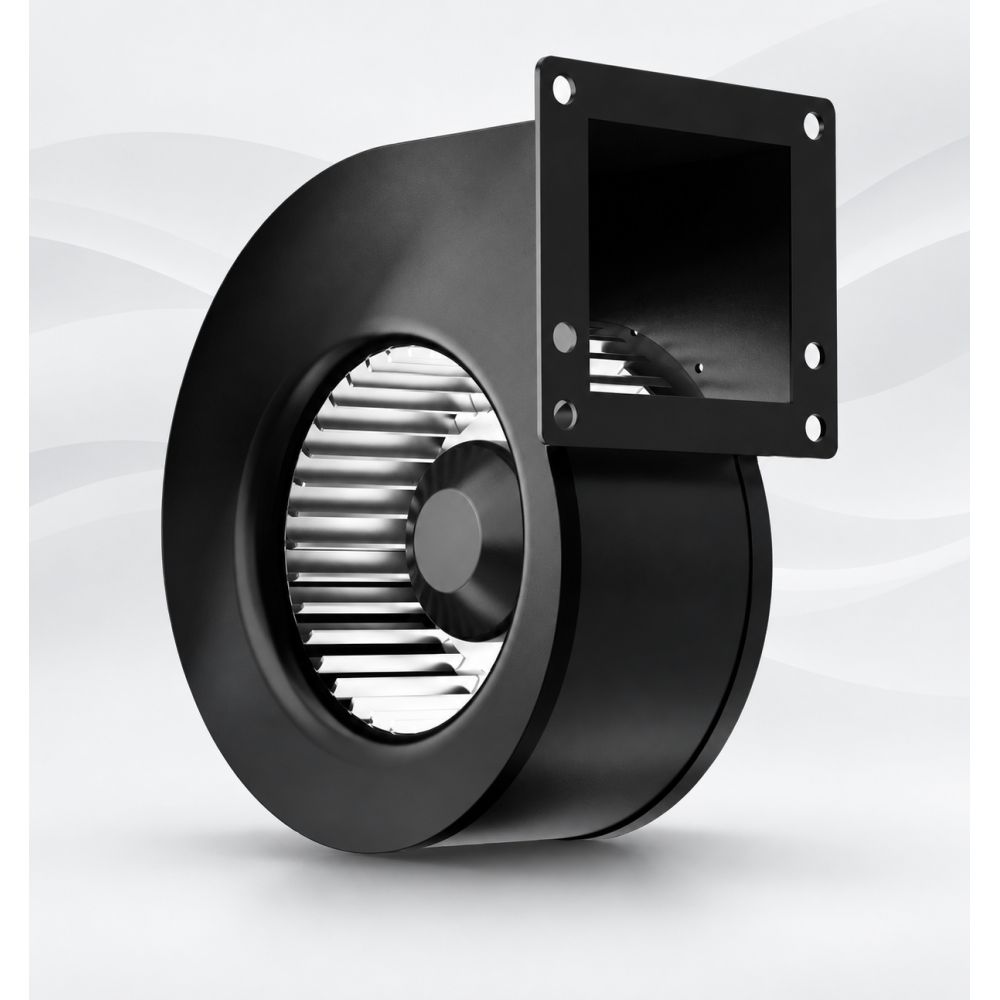

AFL EC CONSTANT FLOW – fan for RECUBOX® 360 VENT-READY

Highly efficient EC fan AFL CONSTANT FLOW , designed for installation in the RECUBOX® 360 VENT-READY unit.
Thanks to intelligent regulation, it maintains a constant flow rate of 360 m³/h even at external pressure of up to 500 Pa .
Extremely quiet, economical (only 45 W+-16%) and equipped with equal pressure control technology without the need for branch balancing .

Designed for installation in the RECUBOX VENT-READY system.

$176.08
i
The amount of VAT applied is 0% for the country United States.
Quantity
Product available for orders

WARNING: "This product is intended for installation in RECUBOX® VENT-READY only." It is not for sale separately.

AFL EC CONSTANT FLOW – intelligent fan for equal pressure systems

AFL EC CONSTANT FLOW fans represent the cutting edge in the field of modern air conditioning.
They are equipped with an EC motor with integrated electronics that automatically maintains a constant air flow regardless of changing pressure conditions in the system.

Ideal for RECUBOX® VENT-READY

In combination with RECUBOX® 360 VENT-READY, an equal-pressure heat recovery system is created that does not require any manual balancing between supply and exhaust.
The fans control their performance and maintain flow balance even with long ducts or when using filters with higher resistance.

Key benefits

  • Constant air flow (Constant Flow) – the fan itself reacts to pressure changes in the system.

  • High performance – up to 360 m³/h at 500 Pa external loss.

  • Economical operation – consumption only 45 W+-16% (automatic balancing system).

  • Quiet operation – EC motor with continuous speed control.

  • Maintenance-free design – long-life ball bearings.

  • Easy installation – within 15 minutes, attached with four screws.

  • Compatible with smart control systems (e.g. Loxone, 0-10 V control).

MAIN ADVANTAGES

  • Automatically maintains a constant flow rate – no manual adjustments.

  • Extreme pressure performance – up to 500 Pa external loss.

  • Energy-saving EC motor – minimal energy consumption.

  • Quiet, reliable and vibration-free.

  • The ideal addition to RECUBOX® 360 VENT-READY.

  • Installation within 15 minutes.

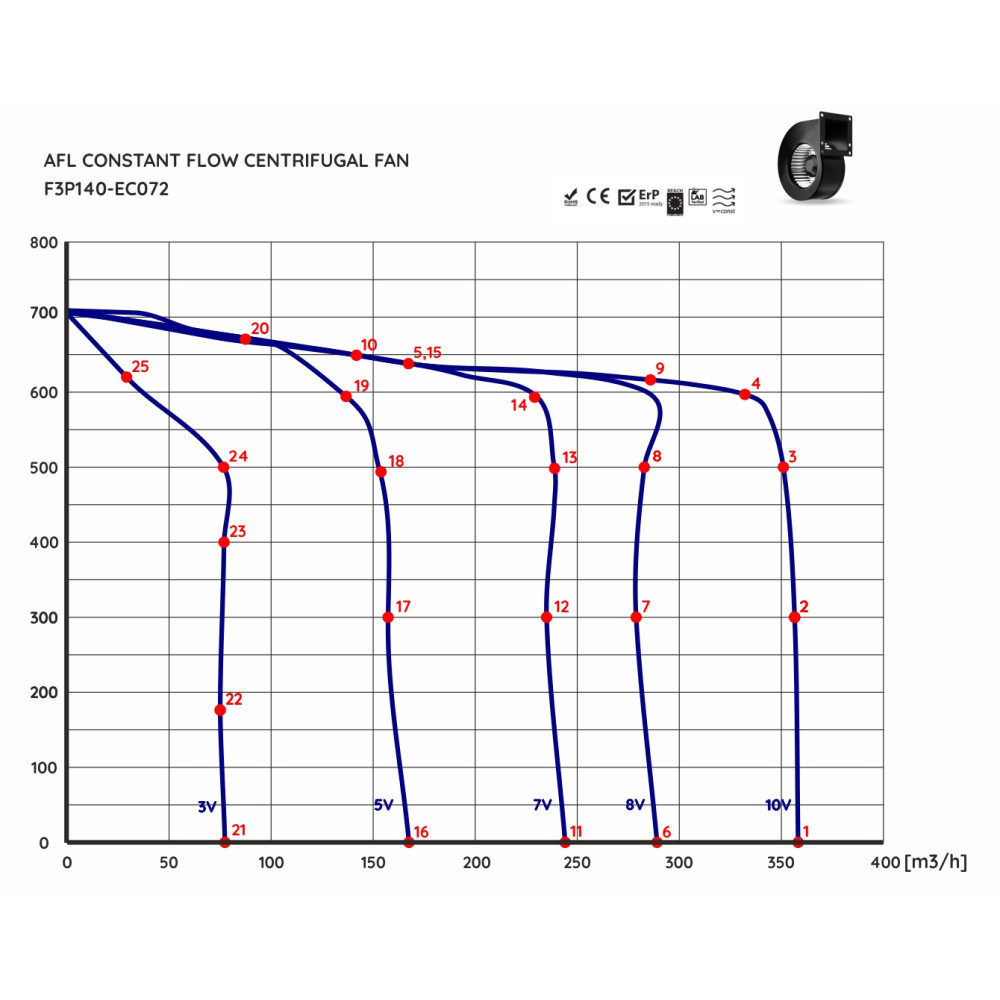

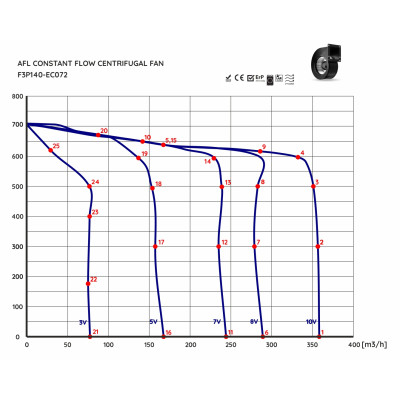

constant flow system 360

ITEM UNIT VOLTAGE [V] FREQUENCY [Hz] SPEED [rpm] POWER [W] CURRENT [A] AIRFLOW [m³/h] PRESSURE [Pa] GSP [V]
1 220 50 1569 41 0.28 358 0 10V
2 220 50 2544 96 0.67 357 301 10V
3 220 50 3066 134 0.95 350 498 10V
4 220 50 3290 146 1.03 341 596 10V
5 220 50 3529 97 0.69 170 634 10V
6 220 50 1429 22 0.17 280 0 8V
7 220 50 2309 67 0.47 278 298 8V
8 220 50 2904 104 0.73 283 499 8V
9 220 50 3293 126 0.89 289 599 8V
10 220 50 3527 88 0.63 143 639 8V
11 220 50 1065 14 0.13 242 0 7V
12 220 50 2295 55 0.38 239 300 7V
13 220 50 2908 91 0.64 276 500 7V
14 220 50 3338 108 0.76 269 592 7V
15 220 50 3527 97 0.69 170 633 7V
16 220 50 742 7 0.07 167 0 5V
17 220 50 2397 41 0.28 180 308 5V
18 220 50 3115 69 0.48 154 494 5V
19 220 50 3397 79 0.50 187 594 5V
20 220 50 3528 72 0.50 187 675 5V
21 220 50 590 7 0.08 145 0 3V
22 220 50 1809 19 0.15 175 180 3V
23 220 50 2738 38 0.26 193 396 3V
24 220 50 3086 48 0.33 176 498 3V
25 220 50 3330 52 0.36 208 622 3V

AFL Motors

Data sheet

EC motor
YES - constant flow system
Rated current [A]
0.25A +-16%
Power supply [V/Hz]
230V 50-60Hz
Max. speed [min]
1600 rpm +-10%
Power consumption [W]
45W +-16%
Operating temperature [°C]
-25 to +60°C
Regulation method
0-10VDC/PWM
Degree of protection
IP44
