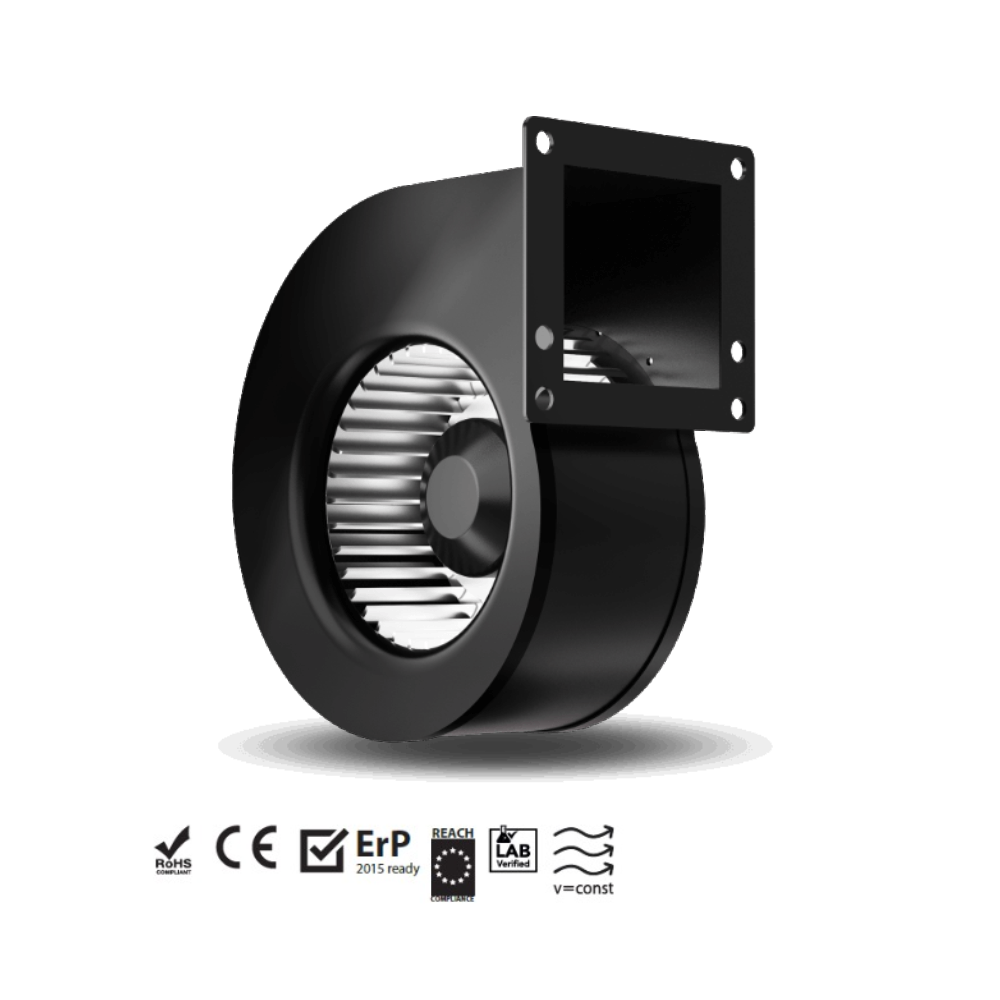

AFL EC CONSTANT FLOW – fan for RECUBOX® 520 VENT-READY

Highly efficient EC fan AFL CONSTANT FLOW , designed for installation in the RECUBOX® 520 VENT-READY unit.
Thanks to intelligent regulation, it maintains a constant flow rate of 520 m³/h even at external pressure of up to 500 Pa .
Extremely quiet, economical and equipped with equal pressure control technology without the need for branch balancing .

Designed for installation in the RECUBOX VENT-READY system.

Kč4,041
i
The amount of VAT applied is 0% for the country United States.
Quantity
In Stock

WARNING: "This product is intended for installation in RECUBOX® VENT-READY only." It is not for sale separately.

AFL EC CONSTANT FLOW – intelligent fan for equal pressure systems

AFL EC CONSTANT FLOW fans represent the cutting edge in the field of modern air conditioning.
They are equipped with an EC motor with integrated electronics that automatically maintains a constant air flow regardless of changing pressure conditions in the system.

Ideal for RECUBOX® VENT-READY

In combination with RECUBOX® 520 VENT-READY, an equal-pressure heat recovery system is created that does not require any manual balancing between supply and exhaust.
The fans control their performance and maintain flow balance even with long ducts or when using filters with higher resistance.

Key benefits

  • Constant air flow (Constant Flow) – the fan itself reacts to pressure changes in the system.

  • High performance – up to 520 m³/h at 500 Pa external loss.

  • Energy-efficient operation – consumption only 110 W+-16%.

  • Quiet operation – EC motor with continuous speed control.

  • Maintenance-free design – long-life ball bearings.

  • Easy installation – within 15 minutes, attached with four screws.

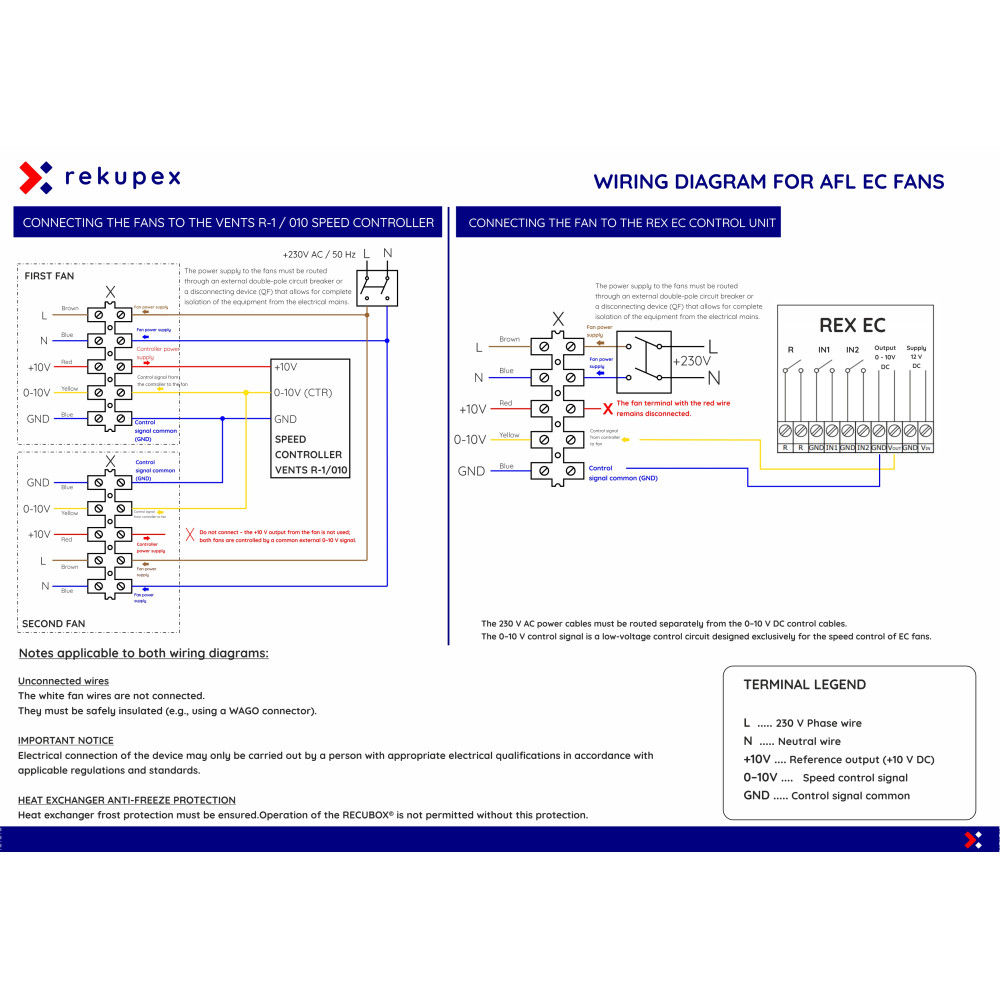

  • Compatible with smart control systems (e.g. Loxone, 0-10 V control).

MAIN ADVANTAGES

  • Automatically maintains a constant flow rate – no manual adjustments.

  • Extreme pressure performance – up to 800 Pa pressure loss.

  • Energy-saving EC motor – minimal energy consumption.

  • Quiet, reliable and vibration-free.

  • The ideal addition to the RECUBOX® 520 VENT-READY.

  • Installation within 15 minutes.

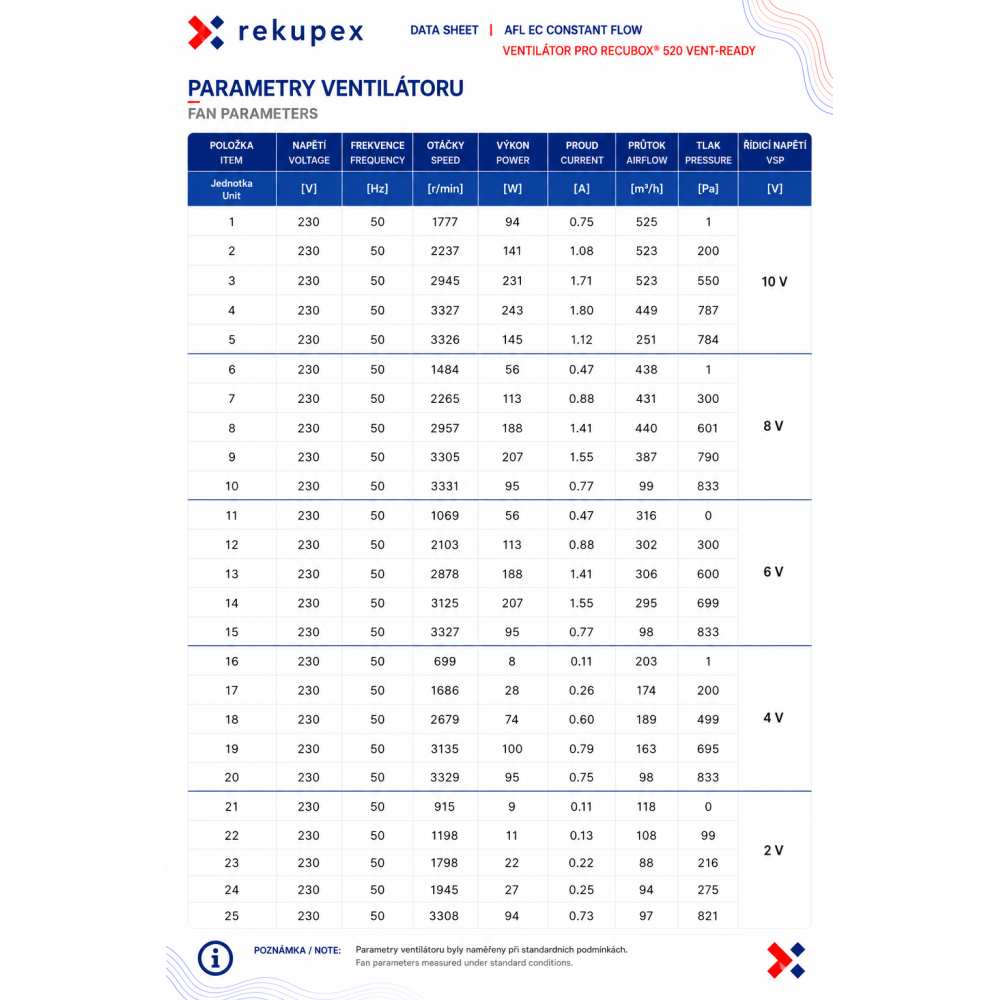

AFL 160

ITEM UNIT VOLTAGE [V] FREQUENCY [Hz] SPEED [rpm] POWER [W] CURRENT [A] AIRFLOW [m³/h] PRESSURE [Pa] Vsp [V]
1 230 50 1777 94 0.75 525 1 10V
2 230 50 2237 141 1.08 523 200 10V
3 230 50 2945 231 1.71 523 550 10V
4 230 50 3243 243 1.80 449 787 10V
5 230 50 3326 145 1.12 251 784 10V
6 230 50 1484 56 0.47 438 1 8V
7 230 50 2265 113 0.88 431 300 8V
8 230 50 2957 188 1.41 440 601 8V
9 230 50 3305 207 1.55 387 790 8V
10 230 50 3331 95 0.77 99 833 8V
11 230 50 1069 56 0.47 316 0 6V
12 230 50 2103 113 0.88 302 300 6V
13 230 50 2878 188 1.41 306 600 6V
14 230 50 3125 207 1.55 295 699 6V
15 230 50 3327 95 0.77 98 833 6V
16 230 50 699 8 0.11 203 1 4V
17 230 50 1686 28 0.26 174 200 4V
18 230 50 2679 74 0.60 189 499 4V
19 230 50 3135 100 0.79 163 695 4V
20 230 50 3329 95 0.75 98 833 4V
21 230 50 915 9 0.11 118 0 2V
22 230 50 1198 11 0.13 108 99 2V
23 230 50 1798 22 0.22 88 216 2V
24 230 50 1945 27 0.25 94 275 2V
25 230 50 3308 94 0.73 97 821 2V

Data sheet

EC motor
YES - constant flow system
Rated current [A]
0.75A +-16% (constant flow)
Power supply [V/Hz]
230V 50-60Hz
Max. speed [min]
1900 rpm +-10%
Power consumption [W]
110W +-16% (constant flow)
Operating temperature [°C]
-25 to +60°C
Regulation method
0-10VDC/PWM
Degree of protection
IP44
