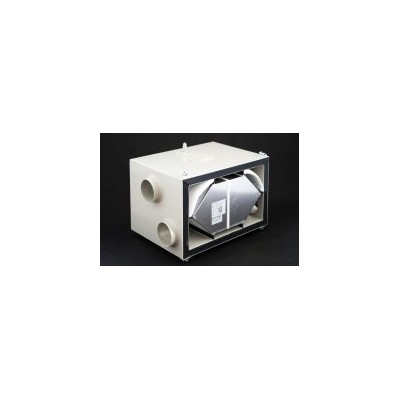

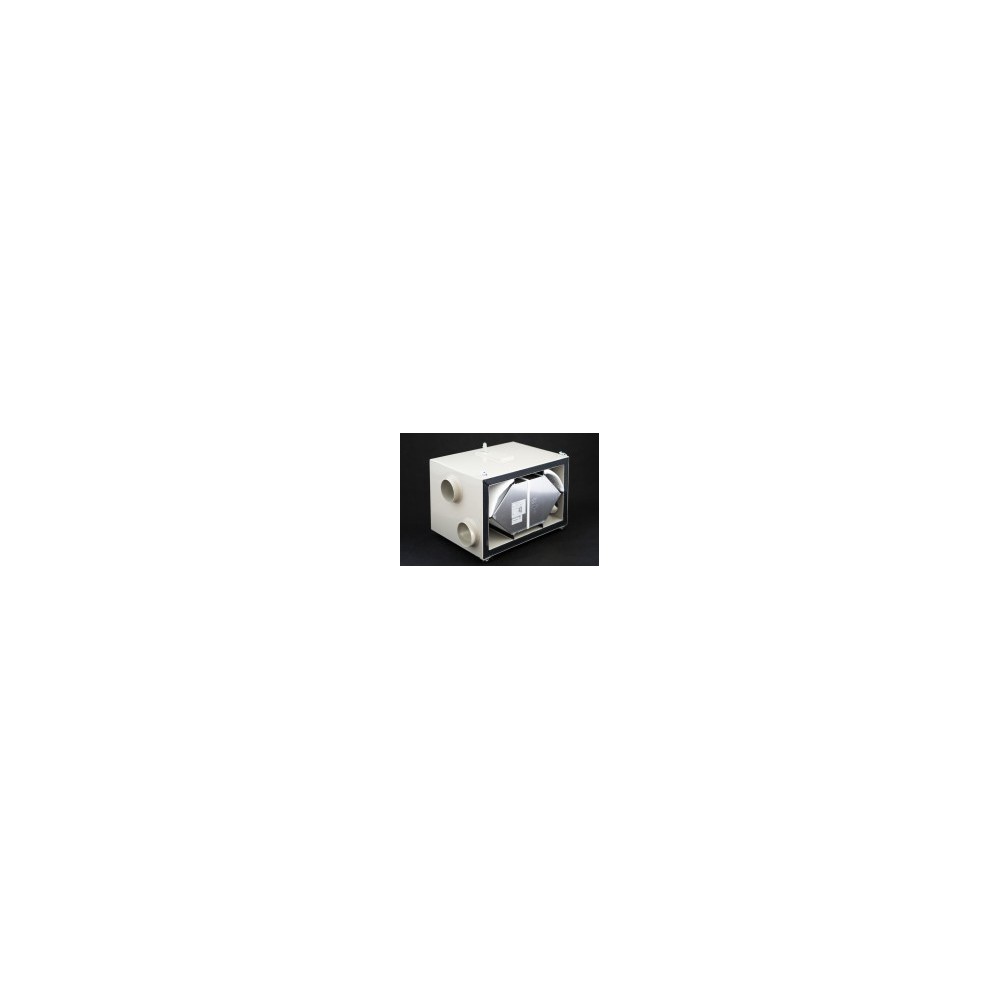

RECUBOX® OPEN RX 08/700 - 2500 m3/h (removable heat exchanger in the casing, heat recovery box, air recovery, unit)

Made in the Czech Republic ...

Equipped with an RX 08/700 exchanger ....

Removable exchanger ....

Output up to 2500 m3/hour ....

Certified efficiency up to 96% ....

M5 filters .....

Kč43,549
i
The amount of VAT applied is 0% for the country United States.
Ø of connection flanges [mm]: 355
Installed exchanger: RX 08/700 (aluminum)
Connection socket variant: A01
BYPASS: NO
Box insulation: Without insulation
Preparation for the ionizer: NO
Quantity
In Stock

STOCK AVAILABILITY OF RECUBOX® VARIANTS
RECUBOX® Without insulation Insulation 30, 50 mm BYPASS 4 cleaning holes Note
RX 02/200 - A01, A02, B01, B02 delivery 2 - 3 weeks delivery 3 - 4 weeks - On request Price promotion for the model with a plastic exchanger
OPEN RX 02/200 - A01, A02, B01, B02 delivery 1 - 2 weeks delivery 2 - 3 weeks On request - Price promotion for the model with a plastic exchanger
RX 03/200 - A01, A02, B01, B02 delivery 2 - 3 weeks delivery 3 - 4 weeks On request
OPEN RX 03/200 - A01, A02, B01, B02 delivery 1 - 2 weeks delivery 2 - 3 weeks On request -
RX 04/300 - A01, A02, B01, B02 delivery 2 - 3 weeks delivery 3 - 4 weeks - On request
OPEN RX 04/300 - A01, A02, B01, B02 delivery 1 - 2 weeks delivery 2 - 3 weeks On request -
RX 04/400 - A01, A02, B01, B02 delivery 2 - 3 weeks delivery 3 - 4 weeks - On request Price promotion for the model with both plastic and AL exchanger
delivery 1 - 2 weeks delivery 2 - 3 weeks On request - Price promotion for the model with both plastic and AL exchanger
RX 04/500 - A01, A02, B01, B02 delivery 2 - 3 weeks delivery 3 - 4 weeks - On request Price promotion for the model with both plastic and AL exchanger
OPEN RX 04/500 - A01, A02, B01, B02 delivery 1 - 2 weeks delivery 2 - 3 weeks On request - Price promotion for the model with both plastic and AL exchanger
RX 05/300 - A01, A02, B01, B02 delivery 2 - 3 weeks delivery 3 - 4 weeks - On request
OPEN RX 05/300 - A01, A02, B01, B02 delivery 1 - 2 weeks On request -
RX 05/400 - A01, A02, B01, B02 delivery 2 - 3 weeks delivery 3 - 4 weeks - On request
OPEN RX 05/400 - A01, A02, B01, B02 delivery 1 - 2 weeks delivery 2 - 3 weeks On request -
RX 06/150 - A01, A02, B01, B02 delivery 1 - 2 weeks delivery 2 - 3 weeks - On request
RX 06/400 - A01, A02, B01, B02 delivery 2 - 3 weeks delivery 3 - 4 weeks - On request Price action
RX 05/800 - A01, A02, B01, B02 delivery 2 - 3 weeks delivery 3 - 4 weeks - On request
OPEN RX 05/800 - A01, A02, B01, B02 delivery 1 - 2 weeks delivery 2 - 3 weeks On request -
RX 05/800 - A01, A02, B01, B02 delivery 2 - 3 weeks delivery 3 - 4 weeks - On request
OPEN RX 05/800 - A01, A02, B01, B02 delivery 1 - 2 weeks delivery 2 - 3 weeks -
RX 05/800 - A01, A02, B01, B02 delivery 2 - 3 weeks delivery 3 - 4 weeks - On request
OPEN RX 05/800 - A01, A02, B01, B02 delivery 1 - 2 weeks delivery 2 - 3 weeks On request -
RX 08/400 - A01, A02, B01, B02 delivery 2 - 3 weeks delivery 3 - 4 weeks - On request
OPEN RX 08/400 - A01, A02, B01, B02 delivery 1 - 2 weeks delivery 2 - 3 weeks On request -
delivery 1 - 2 weeks delivery 2 - 3 weeks On request - Price action
OPEN RX 08/700 - A01, A02, B01, B02 delivery 1 - 2 weeks delivery 2 - 3 weeks On request -
RX 11/440 - A01, A02, B01, B02 delivery 2 - 3 weeks delivery 3 - 4 weeks - On request
RX 11/880 - A01, A02, B01, B02 delivery 2 - 3 weeks delivery 3 - 4 weeks - On request
OPEN RX 11/880 - A01, A02, B01, B02 delivery 1 - 2 weeks delivery 2 - 3 weeks -

RECUBOXES® are manufactured entirely in the Czech Republic. as custom production based on the exact specifications provided by our customers.

High quality is guaranteed by the use of the highest quality materials from the German manufacturer SIMONA AG in combination with processing using Swiss Leister AG equipment.

We present you a smart solution for a heat recovery system with easy removal of the EUROVENT certified heat recovery exchanger and endless variability of the resulting ventilation system (unlike heat recovery units, the fans are placed
separately into the pipeline, as well as other additional accessories. Thanks to this, the system guarantees a long service life with easy replacement of individual components, unlimited expandability and system upgrades at a minimum price)

  • available with installed RX 08/700 exchanger (lamella material is aluminum and exchanger casing is also aluminum)

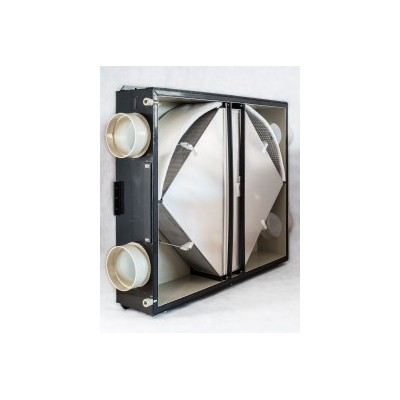

rekupex recubox recuperation unit REMOVING THE HEAT EXCHANGER FROM THE RECUBOX is very simple, literally in one go.

max hygiene.png

 MAXIMUM HYGIENE is guaranteed thanks to the possibility of removing the exchanger and washing both the exchanger itself and the entire unit. The exchanger is certified by ILH Berlin with a hygiene certificate and the RECUBOX material is certified for food storage and use in the healthcare sector
consolation.png THE EXCHANGER SEALING in the RECUBOX is done by sealing into the groove without the use of adhesives or adhesive sealing, which degrades over time. This makes removing the exchanger and reinserting it completely simple. The seal can be easily replaced if necessary.
NO SCREWS, RIVETS OR GLUE - RECUBOX is made from one type of material using hot gas welding technology . This ensures absolutely tight joints without degradation due to aging , unlike other joints of different types of materials.
sizes.png THE SIZE RANGE is so wide that we are able to find a suitable size even for the most shaded spaces. RECUBOX with the required air volume flow.
designed.png RECUBOXY OPEN are designed for the complete production line of EUROVENT certified RX, RX-P and RSX-P exchangers
power%20range.png THE OUTPUT RANGE is from 50 to X,000 m3/hour.

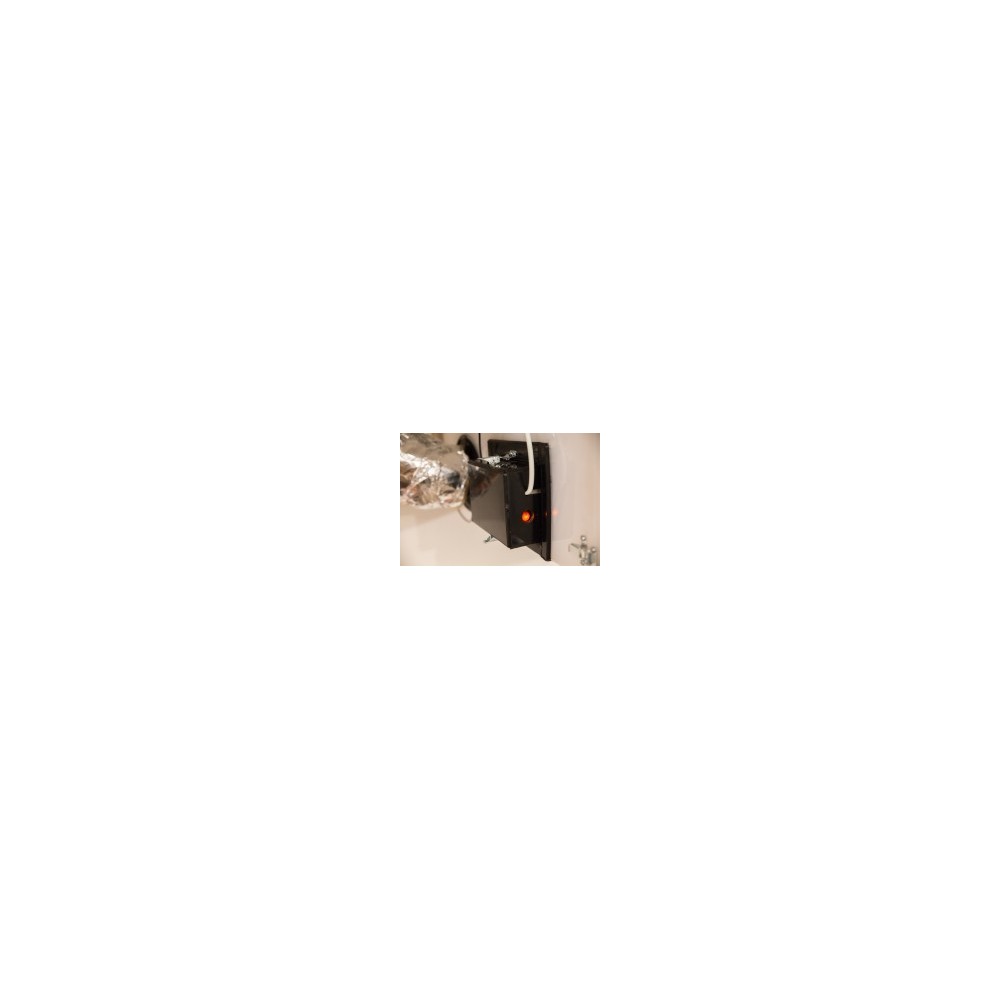

POSSIBILITY OF SIMPLE CONNECTION OF THE MALAPA IN03 IONIZER
ENDLESS VARIABILITY of placement of inlet and outlet nozzles in any dimensions
MIRROR USE is possible for all variants. The condensate drain is secured with a 1/2" diameter screw connection and is fitted in 2 places
location.png INSTALLATION is easy thanks to mounting holes for threaded rods

LARGE AREA FILTERS for the use of any filter fabric, which is easily replaceable. The unit is basically equipped with filter fabrics of filtration class M5.
bypass.png BY-PASS is available as a short-circuit part or integrated
with preparation for manual or servo control. By-pass shaft diameter is 14 mm


2 heat recovery unit casings

RECUBOX can be ordered either without thermal INSULATION or with 30 and 50 mm insulation.

It is essential that the insulation is hermetically sealed between two shells. So if you order an insulated RECUBOX, you will also receive an additional 5 mm thick PP shell in addition to the insulation.

An exchanger of these dimensions can be removed from the RECUBOX® quite easily, thanks to the sophisticated method of sealing with spacer profiles.

Sealing and removing the exchanger - cores

RECUBOX OPEN CONNECTION DIAGRAM IN A FAMILY HOUSE

schema%20recuperation%20dum%20-%20recubox%20open.png" alt="schema recuperation dum - recubox open.png" width="500" height="442" />

VIDEO PRESENTATION OF RECUBOX - WITHOUT ACCESS DOOR:

RECUBOX VIDEO PRESENTATION REKUPEX

OPTIONS FOR CONNECTION PORT LOCATION - CHOICE DURING THE ORDERING PROCESS

FRONT VIEW OF RECUBOX WITH DOOR OPEN

DIMENSIONS ARE WITHOUT INSULATION, THERE IS A NEED TO ADD IT - if the dimensions should change significantly due to larger connection sockets or other factors, we will inform you after ordering
A01

A01

WIDE TRAY HEAT EXCHANGER, 4 PORTS ON THE SIDE

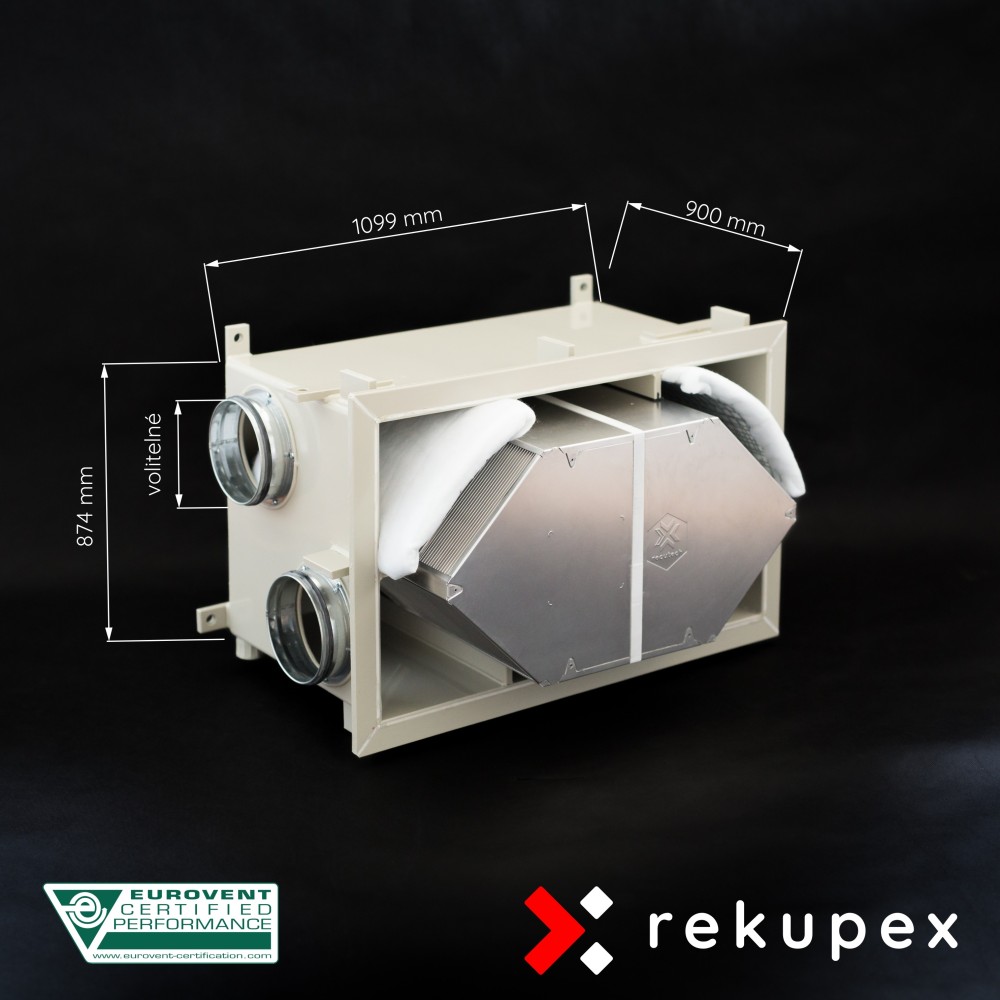

Dimensions: 1099 (A) x 874 (B) x 900 (C) mm - width x height x depth

B01

B01

NARROW TRAY HEAT EXCHANGER, 4 PORTS ON THE SIDE

Dimensions: 1099 (B) x 874 (A) x 900 (C) mm - height x width x depth

A02

A02

WIDE TRAY HEAT EXCHANGER, 2 CONNECTIONS UP, 2 CONNECTIONS SIDEWAYS

Dimensions: 1099 (A) x 874 (B) x 900 (C) mm - width x height x depth

B02

B02

NARROW TRAY HEAT EXCHANGER , 2 CONNECTIONS UP, 2 CONNECTIONS SIDEWAYS

Dimensions: 1099 (B) x 874 (A) x 900 (C) mm - height x width x depth

SERVICE ACCESS AND BY-PASS DIMENSIONS

SERVICE ACCESS - dimension E

A minimum space corresponding to the length of the exchanger must be provided in front of the recubox door so that the exchanger can be removed from the recubox without any problems.

E = C - 60 [mm]

INTEGRATED BY-PASS - dimension F

The integrated by-pass is located “behind the exchanger” and increases the recubox by 1/3 of the depth.


F = 1/3 x C [mm]

The BY-PASS damper is controlled by a ⌀ 14 mm shaft for connecting a servo drive (min. 2 Nm). The BY-PASS is open on the right. A lever for manual operation is installed on the shaft.

BY-PASS opens the fresh air bypass around the exchanger with almost zero pressure loss.

Opening the BY-PASS does not close the passage through the exchanger, but thanks to the open BY-PASS, the amount of fresh air passing through the exchanger is minimized.

COMPLETE INFORMATION ABOUT THE INTEGRATED EXCHANGER (option when ordering):

heat-exchanger-rx-08700-counterflow-heat-air-recuperator-for-air-recovery.html" target="_blank" class="btn btn-default" rel="noreferrer noopener"> RX 08/700 - DETAIL LINK

PRICES ARE FINAL INCLUDING THE INTEGRATED EXCHANGER, ALL COSTS, TAXES AND FEES.

Data sheet

Warranty length
36 months
EUROVENT certification:
YES (exchanger)
Shell material
PP-H
Maximum differential pressure between intake and exhaust [Pa]:
800
Highest efficiency at output [m3/hour]:
0 - 2500 (depending on the exchanger)
Diameter [mm]
From 90 to (optional)
Heat exchanger dimensions [mm]:
899 x 674 x 700
Dimensions lxwxh [mm]:
1099 x 874 x 900
Thickness of casing material [mm]:
5 and 10
Temperature of transported air with AL exchanger [°C]:
From -40 to +80
Insulation thickness [mm]:
30 or 50mm
Thermal conductivity coefficient of the insulation material [W/mK]:
0.036
Filter area 1 [mm]
601 x 900
Removable exchanger
