ENTHALPIC RECUBOX® OPEN EX 03/500 - 700 m3/h. (removable exchanger in the casing, recovery box, air recovery)
Made in the Czech Republic ...
Highly efficient ENTHALPIC removable exchanger RECUTECH .....
Output up to 700 m3/hour .....
M5 filters with minimized replacement costs...
RECUBOXES® are manufactured entirely in the Czech Republic. as custom production based on the exact specifications provided by our customers.
High quality is guaranteed by the use of the highest quality materials from the German manufacturer SIMONA AG in combination with processing using Swiss Leister AG equipment.
We present you a smart solution for a heat recovery system with endless variability of the resulting ventilation system (unlike heat recovery units, fans are placed
separately into the pipeline, as well as other additional accessories. Thanks to this, the system guarantees a long service life with easy replacement of individual components, unlimited expandability and system upgrades at a minimum price)
MAIN ADVANTAGES OF RECUBOXES®: |

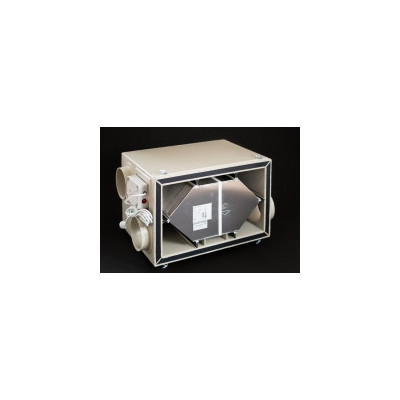

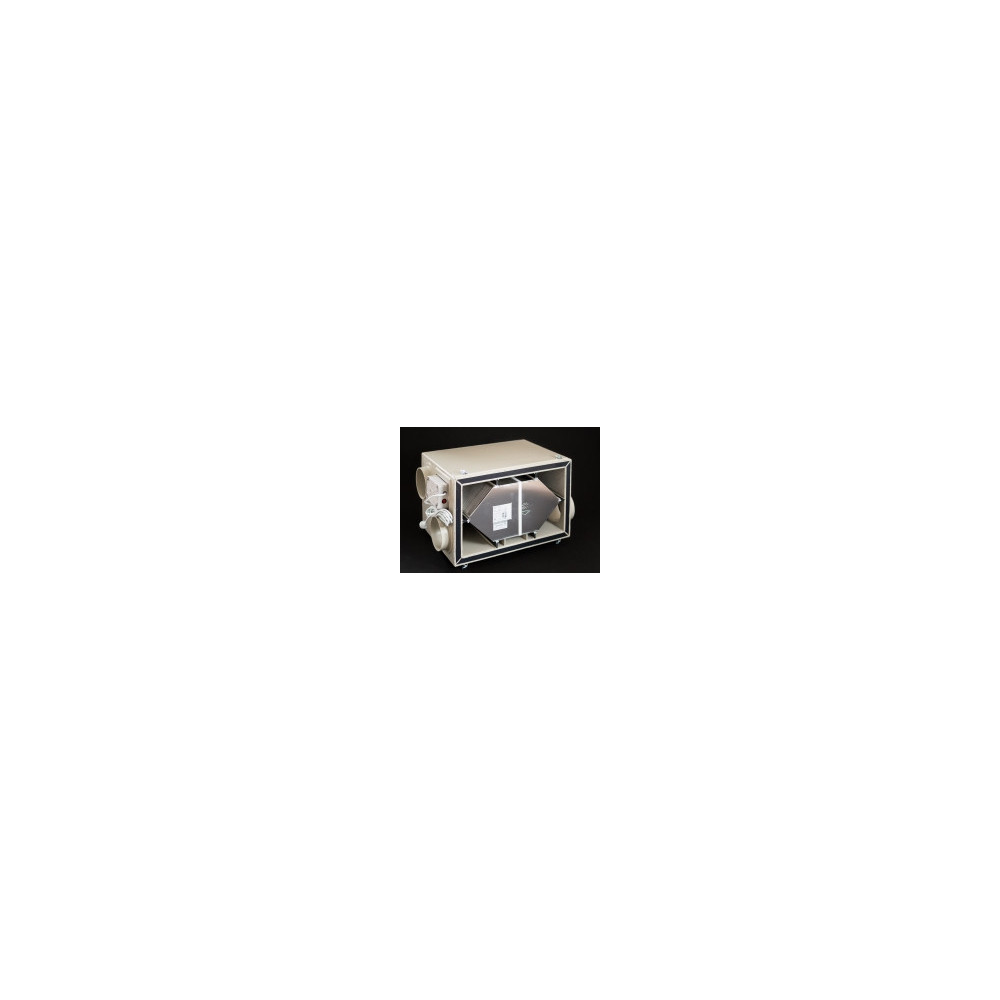

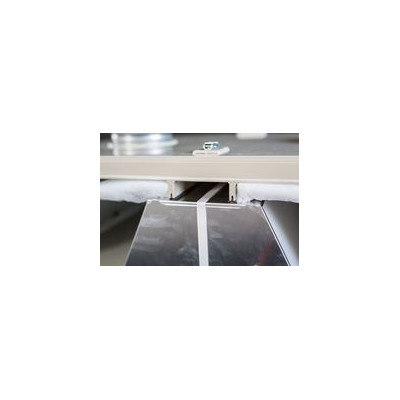

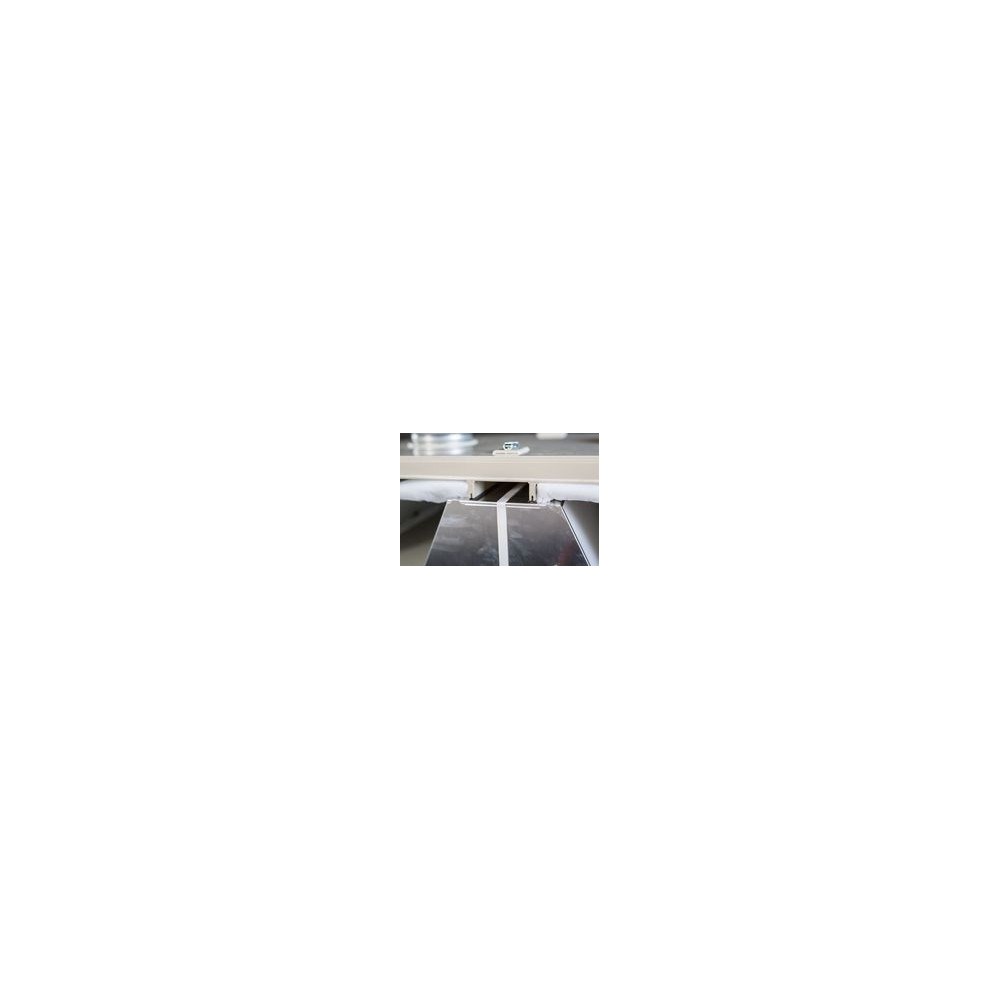

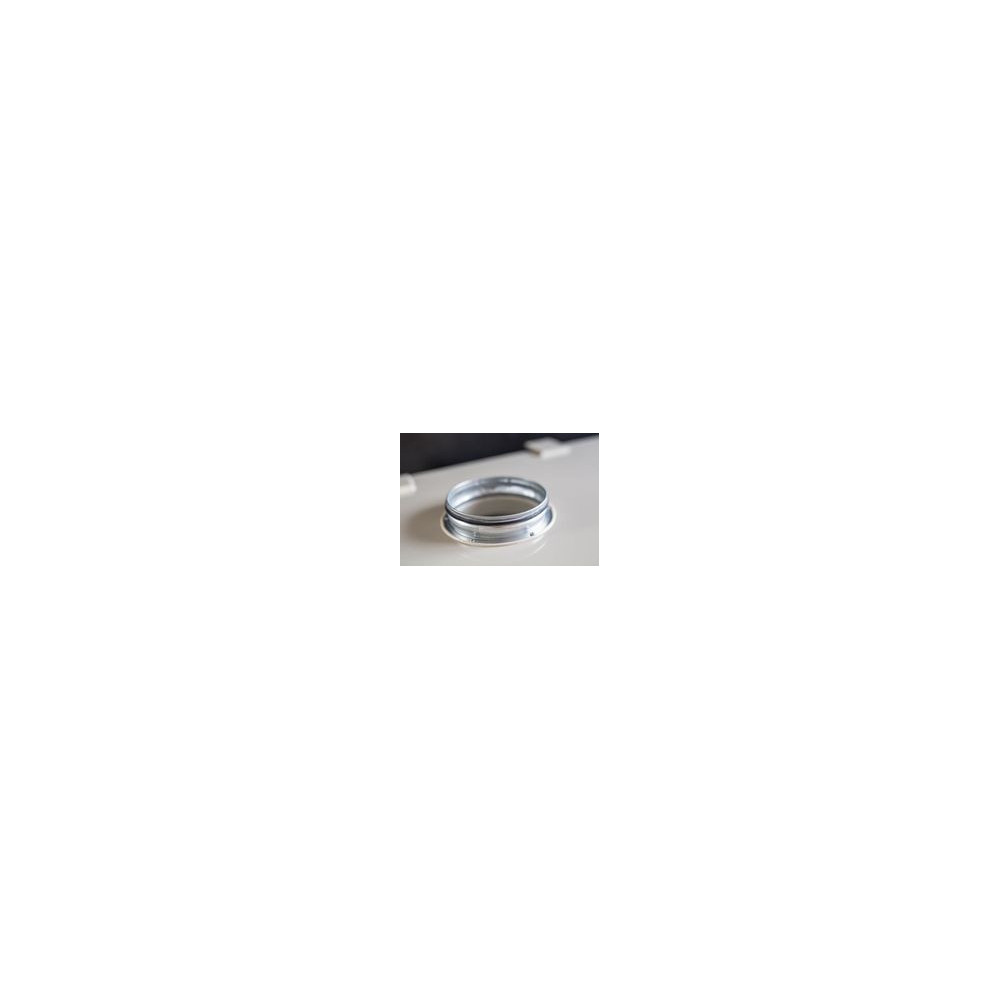

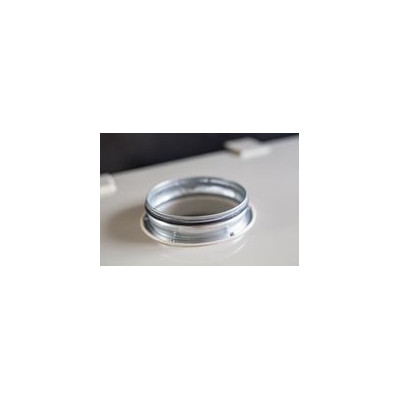

| REMOVING THE HEAT EXCHANGER FROM THE RECUBOX is very simple, literally in one go. |
| MAXIMUM HYGIENE is guaranteed thanks to the possibility of removing the exchanger and washing both the exchanger itself and the entire unit. The exchanger is certified by ILH Berlin with a hygiene certificate and the RECUBOX material is certified for food storage and use in the healthcare sector |
| THE EXCHANGER SEALING in the RECUBOX is done by sealing into the groove without the use of adhesives or adhesive sealing, which degrades over time. This makes removing the exchanger and reinserting it completely simple. The seal can be easily replaced if necessary. |
| NO SCREWS, RIVETS OR GLUE - RECUBOX is made from one type of material using hot gas welding technology . This ensures absolutely tight joints without degradation due to aging , unlike other joints of different types of materials. |
| THE SIZE RANGE is so wide that we are able to find a suitable RECUBOX with the necessary air flow volume even for the most shaded spaces. |
| RECUBOXY OPEN are designed for the complete production line of EUROVENT certified RX, RX-P and RSX-P exchangers |
g" width="39" height="40" style="margin-left:auto;margin-right:auto;" /> | THE OUTPUT RANGE is from 50 to X,000 m3/hour. |
| POSSIBILITY OF SIMPLE CONNECTION OF THE MALAPA IN03 IONIZER |
| ENDLESS VARIABILITY of placement of inlet and outlet nozzles in any dimensions |
| MIRROR USE is possible for all variants. The condensate drain is secured with a 1/2" diameter screw connection and is fitted in 2 places |
|
INSTALLATION is easy thanks to mounting holes for threaded rods |
|
LARGE AREA FILTERS for the use of any filter fabric, which is easily replaceable. The unit is basically equipped with filter fabrics of filtration class M5. |
| BY-PASS is available as a short-circuit part or integrated with preparation for manual or servo control. The diameter of the by-pass shaft is 14 mm |
 | RECUBOX can be ordered either without thermal INSULATION or with 30 and 50 mm insulation. It is essential that the insulation is hermetically sealed between two shells. So if you order an insulated RECUBOX, you will also receive an additional 5 mm thick PP shell in addition to the insulation. |

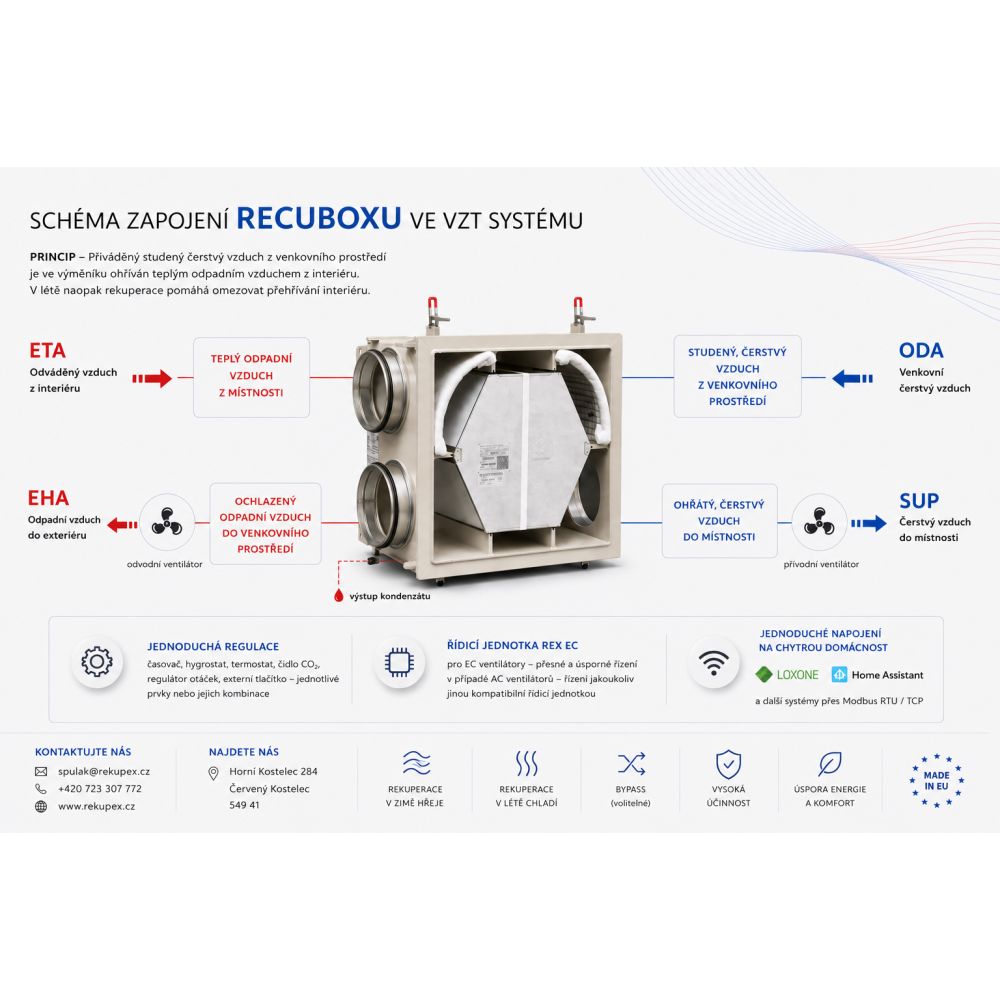

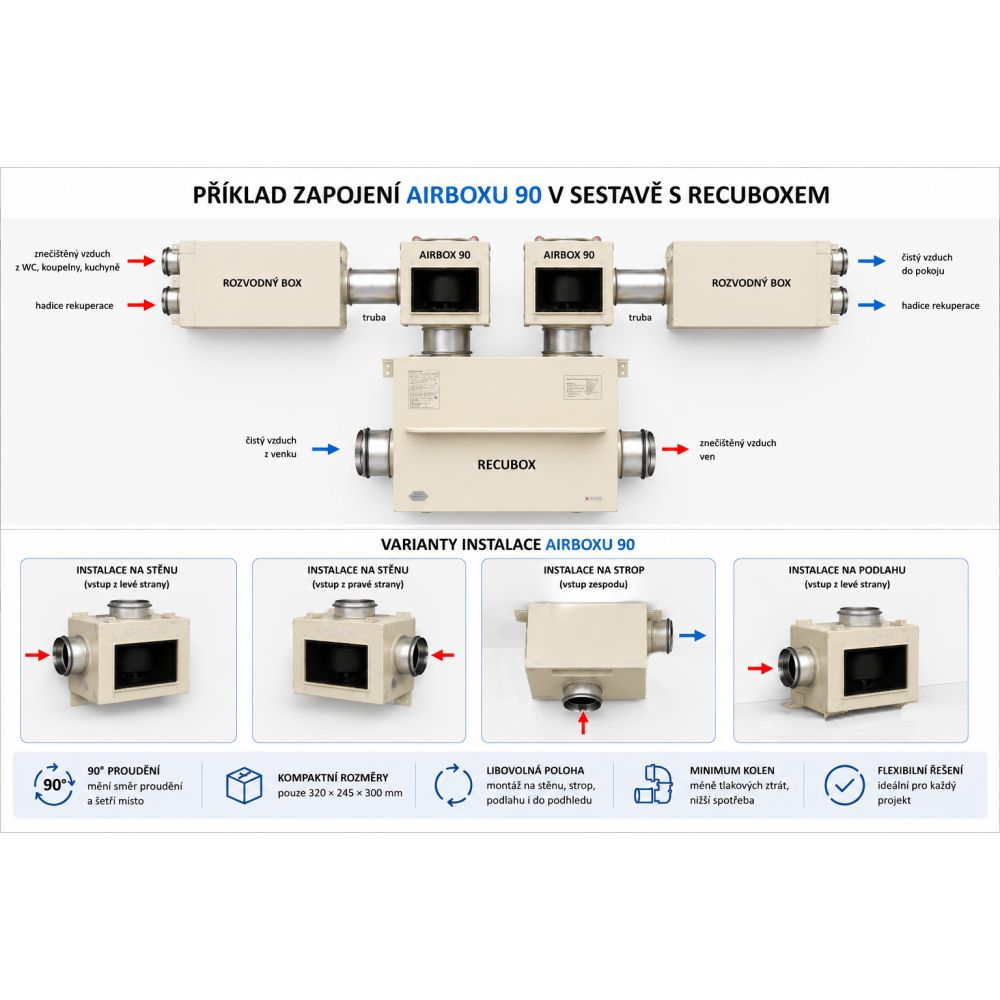

RECUBOX OPEN CONNECTION DIAGRAM IN A FAMILY HOUSE

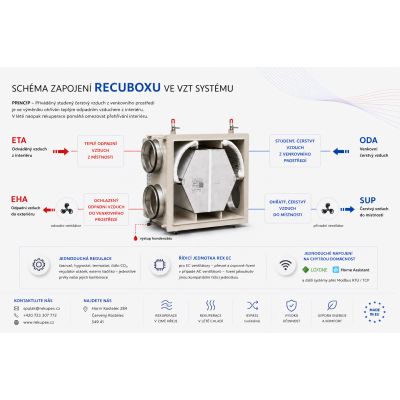

WIRING DIAGRAM WITH REX EC CONTROL AND EC FANS
width="500" height="583" />
VIDEO PRESENTATION OF RECUBOX - WITHOUT ACCESS DOOR:
INFORMATION ABOUT THE INSTALLED COUNTER-FLOW ENTHALPIC EXCHANGER:
The RFK+ / RFC+ series is a fully enthalpic alternative to the RSF+ counterflow aluminum heat exchangers, which thanks to innovative technology offers not only up to 90% thermal efficiency but also very high humidity efficiency. Thanks to the same dimensions, it is also easy to replace the aluminum and plastic heat exchanger without further modifications in the heat recovery unit.
- Thermal efficiency up to 90%
- Latent efficiency up to 75%
- High resistance to unbalanced pressure
- High selective permeability
- Unique METALPIC material
- Highest thermal efficiency of all enthalpy products on the market
- High humidity efficiency
- Maximum inlet/outlet pressure difference of 800 Pa outperforms other enthalpy products with polymer-based membrane
- Condensation reduction and significant freezing point reduction
- Permeation of only water vapor through a highly selective permeable membrane
- Guaranteed tightness thanks to 100% production testing
- Use with standard units thanks to standardized dimensions
- Eurovent certification, hygiene certification according to VDI 6022 and reaction to fire classification according to EN 13501-1
img src="https://www.rekupex.cz/img/cms/QMS.jpg" alt="" width="34" height="34" style="border-style:none;vertical-align:middle;height:auto;" />
Graph of dependence of pressure loss - PD [Pa] on volume flow AV [m3/h] - RECUTECH RFK+16-500-28 exchanger
Parameters for the winter period according to the EUROVENT organization
indoor/outdoor air ratio 1:1, outdoor air temperature -3°C and relative humidity 90%, indoor air temperature 25°C and relative humidity 60%, results from calculation software certified by the European company Eurovent
Graph of the dependence of efficiency EFF [%] on the volume flow AV [m3/h] - RECUTECH RFK+16-500-28 exchanger
Parameters for the average winter period in the Czech Republic
indoor/outdoor air ratio 1:1, outdoor air temperature -3°C and relative humidity 90%, indoor air temperature 25°C and relative humidity 60%, results from calculation software certified by the European company Eurovent
Graph of the dependence of efficiency EFF [%] on relative humidity RH [%] - RECUTECH RFK+16-500-28 exchanger
Parameters for the average winter period in the Czech Republic
indoor/outdoor air ratio 1:1, outdoor air temperature -3°C and relative humidity 90%, indoor air temperature 25°C and relative humidity 60%, results from calculation software certified by the European company Eurovent
OPTIONS FOR CONNECTION PORT LOCATION - CHOICE DURING THE ORDERING PROCESS FRONT VIEW OF RECUBOX WITH DOOR OPEN DIMENSIONS ARE WITHOUT INSULATION, ADDITIONAL INFORMATION IS NEEDED - if the dimensions should change significantly due to larger connection sockets or other factors, We will inform you after ordering. | |

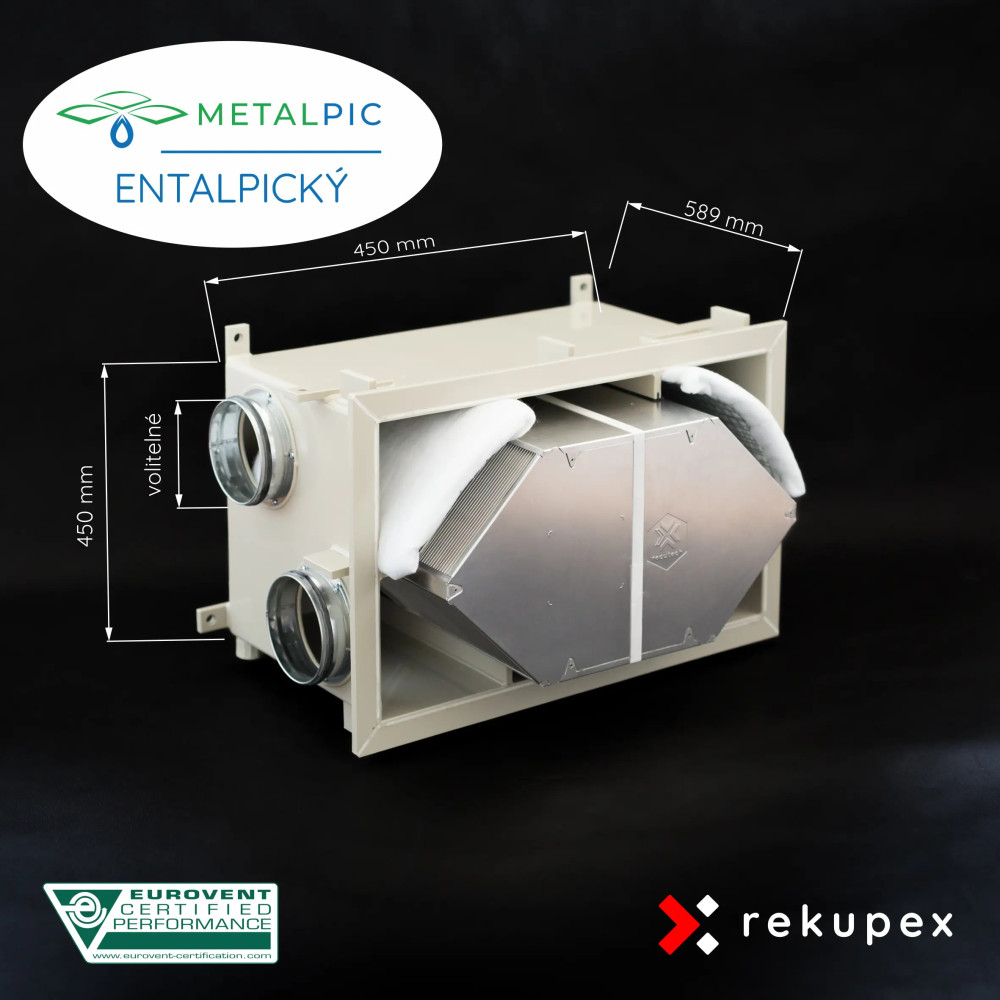

 | A01 WIDE TRAY HEAT EXCHANGER, 4 PORTS ON THE SIDE Dimensions: 450 (A) x 450 (B) x 589 (C) mm - width x height x depth The drawing shows classic and mirrored connections (available for all RECUBOX® without any conversion) |
| B01 NARROW TRAY HEAT EXCHANGER, 4 PORTS ON THE SIDE Dimensions: 450 (B) x 450 (A) x 589 (C) mm - height x width x depth The drawing shows classic and mirrored connections (available for all RECUBOX® without any conversion) |
| A02 WIDE TRAY HEAT EXCHANGER, 2 CONNECTIONS UP, 2 CONNECTIONS SIDEWAYS Dimensions: 450 (A) x 450 (B) x 589 (C) mm - width x height x depth The drawing shows the classic and mirror connections (available in all RECUBOX® without any conversion) |
| B02 NARROW TRAY HEAT EXCHANGER , 2 CONNECTIONS UP, 2 CONNECTIONS SIDEWAYS Dimensions: 450 (B) x 450 (A) x 589 (C) mm - height x width x depth The drawing shows classic and mirrored connections (available for all RECUBOX® without any conversion) |
 | C01 NARROW TRAY HEAT EXCHANGER , 4 PORTS UP Dimensions: 520 (A) x 749 (C) x 490 (B) mm - width x depth x height (the larger dimensions of the RECUBOX® are due to proper airflow; if it is impossible to fit the nozzles, you will be informed about a possible alternative solution) |
| SERVICE ACCESS AND BY-PASS DIMENSIONS | |
 | SERVICE ACCESS - dimension E A minimum space corresponding to the length of the exchanger must be provided in front of the recubox door so that the exchanger can be removed from the recubox without any problems. E = C - 60 [mm] INTEGRATED BY-PASS - dimension F The integrated by-pass is located “behind the exchanger” and increases the recubox by 1/3 of the depth.
BY-PASS opens the fresh air bypass around the exchanger with almost zero pressure loss. Opening the BY-PASS does not close the passage through the exchanger, but thanks to the open BY-PASS, the amount of fresh air passing through the exchanger is minimized. |
PRICES ARE FINAL INCLUDING THE INTEGRATED EXCHANGER, ALL COSTS, TAXES AND FEES.
Data sheet
- Warranty length
- 36 m.
- Maximum differential pressure between intake and exhaust [Pa]:
- 600
- Highest efficiency at output [m3/hour]:
- 0 - 700
- Diameter [mm]
- 90 - 200
- Heat exchanger dimensions [mm]:
- 366 x 366 x 500
- Thickness of casing material [mm]:
- 5, 10
- Operating temperature [°C]
- min. -40, max. +80
- Thermal conductivity coefficient of the insulation material [W/mK]:
- 0,036
- Country of origin
- Czech Republic
- Removable exchanger
- YES
- Enthalpy exchanger
- YES
