We offer a wide range of enthalpy exchangers suitable for most heat recovery units. If you can't find the right model, don't hesitate to contact us – we will be happy to help!
Made in the Czech Republic ....
Removable exchanger .....
Equipped with an RX 02/200 or RX-P 02/200 exchanger ....
Output: 50 - 210 m3/hour ....

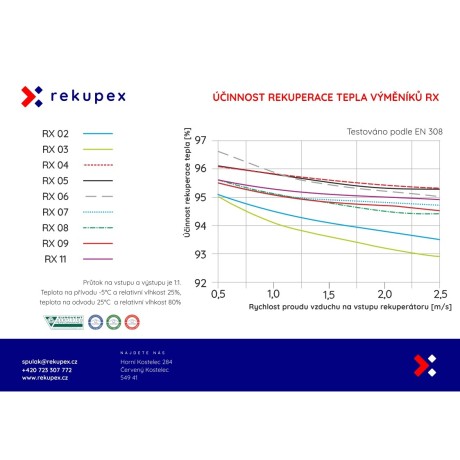

Certified efficiency up to 96% ...
M5 filters...

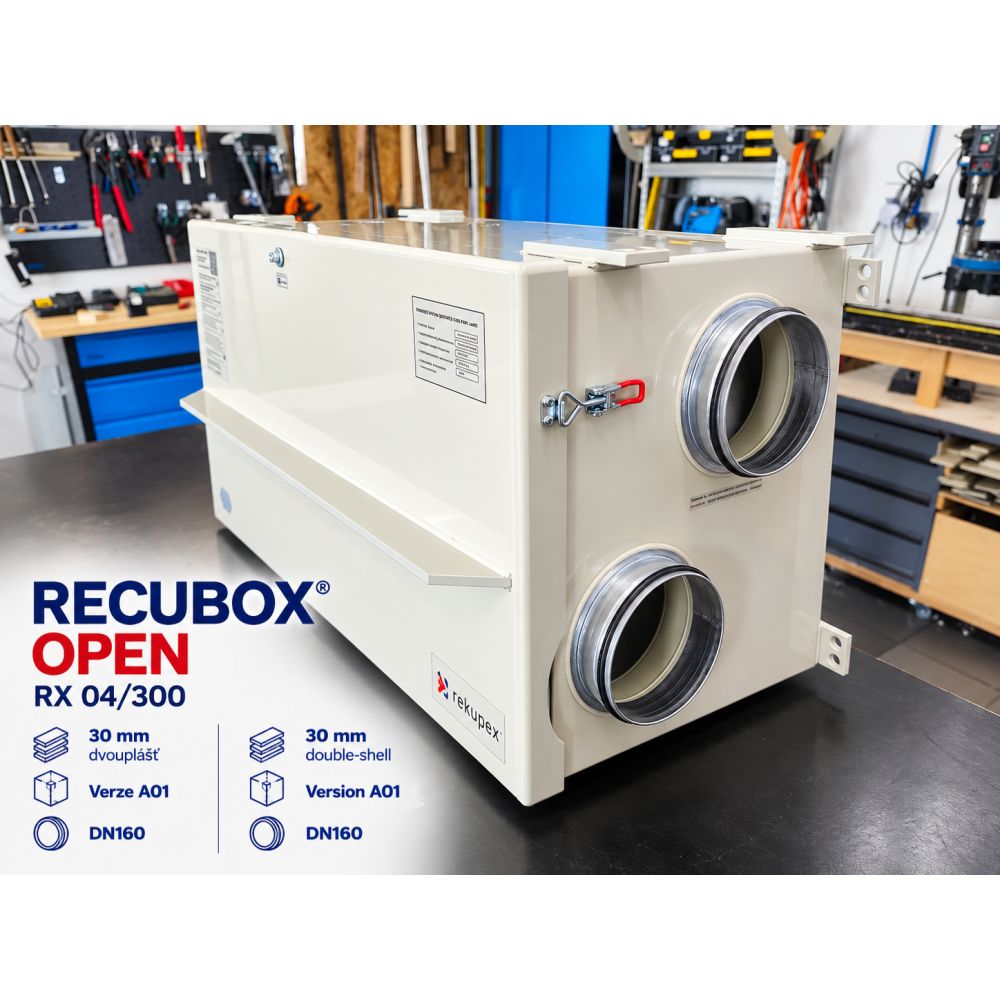

RECUBOX® production takes place entirely in the Czech Republic and is carried out as custom manufacturing based on precise specifications provided by our customers.
We present to you a smart ventilation recovery solution with easy removal of the EUROVENT-certified heat exchanger and endless variability of the resulting ventilation system (unlike compact ventilation units, fans are installed separately in the ductwork, as well as other additional accessories.
Thanks to this, the system guarantees long service life, simple replacement of individual components, unlimited expandability and system upgrades at minimal cost.)
Available in 4 exchanger variants:
PLASTIC:
Premium heat exchanger RECUTECH REP+17-200-H-F-30 = (RekupeX RX-P 02/200)
Excellent alternative: ZERN ENGINEERING HU-EX6 170/200-1
ALUMINUM:
Premium heat exchanger RECUTECH REK+17-200-22 = (RekupeX RX 02/200)
Premium enthalpy heat exchanger RECUTECH RFK+17-200-25
 |
REMOVING THE HEAT EXCHANGER FROM THE RECUBOX is very simple, literally in one go. |
|
|
MAXIMUM HYGIENE is guaranteed thanks to the possibility of removing the exchanger and washing both the exchanger itself and the entire unit. The exchanger is certified by ILH Berlin with a hygiene certificate and the RECUBOX material is certified for food storage and use in the healthcare sector |
 |

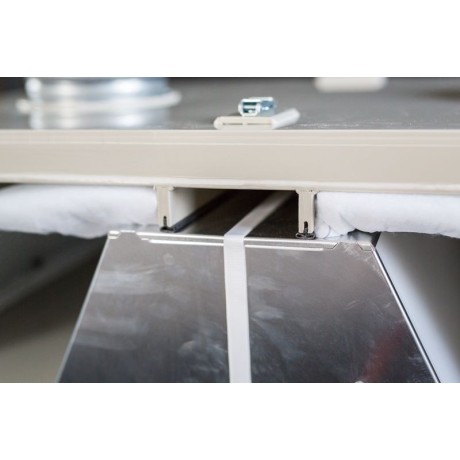

THE EXCHANGER SEALING in the RECUBOX is done by sealing into the groove without the use of adhesives or adhesive sealing, which degrades over time. This makes removing the exchanger and reinserting it completely simple. The seal can be easily replaced if necessary. |
 |
NO SCREWS, RIVETS OR GLUE - RECUBOX is made from one type of material using hot gas welding technology . This ensures absolutely tight joints without degradation due to aging , unlike other joints of different types of materials. |
| i.png" width="30" height="30" /> | THE SIZE RANGE is so wide that we are able to find a suitable RECUBOX with the necessary air flow volume even for the most shaded spaces. |
 |
RECUBOXY OPEN are designed for the complete production line of EUROVENT certified RX, RX-P and RSX-P exchangers |
 |
THE OUTPUT RANGE is from 50 to X,000 m3/hour. |
 |
POSSIBILITY OF SIMPLE CONNECTION OF THE MALAPA IN03 IONIZER |
 |

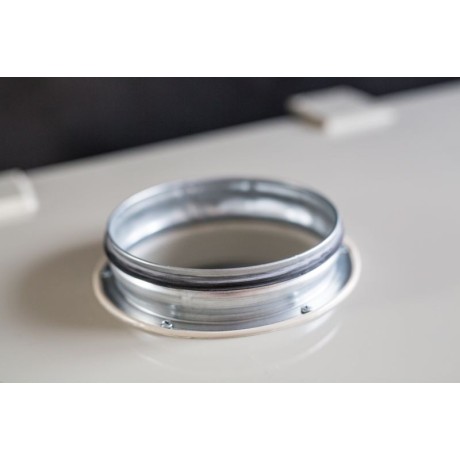

ENDLESS VARIABILITY of placement of inlet and outlet nozzles in any dimensions |
 |
MIRROR USE is possible for all variants. The condensate drain is secured with a 1/2" diameter screw connection and is fitted in 2 places |
 |
INSTALLATION is easy thanks to mounting holes for threaded rods |
 |
LARGE AREA FILTERS for the use of any filter fabric, which is easily replaceable. The unit is basically equipped with filter fabrics of filtration class M5. |
 |
BY-PASS is available as a short-circuit part or integrated with preparation for manual or servo control. By-pass shaft diameter is 14 mm |
 |
RECUBOX can be ordered either without thermal INSULATION or with 30 and 50 mm insulation. It is essential that the insulation is hermetically sealed between two shells. So if you order an insulated RECUBOX, you will also receive an additional 5 mm thick PP shell in addition to the insulation. |

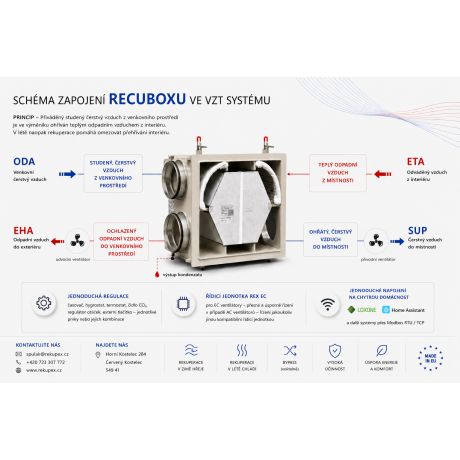

RECUBOX OPEN CONNECTION DIAGRAM IN A FAMILY HOUSE
VIDEO PRESENTATION OF RECUBOX - WITHOUT ACCESS DOOR:
p>
|
|||
 |

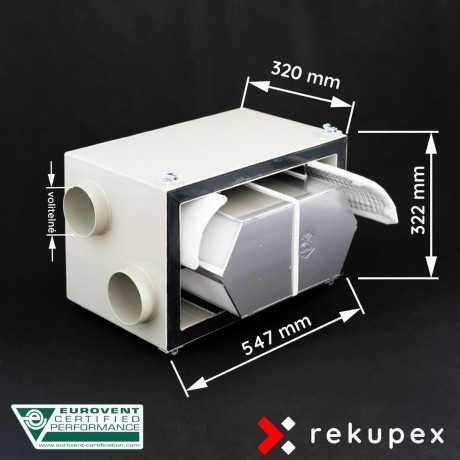

A01 WIDE TRAY HEAT EXCHANGER, 4 PORTS ON THE SIDE Dimensions: 547 (A) x 322 (B) x 320 (C) mm - width x height x depth |
||
|
|
B01 NARROW TRAY HEAT EXCHANGER, 4 PORTS ON THE SIDE Dimensions: 547 (B) x 322 (A) x 320 (C) mm - height x width x depth |
||
|
|
A02 WIDE TRAY HEAT EXCHANGER, 2 CONNECTIONS UP, 2 CONNECTIONS SIDEWAYS Dimensions: 547 (A) x 322 (B) x 320 (C) mm - width x height x depth |
||
|
|
B02 NARROW TRAY HEAT EXCHANGER , 2 CONNECTIONS UP, 2 CONNECTIONS SIDEWAYS Dimensions: 547 (B) x 322 (A) x 320 (C) mm - height x width x depth |
||
| SERVICE ACCESS AND BY-PASS DIMENSIONS | |
 |
SERVICE ACCESS - dimension E A minimum space corresponding to the length of the exchanger must be provided in front of the recubox door so that the exchanger can be removed from the recubox without any problems. E = C - 60 [mm] INTEGRATED BY-PASS - dimension F The integrated by-pass is located "behind the exchanger" and increases the recubox by 1/3 of the depth.
The BY-PASS damper is controlled by a ⌀ 14 mm shaft for connecting a servo drive (min. 2 Nm). The BY-PASS is open on the right. A lever for manual operation is installed on the shaft. BY-PASS opens the fresh air bypass around the exchanger with almost zero pressure loss. Opening the BY-PASS does not close the passage through the exchanger, but thanks to the open BY-PASS, the amount of fresh air passing through the exchanger is minimized. |
COMPLETE INFORMATION ABOUT THE INTEGRATED EXCHANGER (option when ordering):
PRICES ARE FINAL INCLUDING THE INTEGRATED EXCHANGER, ALL COSTS, TAXES AND FEES.
Data sheet
Read verified reviews from those who have purchased from us.
Modern EC fan ...... Max. output 430 m3/h ..... Connection diameter 125 mm ..... 0 - 10 V control .....
Connection diameter 125 mm Max. output 355 m3/h.
