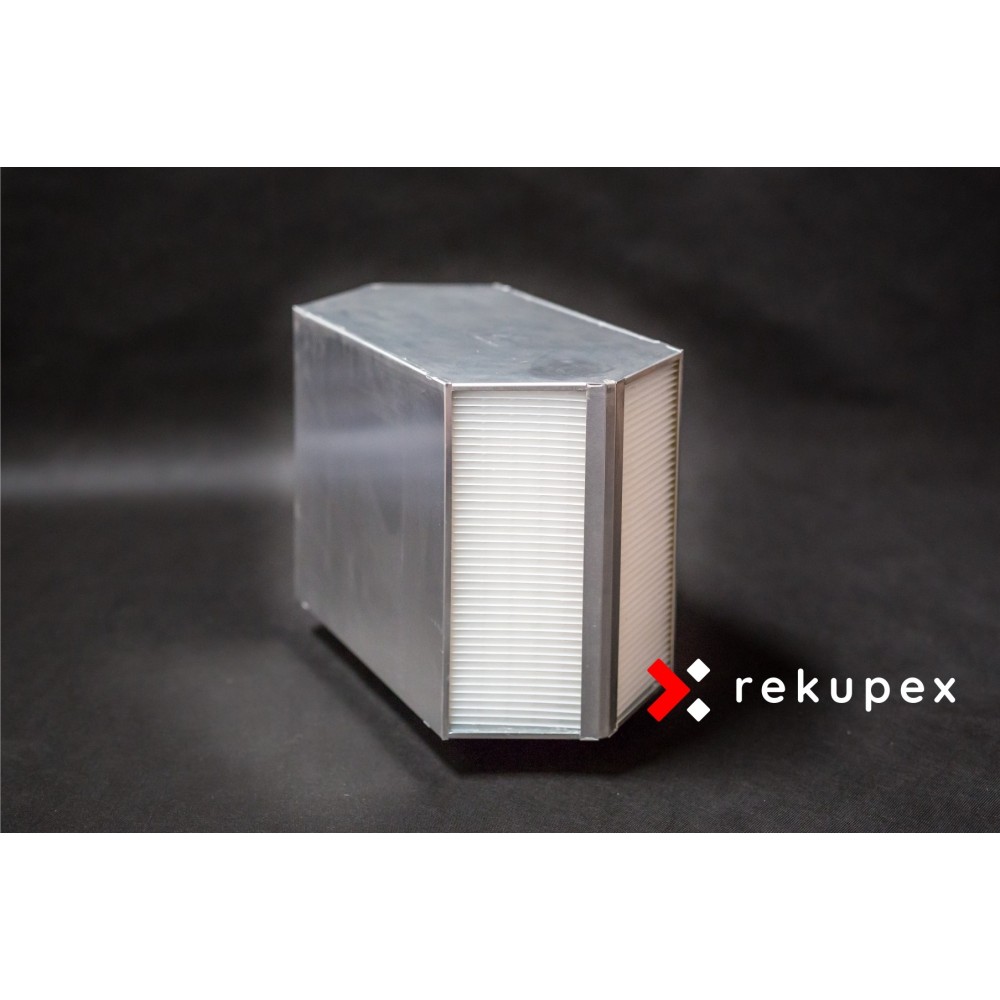

Recuperation heat exchanger RSX-P 06/300 (counter-flow hot air recuperator for air recovery)
Flow rate 230m3/hour - Efficiency 94.6% ....
Flow rate 80m3/hour - Efficiency 95.8% ....
Dimensions: 461 x 232 x 300 mm ....
Weight: 4.00kg ....
Material: plastic (HPS - high impact polystyrene)
RX, RX-P and RSX-P are modern counter-flow exchangers with fins made of durable aluminum and plastic. The counter-flow exchanger is the successor to the less
efficient cross-flow exchanger. The counter-flow exchanger does not transmit moisture or odors. Its efficiency exceeds 95%.
It is thanks to these properties, together with the tested tightness of each manufactured piece, that it finds its use both in heat recovery units of passive houses and in industrial applications.
- Efficiency up to over 95%
- Lower pressure losses compared to similar products on the market
- Each exchanger tested for 100% tightness
- New slat geometry
- Ideal for residential units
- HPS ultrasonically welded slats
- Easy handling, thanks to handling straps
- Parameters ensuring high SEC calculation value
- Ideal for residential units
- Eurovent, QMS, OHMS, EMS certification
Exchanger parameters at: indoor/outdoor air ratio 1:1, outdoor air temperature -5°C and relative humidity 25%, indoor air temperature 25°C and relative humidity 80%, results from calculation software certified by the European company Eurovent
- Flow rate 80m3/hour - Efficiency 95.8% - Frontal velocity 0.5 m/s - Pressure loss - inlet - 26.2 Pa, outlet - 56.4 Pa
- Flow rate 230m3/hour - Efficiency 94.6% - Frontal velocity 1.5 m/s - Pressure loss - inlet - 163.3 Pa, outlet - 160.9 Pa
Upon request, we will send you complete exchanger parameters and resulting values by e-mail in the form of parameter sheets in .pdf format, under your desired conditions (humidity, temperature, air volume flow).
Graph of pressure loss - PD [Pa] versus volume flow AV [m3/h] - RSX-P 06/300 heat exchanger
Parameters for the average winter period in the Czech Republic
indoor/outdoor air ratio 1:1, outdoor air temperature 1°C and relative humidity 78%, indoor air temperature 25°C and relative humidity 28%, results from calculation software certified by the European company Eurovent
Graph of the dependence of efficiency EFF [%] on the volume flow AV [m3/h] - exchanger RSX-P 06/300
Parameters for the average winter period in the Czech Republic
indoor/outdoor air ratio 1:1, outdoor air temperature 1°C and relative humidity 78%, indoor air temperature 25°C and relative humidity 28%, results from calculation software certified by the European company Eurovent
The heat recovery exchanger can be installed in any position in the unit (cabinet, box).
 | Installation on a narrow bathtub ce. Recommended slope of 3° to the waste heat outlet for good condensate drainage. |
 | Installation on the front surface Recommended slope of 5° to the waste heat outlet for good condensate drainage. |
 | Installation on a narrow tray This position is only possible if the entire weight of the exchanger does not rest on a narrow tray. |
Thanks to the precise processing of the exchanger dimensions, their mutual combination is possible to increase efficiency and maximum air flow.
The fins of the entire RX heat exchanger range are equipped with double-flange technology, achieving the best tightness on the market.
In order to respond to your orders as quickly as possible, we keep the most popular exchangers in stock in larger quantities.

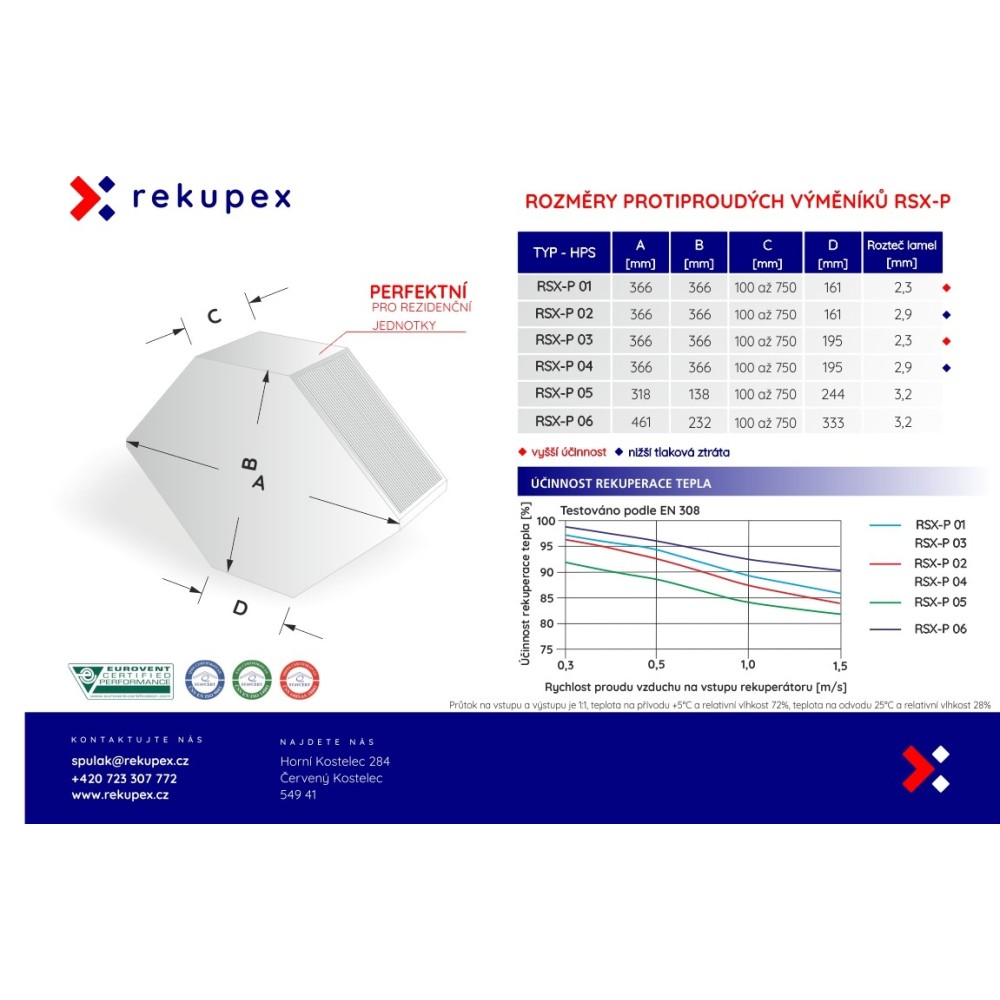

If you do not choose from our offer in the e-shop, there is no problem for us to price you any exchanger according to the table below.
Data sheet
- Warranty length
- 36 months
- EUROVENT certification:
- YES
- Slat material:
- Plastic (HPS - high impact polystyrene)
- Sheathing material:
- Aluminum
- Highest efficiency at output [m3/hour]:
- 0 - 230
- Dimensions lxwxh [mm]:
- 461 x 232 x 300
- Blade spacing [mm]:
- 3.2
- Weight [kg]:
- 4.00
- Operating temperature [°C]
- -20 to +60
