The basis for high-tech recuperation.
The enthalpic RECUBOX® 360 VENT-READY is ready for easy installation
top-of-the-line AFL EC fans with CONSTANTFLOW system

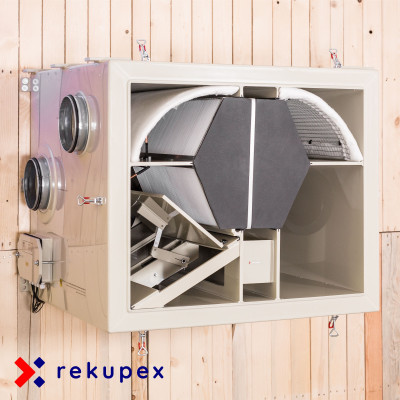

RECUBOX® HRV 360 VENT-READY is a compact heat recovery unit prepared for AFL CONSTANT FLOW EC fans. It represents an exceptionally durable, hygienic, and versatile foundation for modern balanced pressure air recovery in family houses, apartments, and small commercial buildings.
Custom manufacturing in the Czech Republic. We manufacture RECUBOX® units entirely in the Czech Republic according to precise customer requirements. We use high-quality polypropylene materials from SIMONA AG and professional processing technology on Leister AG equipment.
The casing is structurally optimized for AFL EC CONSTANT FLOW fans, which represent an exceptionally smart solution for modern heat recovery. Thanks to the built-in Constant Flow function, the fans automatically respond to changes in system resistance and help maintain stable airflow, balanced pressure, low noise levels, and energy-efficient operation over the long term.
The unit is equipped with a counter-flow heat recovery exchanger with an efficiency of up to 90%. The exchanger is intentionally designed with an emphasis on low pressure drops, contributing to quiet, economical, and efficient operation.

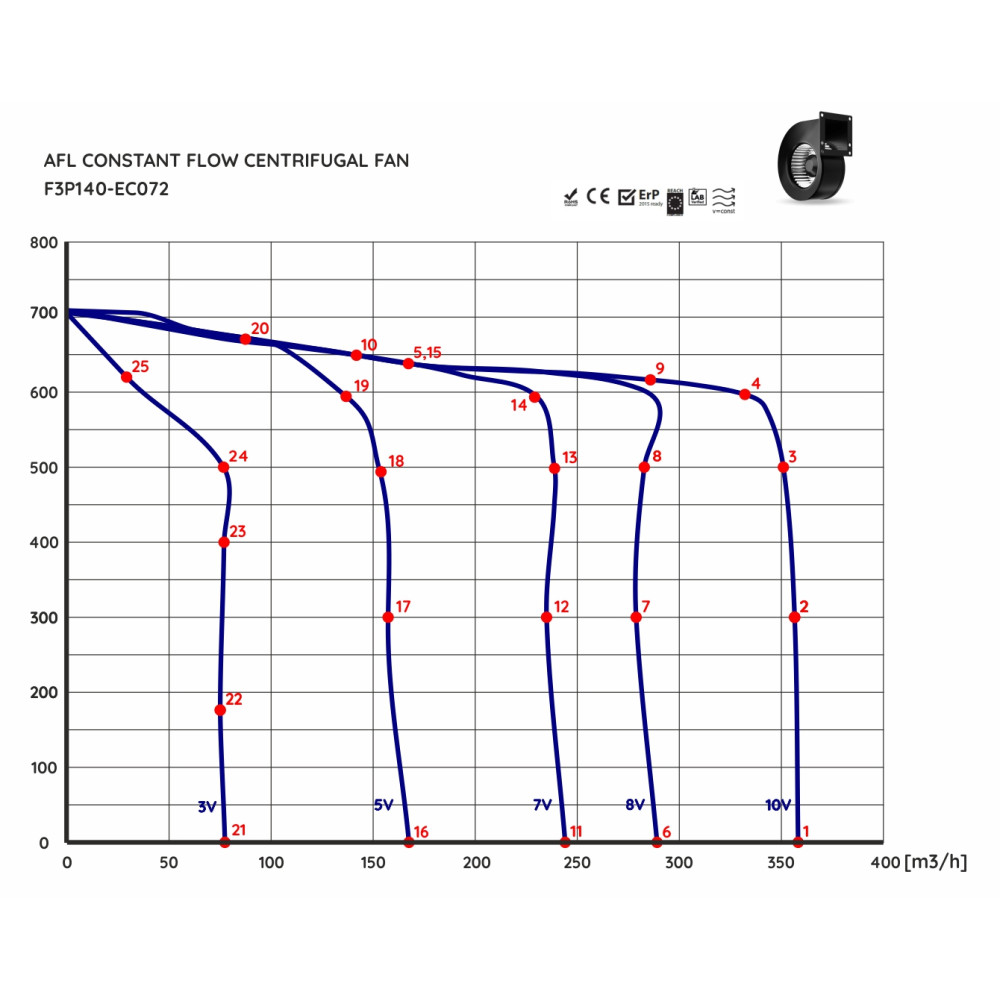

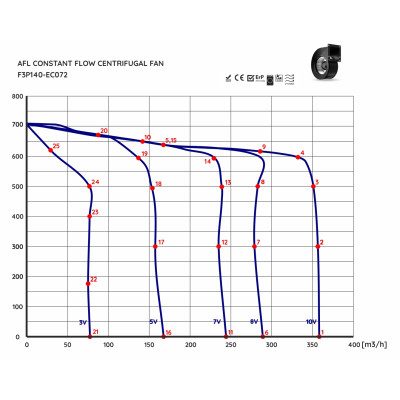

Performance parameters of the system with AFL CONSTANT FLOW fans:
.jpg)
1. AXT-LB 366-196-366-H400-2.5 - enthalpic exchanger by AIRWOODS (excellent price/performance ratio)
Manufacturer's Catalog Sheet (ENG)
2. RECUTECH RFK+16-400-28 – state-of-the-art enthalpic exchanger with revolutionary METALPIC material

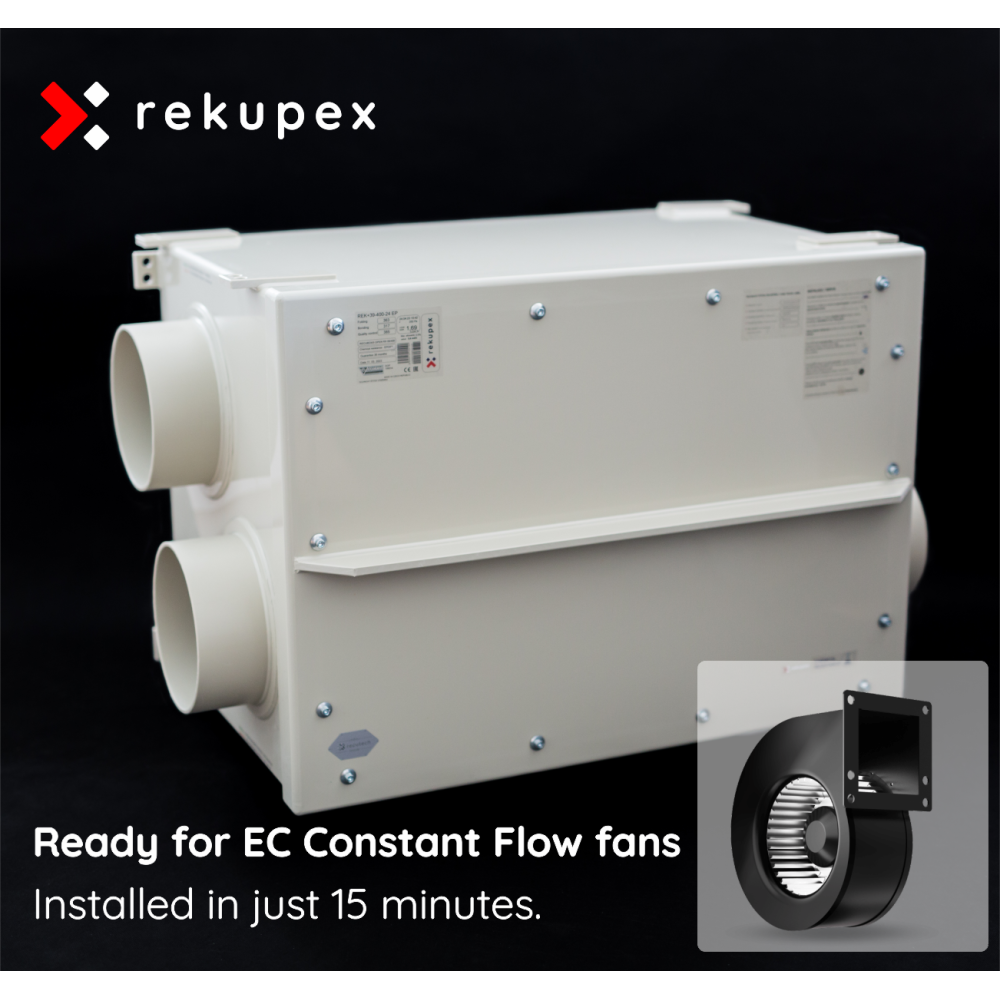

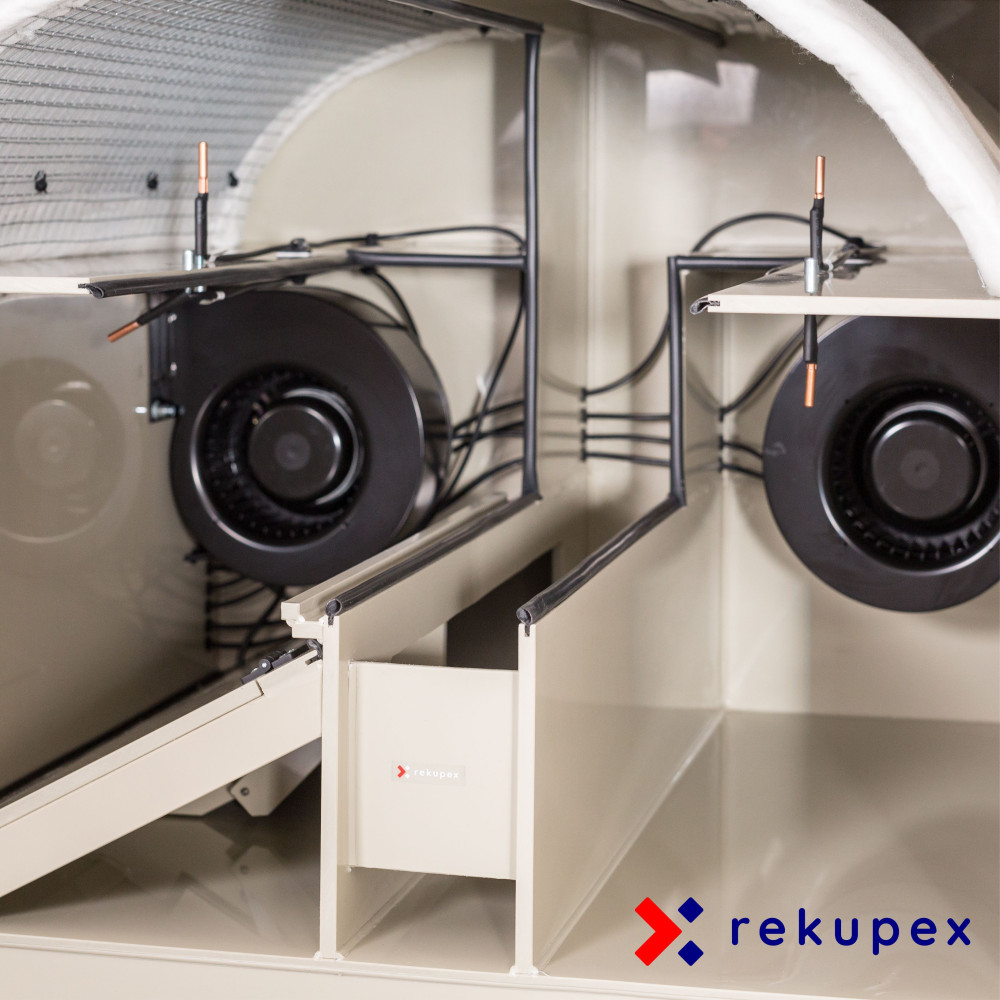

The casing is prepared so that the fans can be installed very quickly and without complex modifications. Installation of AFL CONSTANT FLOW fans is done by simply inserting them into the prepared opening and securing them.
All outlets and the condensate drain are designed symmetrically (mirrored), so you choose the final orientation of the unit during actual installation. RECUBOX® can also be operated with external fans according to your own design.
Control of EC fans is very simple using a DC 0–10 V signal. The unit can be controlled, for example, by:
Product Delivery: The Enthalpic RECUBOX® ERV 360 VENT-READY is delivered as a standalone casing without fans and without a control unit. These can be purchased separately and easily installed by the user.
RECUBOX® is prepared in its basic version for measurement, cabling, and safe electrical installation. Thanks to thoughtful details, the installation of sensors, cable routing, and fan connection is fast, organized, and technically clean.
The unit thus facilitates not only the installation itself but also future service, modifications, and system expansion.
|
|

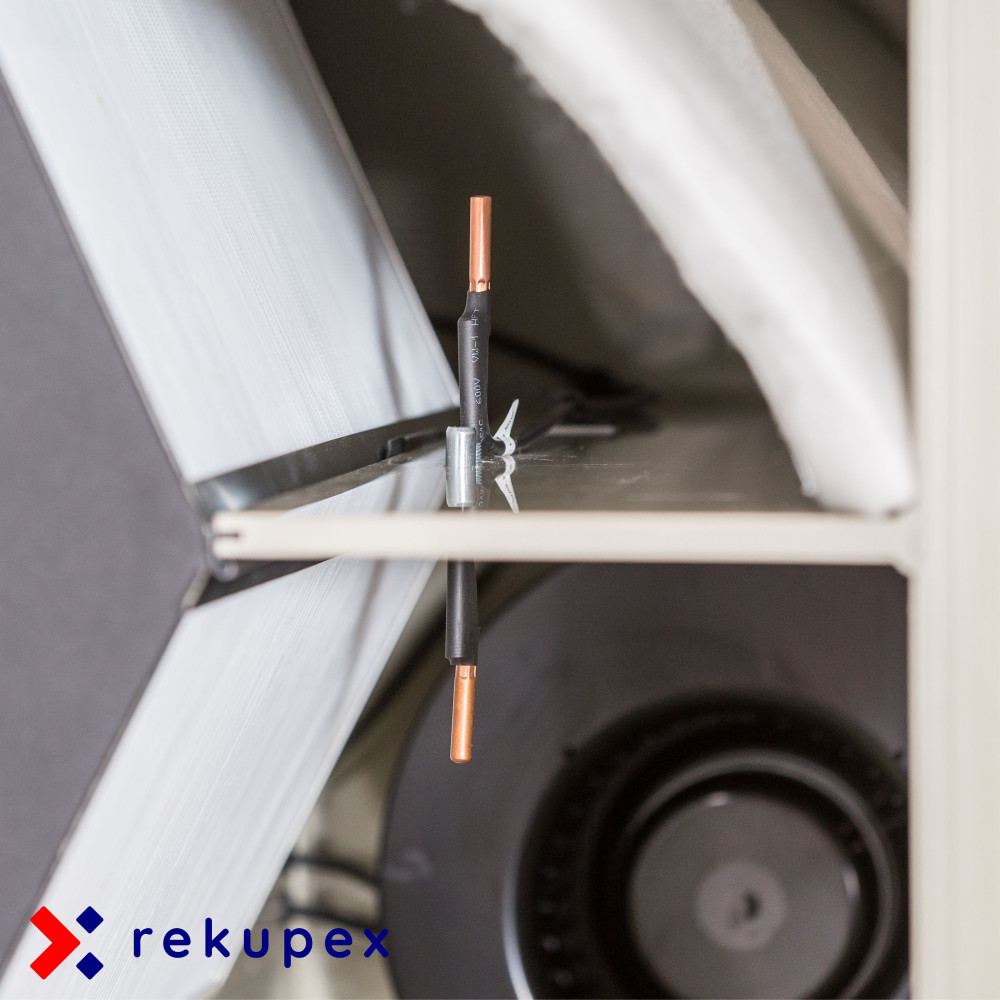

4 sensor mounting holders RECUBOX® includes 4 holders for mounting sensors. Each holder is located in one of the primary air paths: SUP, EHA, ETA, and ODA. As a result, the unit is ready for easy and clear installation of measuring elements exactly where they are needed for proper system control and monitoring. |
|
|
Tight rubber cable grommets RECUBOX® comes with tight rubber cable grommets that are plugged in the basic version. The grommets are designed for safe and clean cable routing without the need for additional modifications to the unit's structure, specifically for:
|
|
|

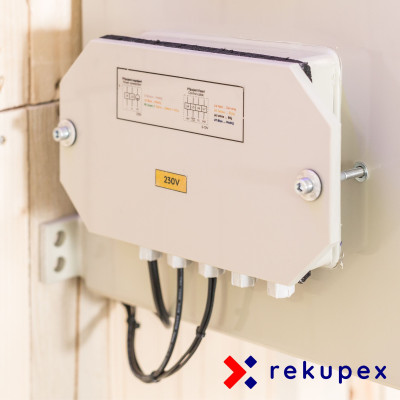

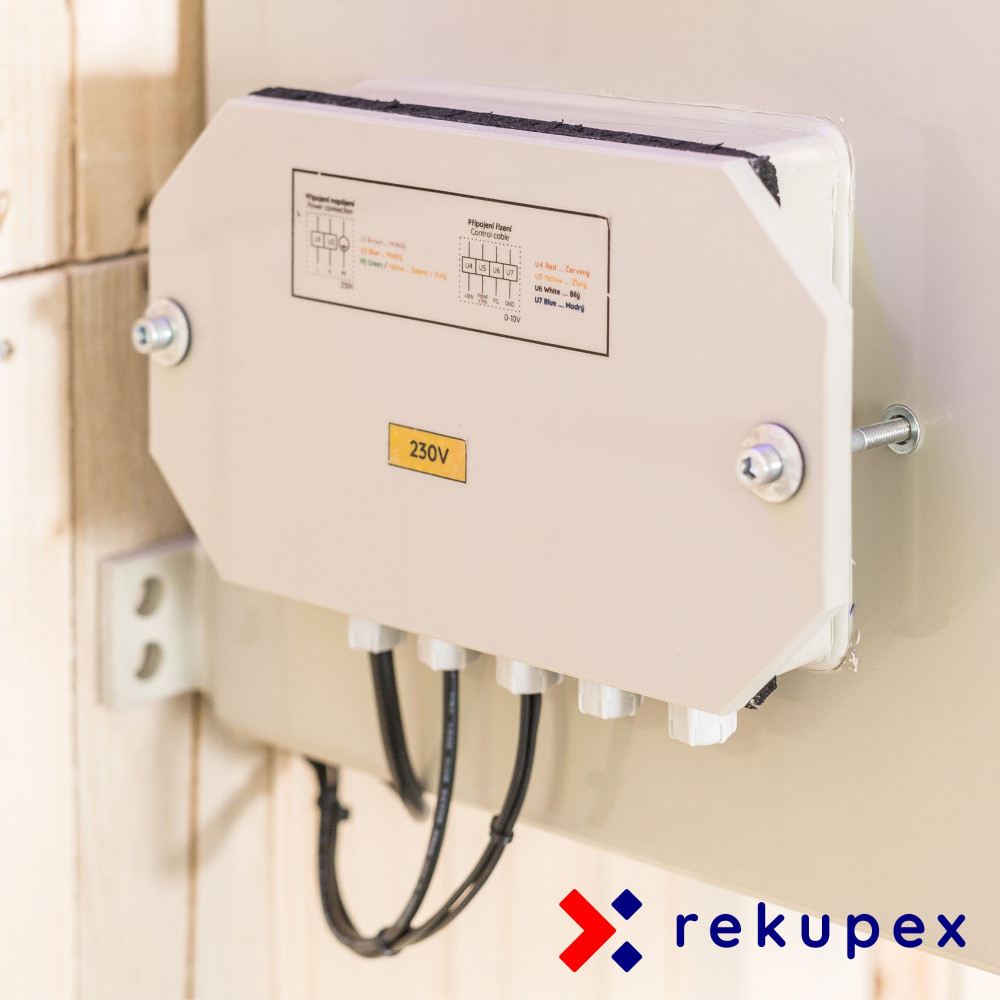

Spacious installation box for safe electrical wiring RECUBOX® is equipped with a sufficiently large installation box for organized and safe electrical connection. All wires and cables are routed into this box through tight rubber grommets, which help protect the system against air and moisture penetration. Furthermore, threaded glands lead out of the installation box, allowing for hermetically sealed and mechanically durable cable routing to other parts of the system. The result is a clean, professional, and long-term reliable electrical solution. |

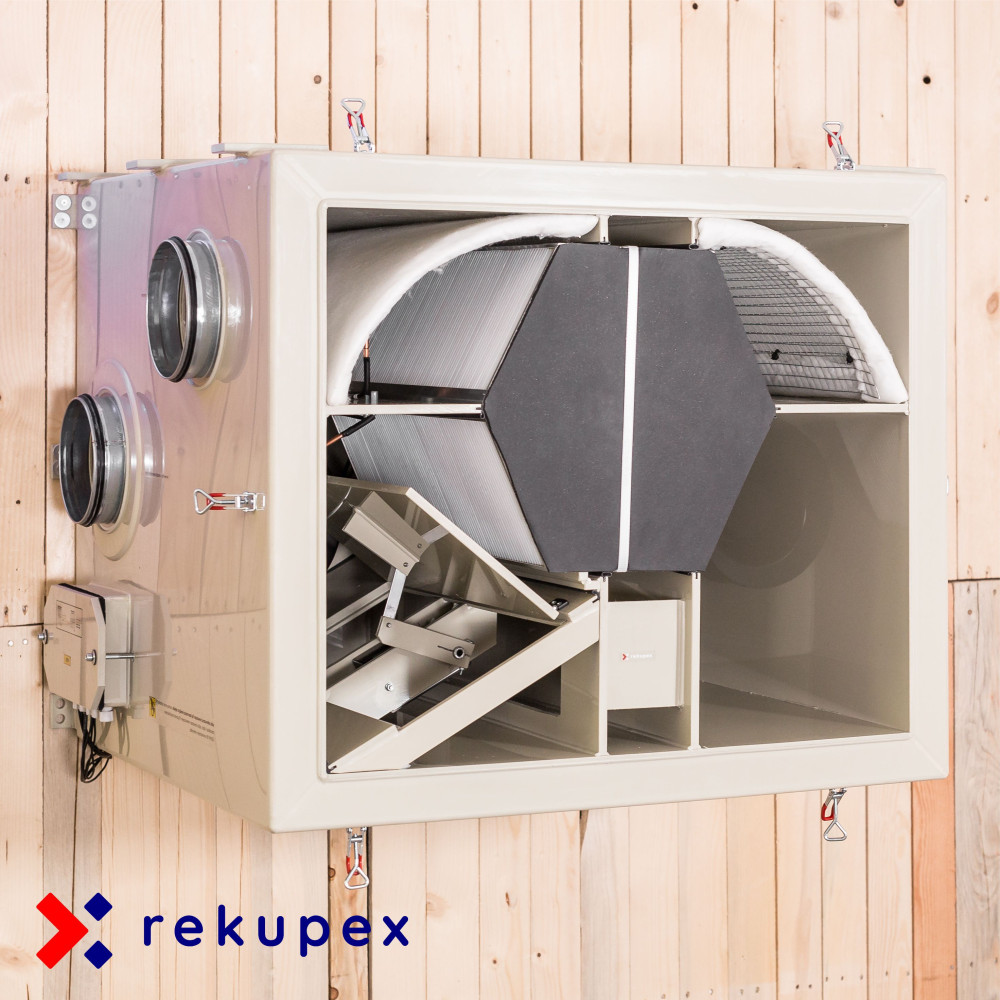

The Enthalpic RECUBOX® ERV 360 VENT-READY is also available in a variant with a 100% mechanical BY-PASS. This sophisticated system simultaneously closes the fresh air passage through the exchanger and opens a large bypass channel behind the exchanger.
The advantage is that even with the bypass active, the air remains filtered by the same filter as during normal operation through the exchanger.

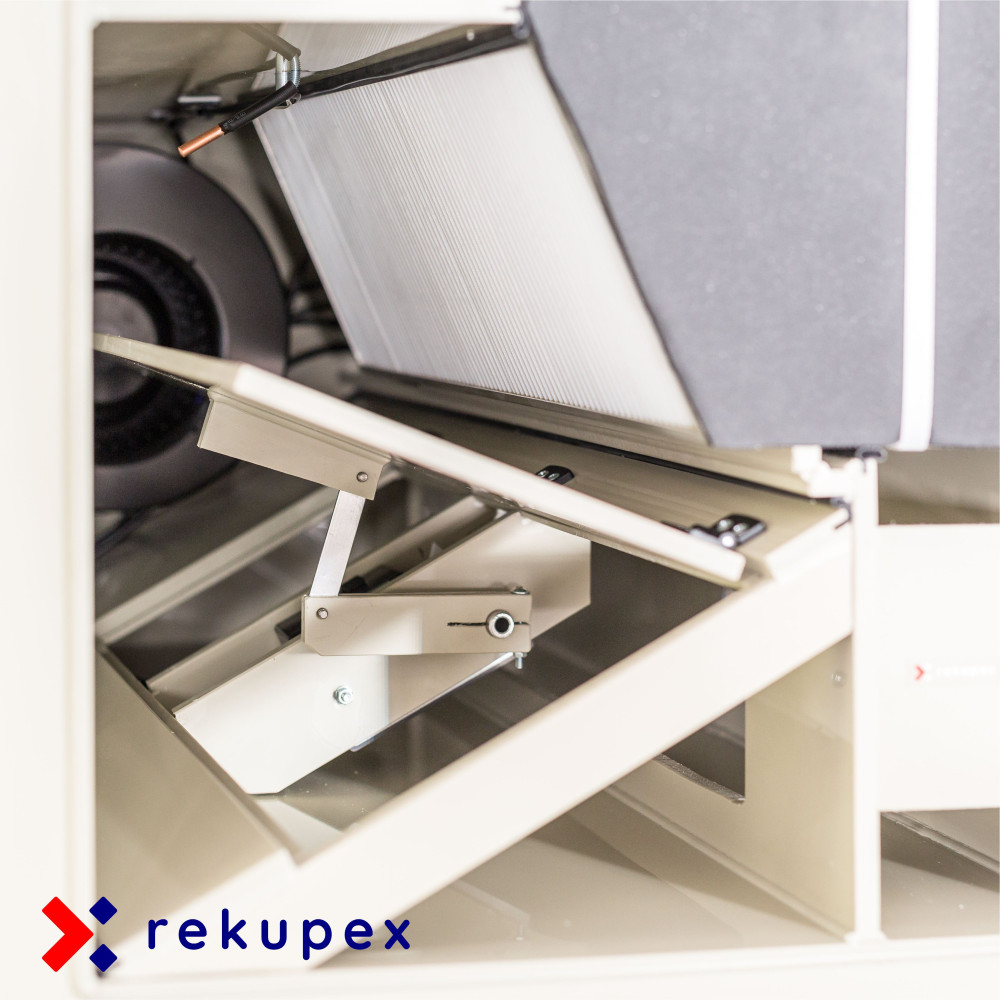

Removable BY-PASS mechanism
The entire mechanism can be completely removed from the RECUBOX® in one motion, just like the other components. This makes servicing, inspection, and cleaning exceptionally easy.
The mechanism is structurally prepared for the installation of any actuator with a minimum torque of 5 Nm. The actuator is mounted onto a prepared 10 mm thick plastic plate and locked against rotation with the included metric screw. Compatibility with a 14 mm diameter shaft is required.
The airtightness of the casing is crucial for efficient heat recovery. RECUBOX® is equipped with robust adjustable buckles that allow for precise fine-tuning of the lid's pressure on the seal. As a result, the unit does not draw in unwanted air and operates at the maximum possible efficiency.
Due to their robust construction, high quality, and hygienic safety, our RECUBOX® units are part of numerous CTU (Czech Technical University) projects, including the unique S.A.W.E.R. system, which UCEEB is developing to extract drinking water from the air.

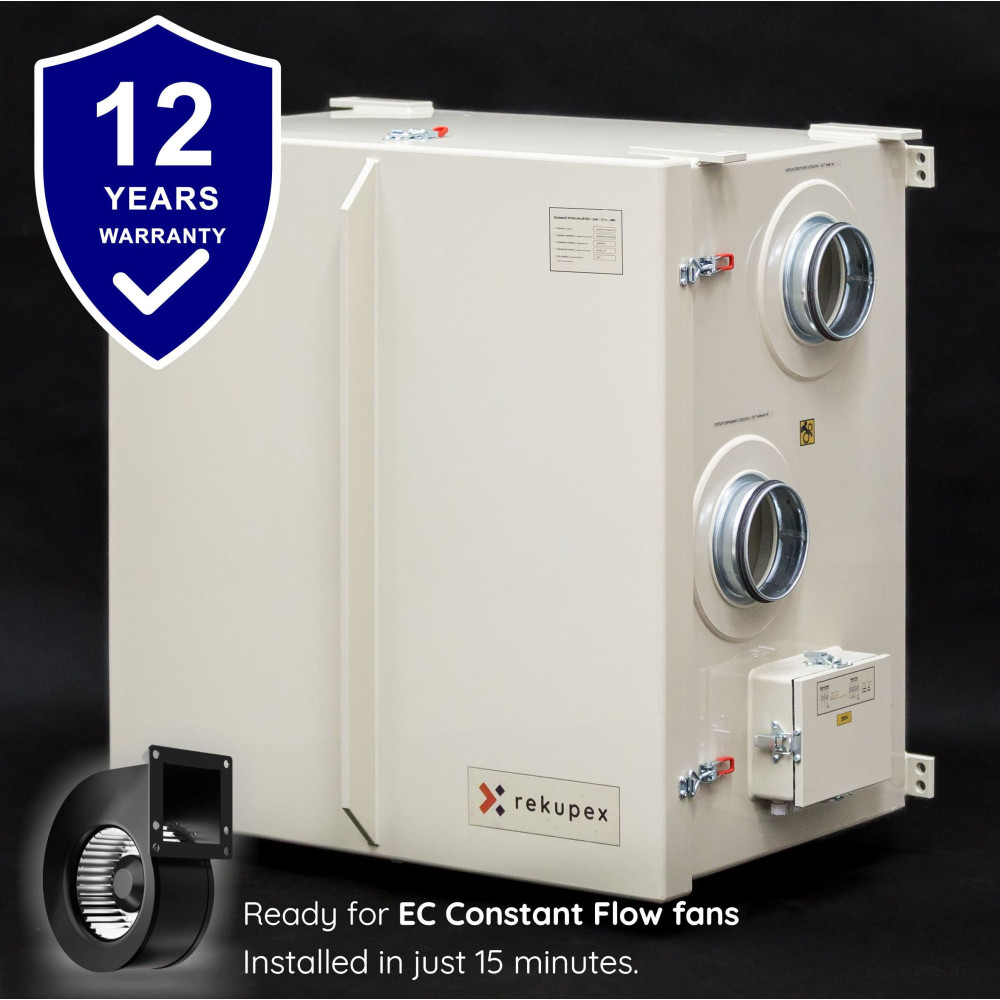

We provide an above-standard 12-year warranty on the airtightness of RECUBOX® casing units.
The casing is made of high-quality polypropylene and joined using hot gas welding technology, resulting in homogeneous, strong, and long-term stable joints without risk of degradation.
Unlike constructions using glued joints, sealing tapes, or combinations of different materials, RECUBOX® maintains its airtightness and mechanical resistance even after many years of operation.
RECUBOX® HRV 360 VENT-READY is not just a casing prepared for fans. It is a thoughtful foundation for exceptionally comfortable, stable, and technically advanced heat recovery. It is specifically when equipped with AFL EC CONSTANT FLOW fans that the true strength of the entire VENT-READY concept is fully revealed.
Main benefit of CONSTANT FLOW technology:
AFL fans automatically maintain a constant volumetric air flow even when pressure losses in the system change. This means the unit operates stably even as filters gradually become clogged, operating conditions change, or resistance in the ventilation ductwork fluctuates.
This is a massive advantage over conventional fans, where the system must be laboriously fine-tuned, and performance can drop or balanced pressure can be lost with every change in resistance. With AFL CONSTANT FLOW fans, you get much more stable operation, guaranteed air exchange, and higher comfort without unnecessary adjustments to settings.
| Constant Air Flow | Fans automatically compensate for changes in system resistance and maintain the set performance without constant readjustment. |
| Easier Balanced Pressure | Supply and exhaust air can be maintained in a more stable ratio over the long term, which is essential for correct heat recovery function. |
| Lower Noise Levels | At lower resistance, the fan automatically reduces RPM, so the system can run quieter and more refined. |
| Lower Consumption | When high performance is not needed, the fan does not consume energy unnecessarily. The result is more economical operation. |
| Full Controllability | The Constant Flow feature works across the entire regulation range, allowing the unit's performance to be easily adapted to the current needs of the building. |
Practical result for the user:
When you choose RECUBOX® HRV 360 VENT-READY and equip it with AFL EC CONSTANT FLOW fans, you get an exceptionally smart combination: an indestructible, hygienic, and service-accessible RECUBOX® unit paired with fans that monitor stable air flow themselves. The result is modern heat recovery with high comfort, low noise, and without unnecessarily complex commissioning.
See why AFL CONSTANT FLOW fans are so exceptional for RECUBOX® VENT-READY.
In the video, you will see the principle through which the fans automatically react to changes in system resistance and help maintain stable heat recovery performance over the long term.
VENT-READY truly makes sense with AFL CONSTANT FLOW. It's not just about mechanical compatibility, but about a functional whole that brings more stable flow, quieter operation, lower consumption, and a simpler path to professionally functioning balanced pressure heat recovery.
 |
Easy exchanger removal The exchanger can be easily and quickly removed from the RECUBOX® unit in one motion. It is mounted on a sliding system that allows for convenient withdrawal from the unit. |
 |
Maximum hygiene The exchanger and the entire unit can be easily removed and thoroughly cleaned. The exchanger is certified with the ILH Berlin hygiene certificate. |
 |
Mechanical sealing without adhesives The exchanger is sealed with a gasket in a groove without the use of glues or adhesive tapes. The seal can be easily replaced if necessary. |
 |
No screws, rivets, or adhesives RECUBOX® is made from a single type of material using hot gas welding technology. The result is tight and long-term stable joints without degradation from aging. |
 |
Wide range of sizes The VENT-READY range is available in several performance variants, and larger versions for higher volumetric flow rates can be custom-made. |
 |
Compatibility with RECUTECH and other exchanger types The units are designed for high-quality RECUTECH exchangers with EUROVENT certification and other compatible exchangers according to specific configuration. |
 |
Balanced pressure operation When using AFL CONSTANT FLOW fans, stable and balanced pressure operation of the entire recovery system can be very easily achieved. |
 |
Optional ionizer mounting The unit can be supplemented, for example, with the MALAPA IN03 ionizer. |
 |
Maximum variability The location of inlet and outlet ports can be adapted to specific installations in a wide range of variants. |
 |
Mirrored design All variants are also available in left and right-hand versions. Condensate drainage is handled by a 1/2" connection in two positions. |
 |
Easy installation The unit is ready for mounting using threaded rods and allows for easy placement in technical spaces. |
 |
Large-area filters The unit allows for the use of various filter media. In the basic version, it is equipped with M5 class filter textile. |
 |
BY-PASS A short-circuit piece or integrated 100% BY-PASS is available. |
 |
RECUBOX® can be ordered without insulation or with 30 mm and 50 mm insulation. The insulation is hermetically sealed between two shells. In the insulated version, an additional 5mm PP shell is added along with the insulation material, which increases durability and overall quality of finish. |
 |
Technical drawing RECUBOX® ERV 360 without BY-PASS – A01 Click the image to enlarge. Variant without BY-PASS, standard technical design of the unit. |
 |
Technical drawing RECUBOX® ERV 360 with 100% BY-PASS – A01 Click the image to enlarge. Variant with integrated 100% BY-PASS. |
Example of RECUBOX® VENT-READY installation with REX EC control in a family house.
Click the diagram to enlarge.
Selection of the variant occurs during the ordering process.

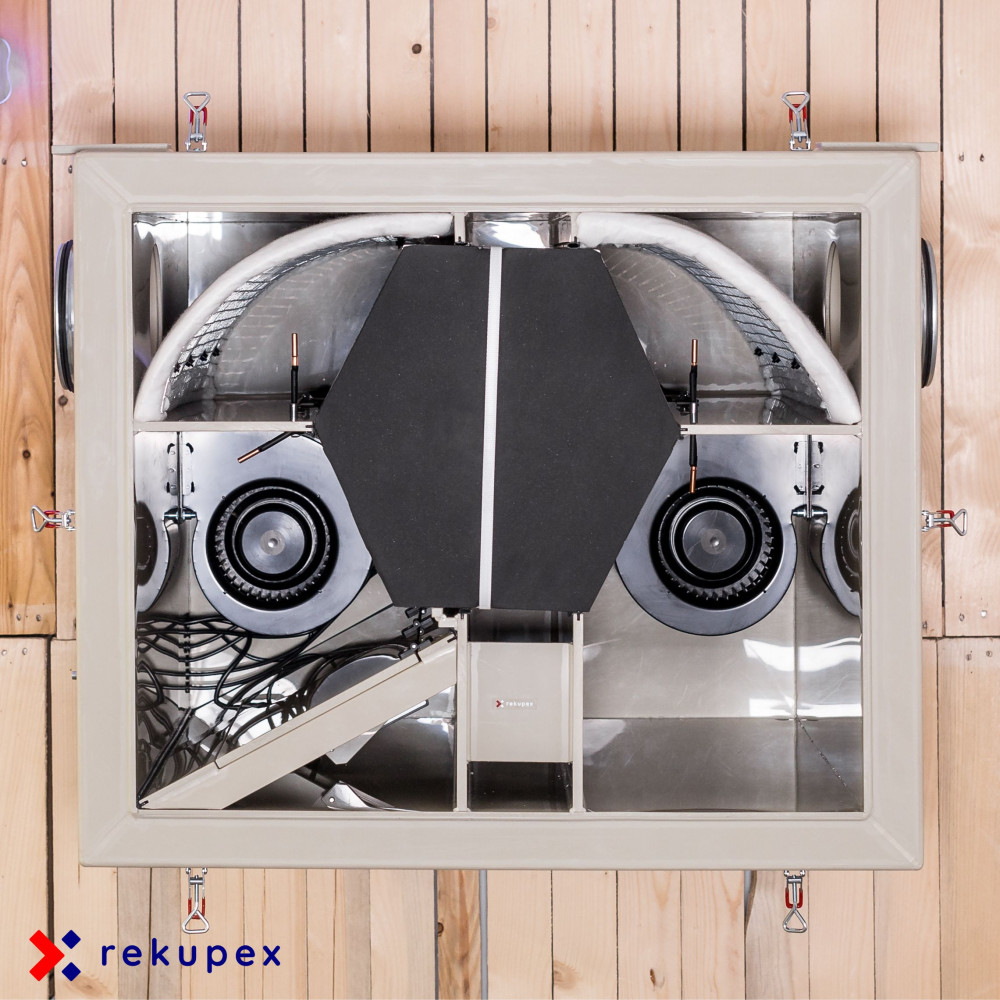

Front view of RECUBOX® with open door.
The dimensions shown include 50 mm insulation and the second shell. If dimensions change, for example due to larger ports or other technical adjustments, we will inform you after ordering.
 |

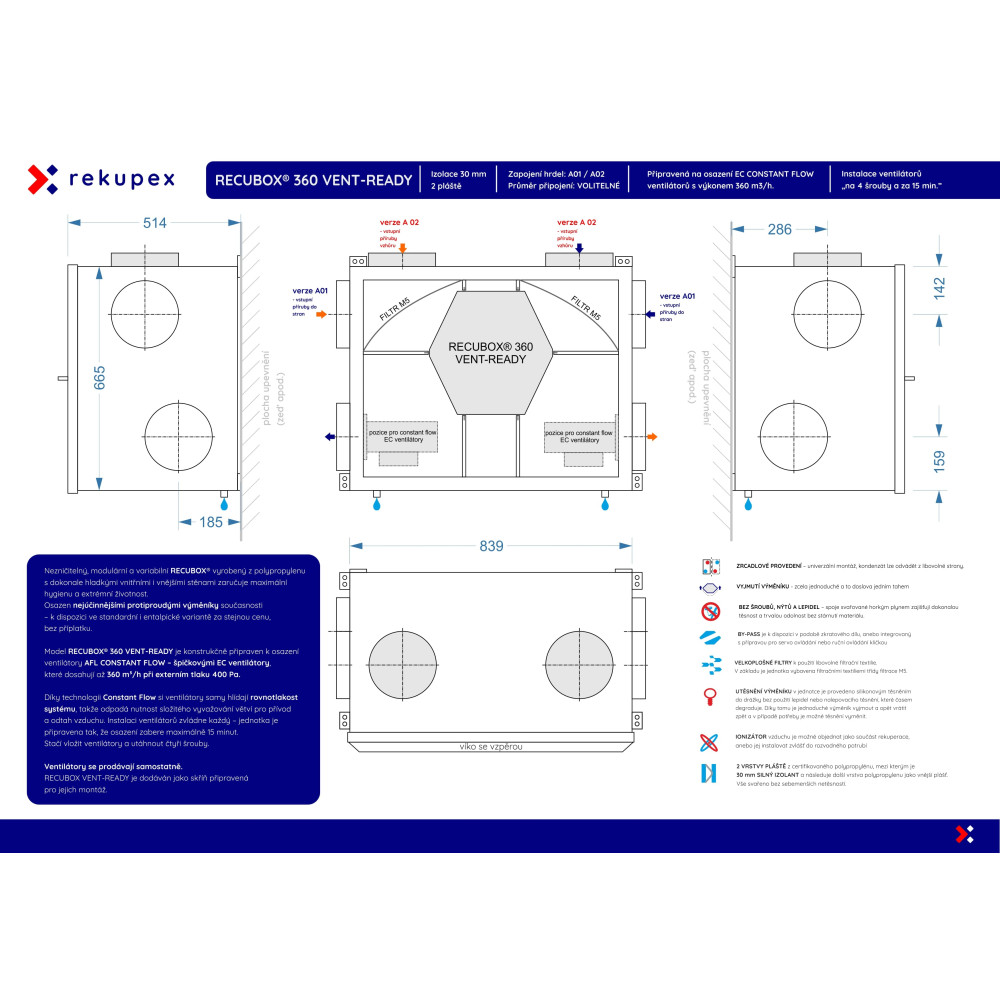

A01 – without BY-PASS Exchanger on a wide tray, 4 ports to the sides Dimensions: 843 (A) × 623 (B) × 699 (C) mm – width × height × depth The drawing shows both standard and mirrored connections. |
 |
A02 – without BY-PASS Exchanger on a wide tray, 2 ports up, 2 ports to the sides Dimensions: 843 (A) × 623 (B) × 699 (C) mm – width × height × depth The drawing shows both standard and mirrored connections. |
 |

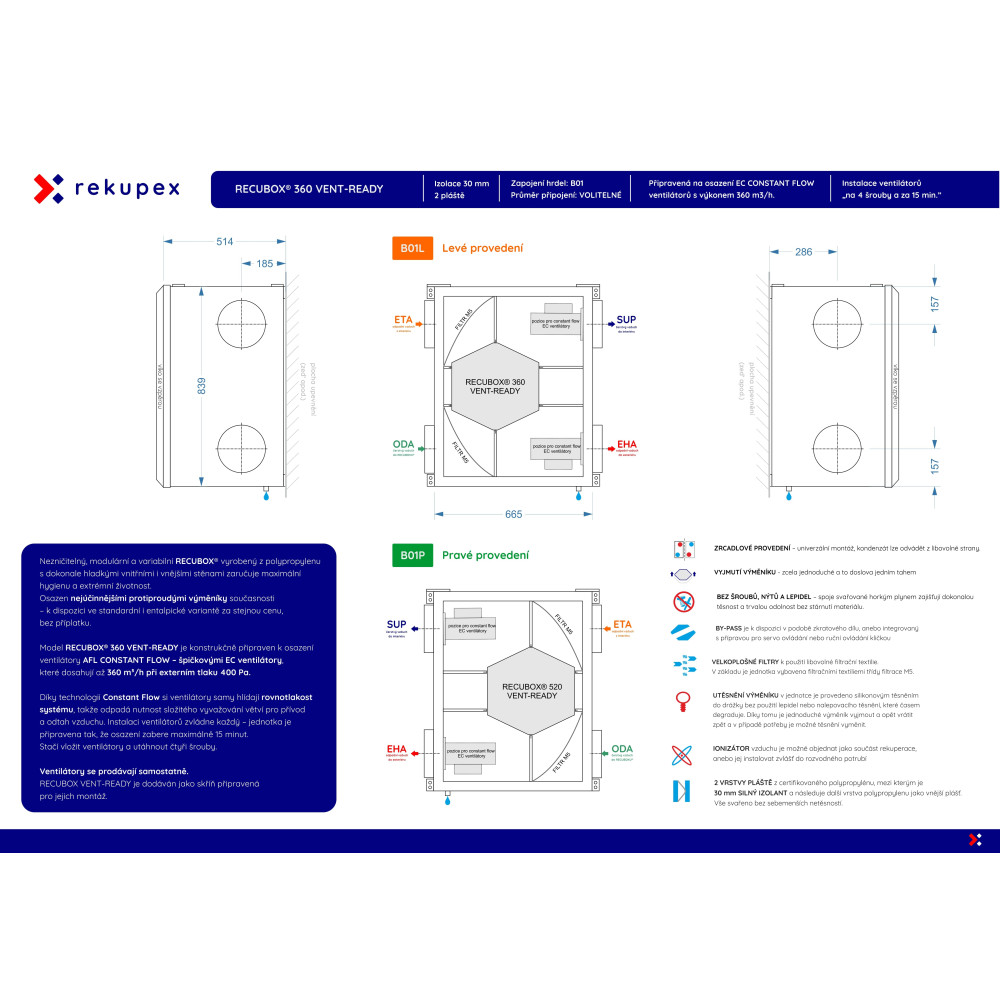

B01L – without BY-PASS Exchanger on a wide tray, 4 ports to the sides Dimensions: 623 (A) × 843(B) × 699 (C) mm – width × height × depth Left-hand version – exhaust air inlet at top left, fresh air inlet at bottom left. |
 |
B01P – without BY-PASS Exchanger on a wide tray, 4 ports to the sides Dimensions: 623 (A) × 843 (B) × 699 (C) mm – width × height × depth Right-hand version – exhaust air inlet at top right, fresh air inlet at bottom right. |
RECUBOX® HRV 360 VENT-READY is also available in variants including 100% BY-PASS.
The specific variant is selected during the ordering process. Below are the basic designs with descriptions of orientation and connection port placement.
| |
A01L and A01P – including 100% BY-PASS Exchanger on a wide tray, 4 ports to the sides Dimensions: 843 (A) × 713 (B) × 699 (C) mm – width × height × depth A01L = Left-hand version – fresh air inlet to RECUBOX® on the left – see drawing A01P = Right-hand version – fresh air inlet to RECUBOX® on the right – see drawing |
| |
A02L and A02P – including 100% BY-PASS Exchanger on a wide tray, 2 ports up, 2 ports to the sides Dimensions: 843 (A) × 713(B) × 699 (C) mm – width × height × depth A02L = Left-hand version – fresh air inlet to RECUBOX® on the left – see drawing A02P = Right-hand version – fresh air inlet to RECUBOX® on the right – see drawing |
Prices are final, including the integrated exchanger, all costs, taxes, and fees.
