The basis for high-tech recuperation.
RECUBOX® 360 VENT-READY is ready for easy installation
top-of-the-line AFL EC fans with CONSTANTFLOW system
RECUBOX® HRV 360 VENT-READY is a compact heat recovery unit prepared for installation with AFL CONSTANT FLOW EC fans. It represents an exceptionally durable, hygienic and highly versatile base for modern balanced heat recovery ventilation in family houses, apartments and smaller commercial buildings.
Custom manufacturing in the Czech Republic. RECUBOX® units are manufactured entirely in the Czech Republic according to the exact requirements of each customer. We use high-quality polypropylene materials from SIMONA AG and professional processing technology from Leister AG.
The casing is structurally optimized for installation with AFL CONSTANT FLOW EC fans, which represent an exceptionally smart solution for modern ventilation. Thanks to the integrated Constant Flow function, the fans automatically respond to changes in system resistance and help maintain stable airflow, balanced pressure, low noise and energy-efficient operation over the long term.
The unit is equipped with a counterflow heat recovery exchanger with efficiency of up to 90%. The exchanger is intentionally designed with an emphasis on low pressure loss, which contributes to quiet, energy-efficient and highly effective operation.
System performance parameters with AFL CONSTANT FLOW fans:
.jpg)
1. RECUTECH RSK+16-400-25 – all-aluminium counterflow exchanger, Czech manufacturer
2. RECUTECH RSF+16-400-H-F-29 – exchanger with HPS fins, Czech manufacturer
3. ZERN ENGINEERING HU-EX6 366/400 – exchanger with HPS fins and HPS casing, Ukrainian manufacturer
The casing is prepared so that the fans can be installed very quickly and without any complicated modifications. Installation of AFL CONSTANT FLOW fans is done simply by inserting them into the prepared opening and fastening them in place.
All duct connections and the condensate drain are designed in a mirrored arrangement, so the final orientation of the unit can be chosen during installation. RECUBOX® can also be operated with external fans according to your own design.
Control of EC fans is very simple using a DC 0–10 V signal. The unit can be controlled, for example, by:
Product delivery: RECUBOX® HRV 360 VENT-READY is supplied as a standalone casing without fans and without a control unit. These can be purchased separately and easily installed by the user.
RECUBOX® is prepared as standard also in terms of measurement, cabling and safe electrical installation. Thanks to thoughtfully designed details, installation of sensors, cable routing and fan wiring is quick, clear and technically clean.
The unit therefore makes not only the initial installation easier, but also future servicing, modifications and system expansion.
|
|
4 holders for sensor installation RECUBOX® contains 4 holders for installing sensors. Each holder is located in one of the main airflow paths: SUP, EHA, ETA and ODA. This means the unit is ready for easy and clear installation of measuring elements exactly where they are needed for proper system control and monitoring. |
|
|
Tight rubber cable grommets RECUBOX® is equipped with tight rubber cable grommets, which are sealed in the basic version. The grommets are intended for safe and clean cable routing without the need for any additional modifications to the unit structure, especially for:
|
|
|
Spacious installation box for safe electrical wiring RECUBOX® is equipped with a sufficiently large installation box for clear and safe electrical wiring. All conductors and cables are routed into this box through tight rubber grommets, which help protect the system against air and moisture ingress. From the installation box, the cables are then led further through screw cable glands, which ensure hermetically sealed and mechanically resistant cable routing to other parts of the system. The result is a clean, professional and long-term reliable electrical installation solution. |
RECUBOX® HRV 360 VENT-READY is also available in a version with a 100% mechanical BY-PASS. This sophisticated system closes the passage of fresh air through the exchanger and at the same time opens a large bypass duct behind the exchanger.
The advantage is that even when the bypass is active, the air still remains filtered by the same filter as during normal operation through the exchanger.
Removable BY-PASS mechanism
The entire mechanism can be completely removed from the RECUBOX® in one pull, just like the other components. Servicing, inspection and cleaning are therefore exceptionally easy.
The mechanism is structurally prepared for installation of any actuator with a minimum torque of 5 Nm. The actuator is mounted to a prepared plastic plate with a thickness of 10 mm and secured against rotation with the supplied metric screw. Compatibility with a shaft diameter of 14 mm is required.
Tightness of the casing is essential for efficient heat recovery. RECUBOX® is equipped with massive adjustable latches, which allow precise adjustment of the cover pressure against the seal. This ensures that the unit does not draw in false air and operates at maximum possible efficiency.
Thanks to their robust construction, high quality and maximum hygienic safety, our RECUBOX® units are part of a number of CTU projects, including the unique S.A.W.E.R. system, which UCEEB is developing for producing drinking water from air.
We provide an extended 12-year warranty on the tightness of RECUBOX® casings.
The casing is made of high-quality polypropylene and joined using hot gas welding technology, resulting in homogeneous, strong and long-term stable joints without the risk of degradation.
Unlike constructions using adhesive joints, sealing tapes or a combination of different materials, RECUBOX® maintains its airtightness and mechanical durability even after many years of operation.
RECUBOX® HRV 360 VENT-READY is not just a casing prepared for fans. It is a thoughtfully designed base for exceptionally comfortable, stable and technically advanced heat recovery ventilation. It is precisely when equipped with AFL EC CONSTANT FLOW fans that the true strength of the VENT-READY concept becomes fully apparent.
Main benefit of CONSTANT FLOW technology:
AFL fans automatically maintain a constant airflow rate even when pressure losses in the system change. This means the unit operates stably even when filters gradually become clogged, operating conditions change or resistance in the ventilation ductwork fluctuates.
This is a huge advantage compared to standard fans, where the system must be balanced more laboriously and every change in resistance can reduce performance or disturb pressure balance. With AFL CONSTANT FLOW fans, you get much more stable operation, more reliable air exchange and greater comfort without unnecessary adjustment interventions.
| Constant airflow | The fans automatically compensate for changes in system resistance and maintain the set performance without constant readjustment. |
| Easier pressure balancing | The supply and exhaust airflow can be maintained in a more stable ratio over the long term, which is essential for proper heat recovery operation. |
| Lower noise | When resistance decreases, the fan automatically reduces its speed, allowing the system to run more quietly and smoothly. |
| Lower power consumption | When high performance is not needed, the fan does not waste energy unnecessarily. The result is more economical operation. |
| Full controllability | The Constant Flow feature works throughout the entire control range, so the unit performance can be easily adapted to the current needs of the building. |
Practical result for the user:
When you choose RECUBOX® HRV 360 VENT-READY and equip it with AFL EC CONSTANT FLOW fans, you get an exceptionally smart combination: an indestructible, hygienic and service-friendly RECUBOX® unit together with fans that automatically maintain stable airflow. The result is modern ventilation with high comfort, low noise and no unnecessarily complicated balancing.
See why AFL CONSTANT FLOW fans are so exceptional for RECUBOX® VENT-READY.
In the video you can see the principle by which the fans automatically respond to changes in system resistance and help maintain stable ventilation performance over the long term.
VENT-READY makes real sense especially with AFL CONSTANT FLOW. It is not just about mechanical compatibility, but about a functional whole that brings more stable airflow, quieter operation, lower energy consumption and a simpler path to professionally functioning balanced ventilation.
 |
Easy exchanger removal The exchanger can be removed from the RECUBOX® unit easily and quickly in one pull. It is mounted on a sliding system that allows convenient withdrawal from the unit. |
 |
Maximum hygiene Both the exchanger and the entire unit can be easily removed and thoroughly cleaned. The exchanger is certified with the ILH Berlin hygienic certificate. |
 |
Mechanical sealing without adhesives The exchanger is sealed with a gasket in a groove without the use of adhesives or self-adhesive sealing strips. If needed, the gasket can be replaced easily. |
 |
No screws, rivets or adhesives RECUBOX® is made from a single type of material using hot gas welding technology. The result is tight and long-term stable joints without degradation caused by ageing. |
 |
Wide size range The VENT-READY range is available in several performance versions, and larger designs for higher airflow rates can also be manufactured on request. |
 |
Compatibility with RECUTECH and other exchanger types The units are designed for high-quality RECUTECH exchangers with EUROVENT certification and other compatible exchangers depending on the specific configuration. |
 |
Balanced operation When AFL CONSTANT FLOW fans are used, stable and balanced operation of the entire ventilation system can be achieved very easily. |
 |
Optional ionizer installation The unit can be supplemented, for example, with a MALAPA IN03 ionizer. |
 |
Maximum variability The position of inlet and outlet duct connections can be adapted to the specific installation in a wide range of configurations. |
 |
Mirror version All variants are also available in left-hand and right-hand versions. Condensate drainage is provided via a 1/2" connection in two positions. |
 |
Easy installation The unit is prepared for mounting with threaded rods and allows easy placement in the technical room. |
 |
Large-area filters The unit allows the use of various filter media. In the standard version it is equipped with filter media of class M5. |
 |
BY-PASS A shortcut section or an integrated 100% BY-PASS is available. |
 |
RECUBOX® can be ordered without insulation or with 30 mm and 50 mm insulation. The insulation is hermetically enclosed between two walls. In the insulated version, in addition to the insulation itself, an additional 5 mm PP wall is added, increasing both durability and overall product quality. |
 |
Technical drawing of RECUBOX® HRV 360 without BY-PASS – A01 Click the image to enlarge. Version without BY-PASS, standard technical unit design. |
 |
Technical drawing of RECUBOX® HRV 360 with 100% BY-PASS – A01 Click the image to enlarge. Version with integrated 100% BY-PASS. |
Example of RECUBOX® VENT-READY installation with REX EC control in a family house.
Click the diagram to enlarge.
The variant is selected during the ordering process.
Front view of RECUBOX® with the door open.
The stated dimensions include 50 mm insulation and the second wall. If the dimensions were to change, for example due to larger duct connections or another technical modification, we will inform you after the order is placed.
 |
A01 – without BY-PASS Exchanger on a wide condensate tray, 4 side duct connections Dimensions: 843 (A) × 623 (B) × 699 (C) mm – width × height × depth The drawing shows both the standard and mirrored connection layout. |
 |
A02 – without BY-PASS Exchanger on a wide condensate tray, 2 top duct connections, 2 side duct connections Dimensions: 843 (A) × 623 (B) × 699 (C) mm – width × height × depth The drawing shows both the standard and mirrored connection layout. |
 |
B01L – without BY-PASS Exchanger on a wide condensate tray, 4 side duct connections Dimensions: 623 (A) × 843 (B) × 699 (C) mm – width × height × depth Left-hand version – exhaust air inlet at the upper left, fresh air inlet at the lower left. |
 |
B01P – without BY-PASS Exchanger on a wide condensate tray, 4 side duct connections Dimensions: 623 (A) × 843(B) × 699 (C) mm – width × height × depth Right-hand version – exhaust air inlet at the upper right, fresh air inlet at the lower right. |
RECUBOX® HRV 360 VENT-READY is also available in variants including a 100% BY-PASS.
The specific variant is selected during the ordering process. Below we list the basic versions with a description of orientation and duct connection positions.
| |
A01L and A01P – including 100% BY-PASS Exchanger on a wide condensate tray, 4 side duct connections Dimensions: 843 (A) × 623 (B) × 699 (C) mm – width × height × depth A01L = left-hand version of the unit – fresh air inlet into the RECUBOX® on the left – see drawing A01P = right-hand version of the unit – fresh air inlet into the RECUBOX® on the right – see drawing |
| |
A02L and A02P – including 100% BY-PASS Exchanger on a wide condensate tray, 2 top duct connections, 2 side duct connections Dimensions: 843 (A) × 623 (B) × 699 (C) mm – width × height × depth A02L = left-hand version of the unit – fresh air inlet into the RECUBOX® on the left – see drawing A02P = right-hand version of the unit – fresh air inlet into the RECUBOX® on the right – see drawing |
Prices are final, including the integrated exchanger, all costs, taxes and fees.
Data sheet
Read verified reviews from those who have purchased from us.
regulation for a system with EC fans, frost protection or BY-PASS control programming of ventilation intensity, monitoring filter replacement, quick ventilation - control from the toilet,

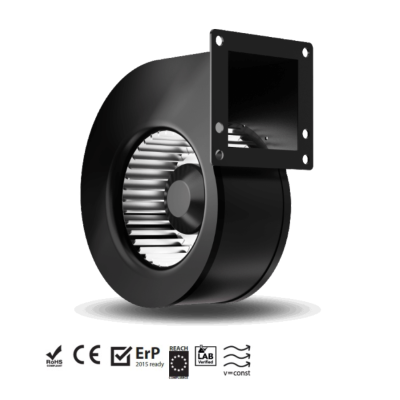

Highly efficient EC fan AFL CONSTANT FLOW , designed for installation in the RECUBOX® 360 VENT-READY unit. Thanks to intelligent regulation, it maintains a constant flow rate of 360 m³/h...
