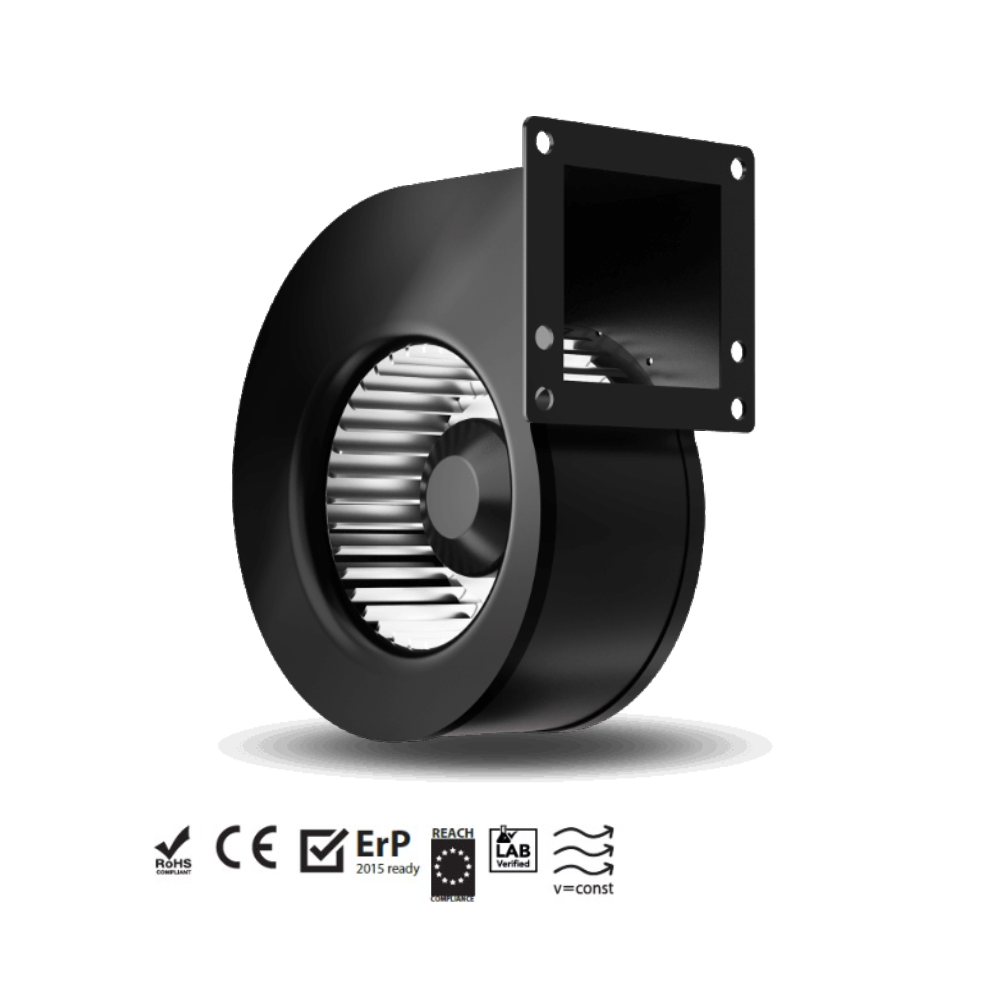

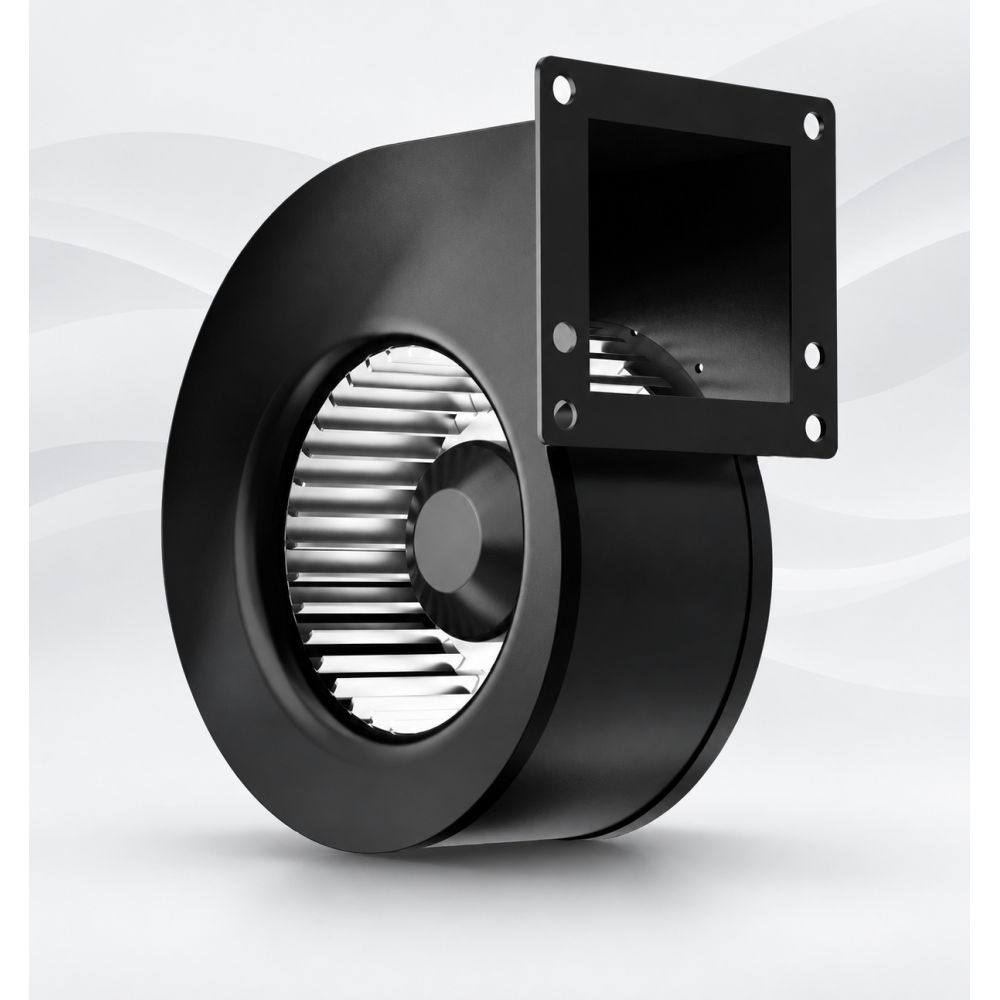

AFL EC CONSTANT FLOW – fan for RECUBOX® 250 VENT-READY

Highly efficient EC fan AFL CONSTANT FLOW , designed for installation in the RECUBOX® 250 VENT-READY unit.
Thanks to intelligent regulation, it maintains a constant flow rate of 250 m³/h even at external pressure of up to 400 Pa .
Extremely quiet, energy-efficient (only 35 W) and equipped with equal pressure control technology without the need for branch balancing .

Designed for installation in the RECUBOX VENT-READY system.

$158.24
i
The amount of VAT applied is 0% for the country United States.
Quantity
In Stock

WARNING: "This product is intended for installation in RECUBOX® VENT-READY only." It is not for sale separately.

AFL EC CONSTANT FLOW – intelligent fan for equal pressure systems

AFL EC CONSTANT FLOW fans represent the cutting edge in the field of modern air conditioning.
They are equipped with an EC motor with integrated electronics that automatically maintains a constant air flow regardless of changing pressure conditions in the system.

Ideal for RECUBOX® VENT-READY

In combination with RECUBOX® 250 VENT-READY, an equal-pressure heat recovery system is created that does not require any manual balancing between supply and exhaust.
The fans control their performance and maintain flow balance even with long ducts or when using filters with higher resistance.

Key benefits

  • Constant air flow (Constant Flow) – the fan itself reacts to pressure changes in the system.

  • High performance – up to 250 m³/h at 400 Pa external loss.

  • Energy-efficient operation – consumption of only 35 W.

  • Quiet operation – EC motor with continuous speed control.

  • Maintenance-free design – long-life ball bearings.

  • Easy installation – within 15 minutes, attached with four screws.

  • Compatible with smart control systems (e.g. Loxone, 0-10 V control).

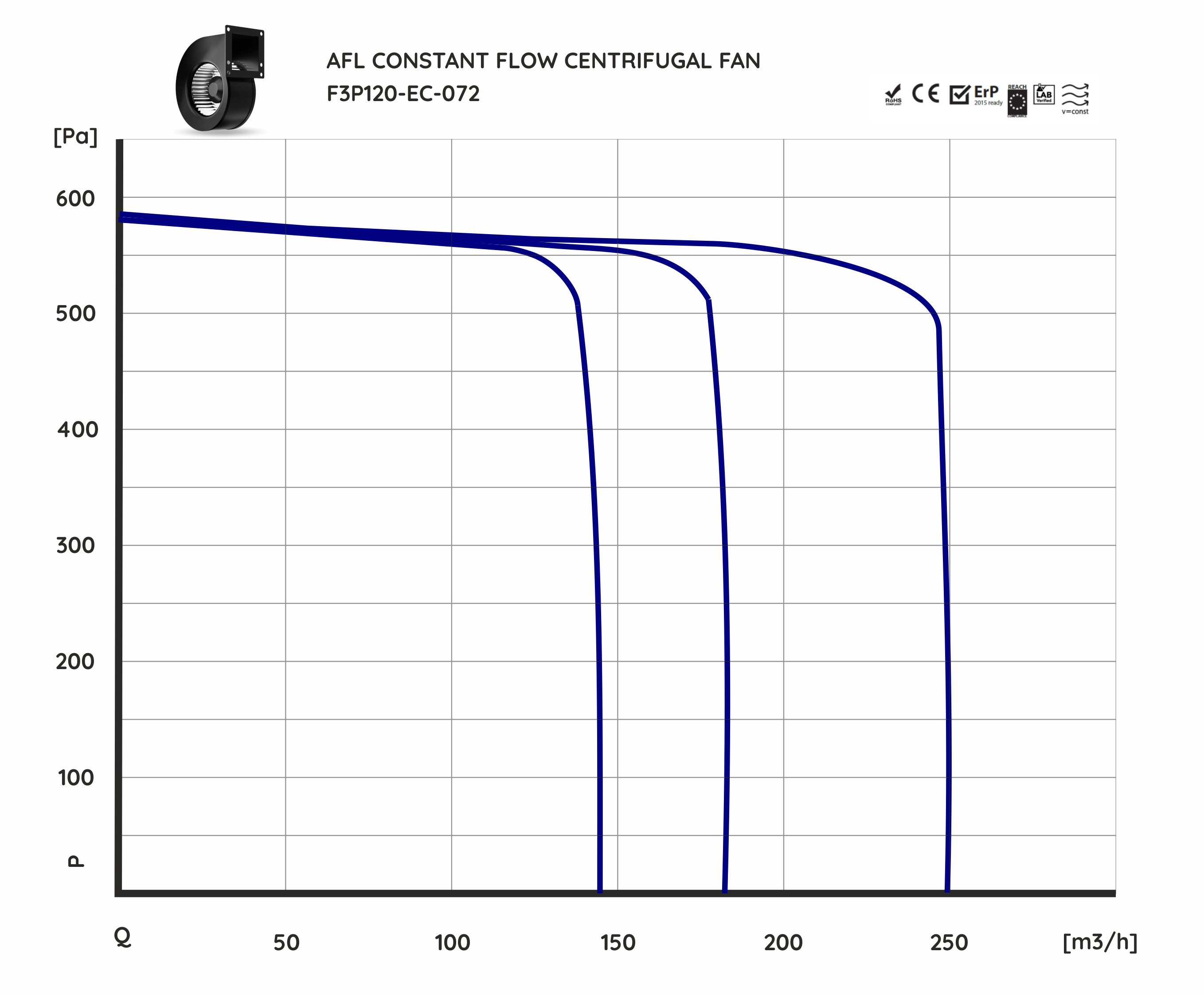

AFL constant flow fans

MAIN ADVANTAGES

  • Automatically maintains a constant flow rate – no manual adjustments.

  • Extreme pressure performance – up to 400 Pa external loss.

  • Energy-saving EC motor – minimal energy consumption.

  • Quiet, reliable and vibration-free.

  • The ideal addition to the RECUBOX® 250 VENT-READY.

  • Installation within 15 minutes.

AFL Motors

Data sheet

EC motor
YES - constant flow system
Rated current [A]
0.25
Power supply [V/Hz]
230V 50-60Hz
Power consumption [W]
35
Operating temperature [°C]
-25 to +60°C
Regulation method
0-10VDC/PWM
Degree of protection
IP44
