We offer a wide range of enthalpy exchangers suitable for most heat recovery units. If you can't find the right model, don't hesitate to contact us – we will be happy to help!

Close

Recuperation heat exchanger RSX-P 03/750 (counter-flow hot air recuperator for air recovery)

Flow rate 1250 m3/hour - Efficiency 93% - Pressure loss 232.6 Pa ....
Flow rate 950 m3/hour - Efficiency 93.5% - Pressure loss 151.5 Pa ....
Flow rate 280 m3/hour - Efficiency 96.1% - Pressure loss 26.2 Pa ....

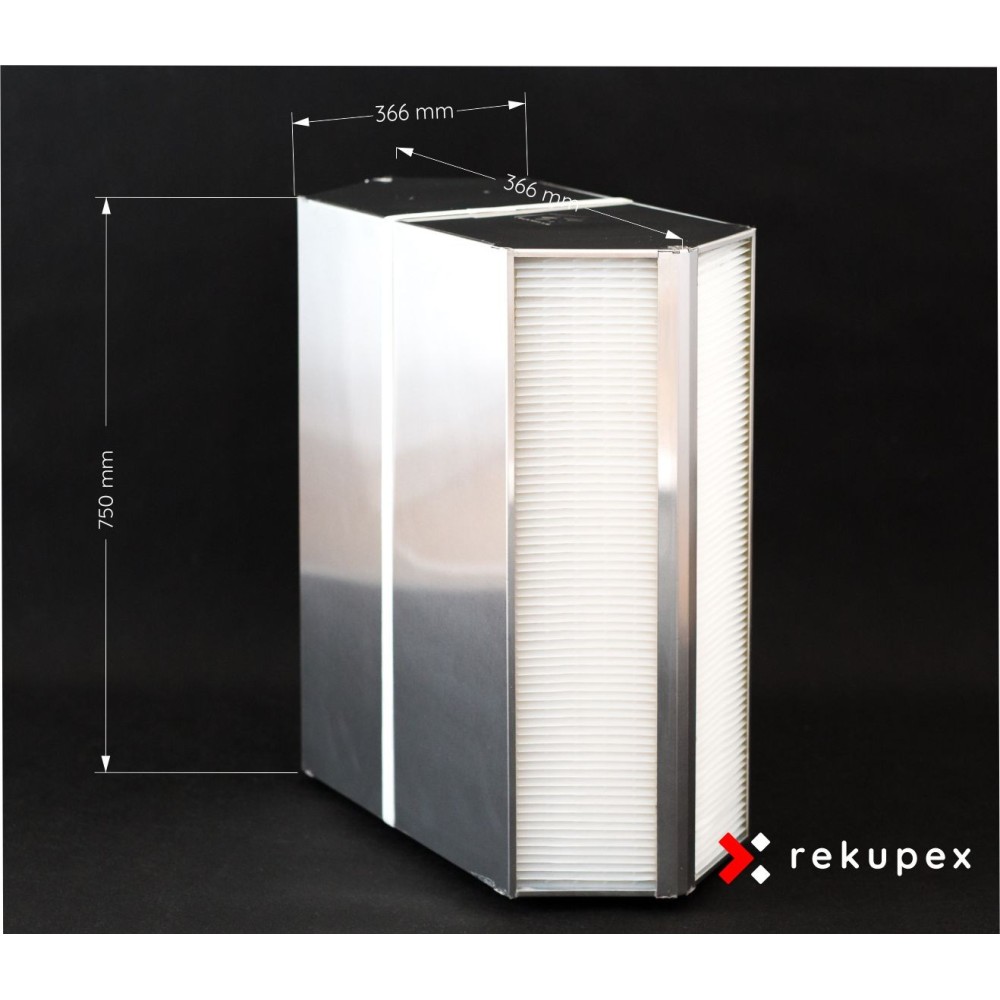

Dimensions: 366 x 366 x 750 mm ....
Weight: 10.21 kg ....
Material: plastic (HPS - high impact polystyrene)

Kč7,399
i
The amount of VAT applied is 0% for the country United States.
Quantity
Product available for orders

RX, RX-P and RSX-P are modern counter-flow exchangers with fins made of durable aluminum and plastic. The counter-flow exchanger is the successor to the less

efficient cross-flow exchanger. The counter-flow exchanger does not transmit moisture or odors. Its efficiency exceeds 95%.
It is thanks to these properties, together with the tested tightness of each manufactured piece, that it finds its use both in heat recovery units of passive houses and in industrial applications.

  • Efficiency up to over 95%
  • Lower pressure losses compared to similar products on the market
  • Each exchanger tested for 100% tightness
  • New slat geometry
  • Ideal for residential units
  • HPS ultrasonically welded slats
  • Easy handling, thanks to handling straps
  • Parameters ensuring high SEC calculation value
  • Ideal for residential units
  • Eurovent, QMS, OHMS, EMS certification



EUROVENT

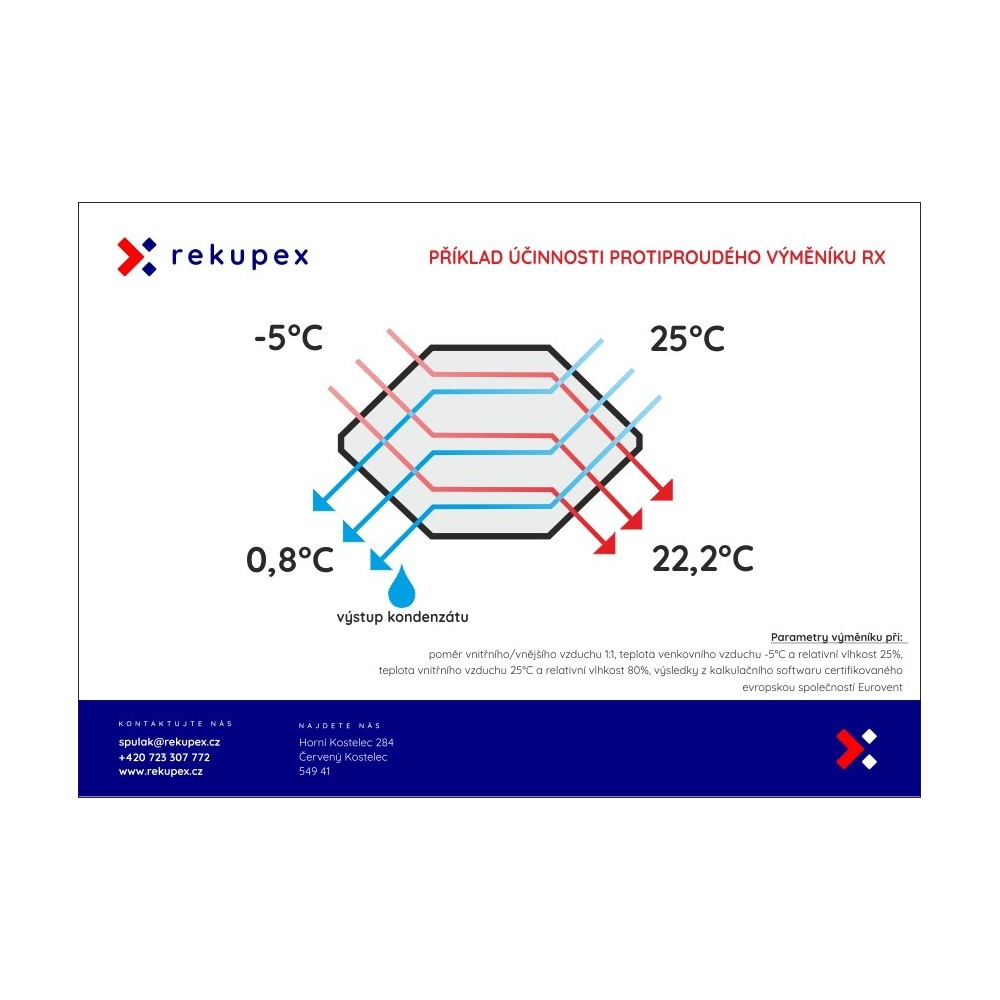

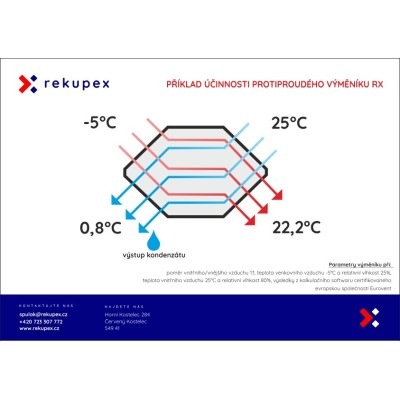

Exchanger parameters at: indoor/outdoor air ratio 1:1, outdoor air temperature -5°C and relative humidity 25%, indoor air temperature 25°C and relative humidity 80%, results from calculation software certified by the European company Eurovent

  • Flow rate 280 m3/hour - Efficiency 95.5% - Frontal velocity 0.5 m/s - Pressure loss - inlet - 26.2 Pa, outlet - 41.2 Pa
  • Flow rate 950 m3/hour - Efficiency 93.5% - Frontal velocity 1.5 m/s - Pressure loss - inlet - 151.5 Pa, outlet - 241.5 Pa
  • Flow rate 1250 m3/hour - Efficiency 93% - Frontal velocity 2.0 m/s - Pressure loss - inlet - 232.6 Pa, outlet - 372.9 Pa

Upon request, we will send you complete exchanger parameters and resulting values by e-mail in the form of parameter sheets in .pdf format, under your desired conditions (humidity, temperature, air volume flow).

In order to respond to your orders as quickly as possible, we keep the most popular exchangers in stock in larger quantities.

Graph of pressure loss - PD [Pa] versus volume flow AV [m3/h] - RSX-P 03/750 heat exchanger

Parameters for the average winter period in the Czech Republic

indoor/outdoor air ratio 1:1, outdoor air temperature 1°C and relative humidity 78%, indoor air temperature 25°C and relative humidity 28%, results from calculation software certified by the European company Eurovent

PD-AV RSX-P 03-750, pressure losses of counterflow heat exchanger for self-help heat recovery unit

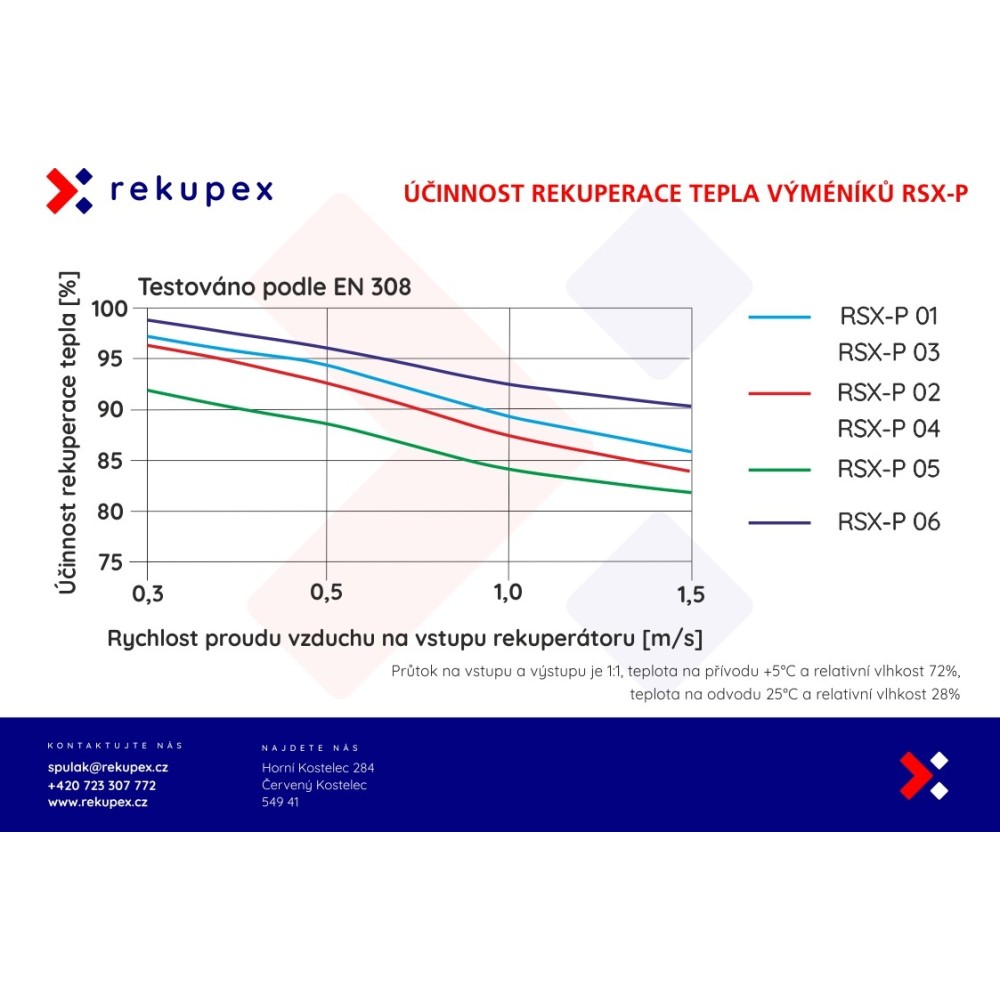

Graph of the dependence of efficiency EFF [%] on the volume flow AV [m3/h] - exchanger RSX-P 03/750

Parameters for the average winter period in the Czech Republic

indoor/outdoor air ratio 1:1, outdoor air temperature 1°C and relative humidity 78%, indoor air temperature 25°C and relative humidity 28%, results from calculation software certified by the European company Eurovent

efficiency on air flow" width="468" height="504" />

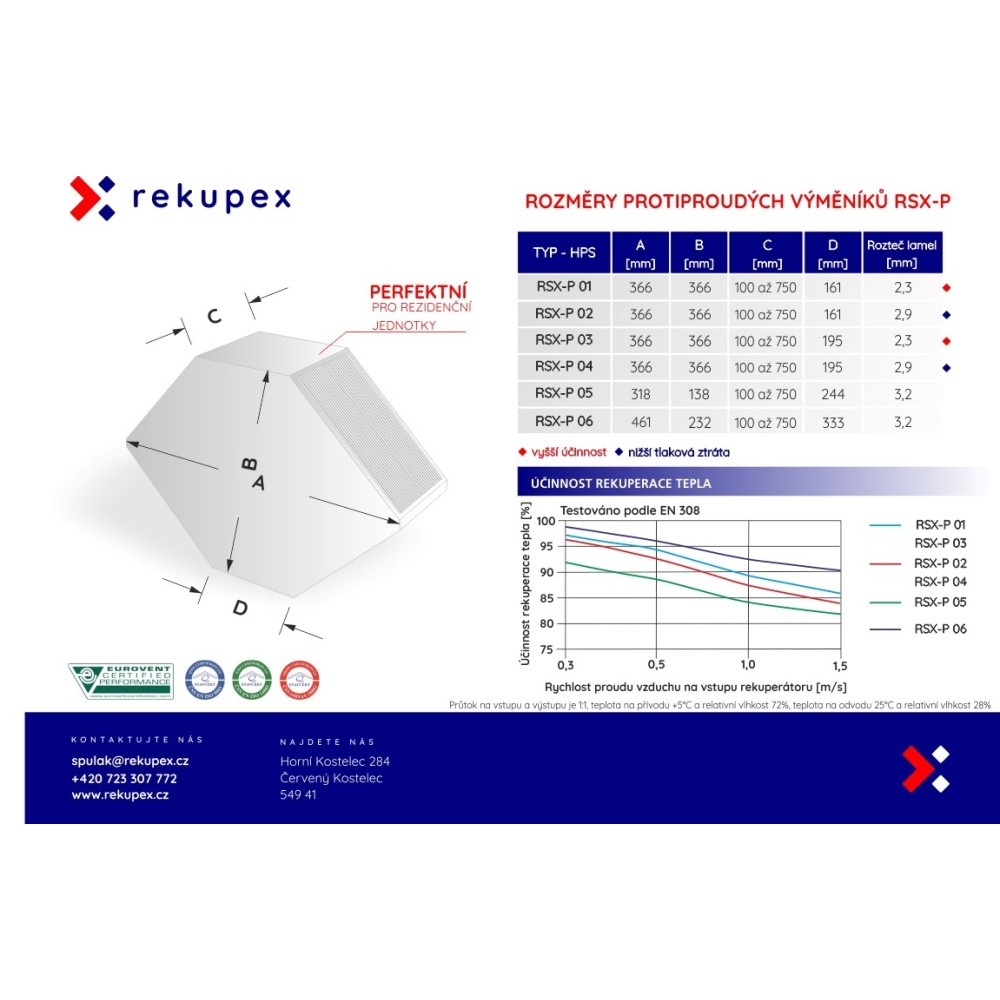

If you do not choose from our offer in the e-shop, there is no problem for us to price you any exchanger according to the table below.

exchangers dimensions and efficiency

Data sheet

Warranty length
36 months
EUROVENT certification:
YES
Slat material:
HPS (hygienic plastic)
Sheathing material:
Aluminum
Highest efficiency at output [m3/hour]:
0 - 1250
Dimensions lxwxh [mm]:
366 x 366 x 750
Blade spacing [mm]:
2.3
Weight [kg]:
10.21
