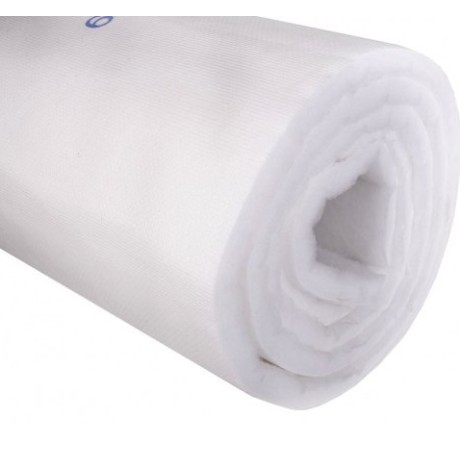

Filter fabric M5, 20 mm, 350 g/m2
Filtration class M5...
Density 350 g/m2 ...
Thickness 20mm...
Roll width 1.6 m...
Selling per 1m2...
Price listed for 1m2...
The Unocel S01407 ISO ePM10 60% (M5) filter medium is suitable for filter boxes and filter frames of recuperation units and is used as a deeper filter medium than the basic G4 filter fabric.

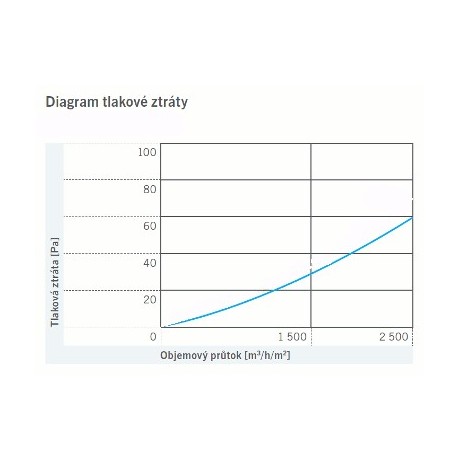

Due to the higher filtration depth, it has higher pressure losses.
| Technical data according to EN 779 | A/300 | |
| Filtration class | M5 | |
| Material | synthetic | |
| Regeneration option | No | |
| Delivery options | rolls, blanks | |
| Efficiency Em (%) | 40-60 | |
| Nominal air flow (m³/h/m²) | 2500 | |
| Initial pressure loss at nominal load (Pa) | 60 | |
| Recommended final pressure loss (Pa) | 450 | |
| Maximum temperature resistance (°C) | 100 | |
