- We recommend the VS EC series fans from the renovated company for use with our larger RECUBOXes®.
- The VS EC fan is a modern, universal fan for use in applications where quiet operation with the possibility of continuous speed regulation and economical operation in any power mode is required.
| |
| DESIGN |

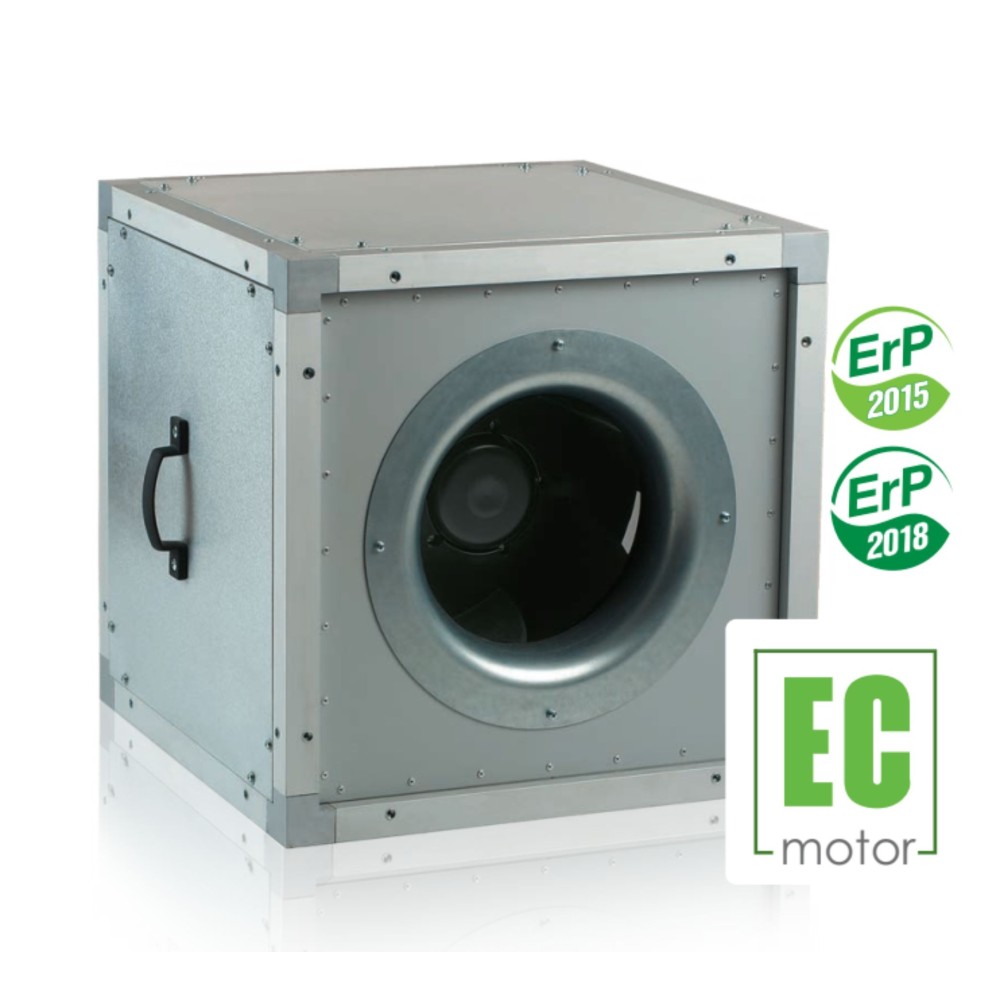

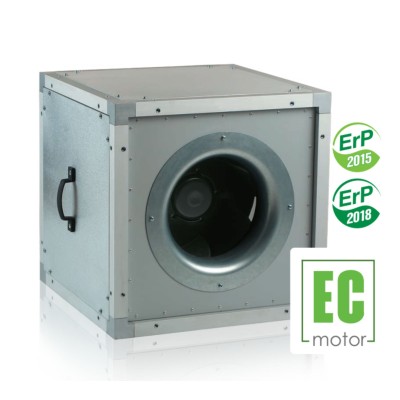

- The fan housing is made of durable aluzinc casing with high corrosion resistance.
- Thanks to thermal and sound insulation , fans can be used both indoors and outdoors
- Insulated aluzinc double-skinned panels are removable and are fixed to an aluminum frame
- The connection sockets also serve as vibration dampers and are available in either a round or square cross-section (these components are not included in the delivery and must be ordered separately)
- The circular connection sockets are equipped with a rubber seal (these components are not included in the delivery and must be ordered separately)
| |
| MOTOR AND IMPELLER |
- High-performance and efficient electronically commutated synchronous motors with backward-curved impeller blades
- These motors represent the most modern solution for maximum energy savings.
- The consumption of an EC motor is 35% lower compared to AC motors
- VENTS VK EC fans have excellent aerodynamic performance with the lowest possible noise level
| - The installed EC motors have the highest efficiency across the entire speed range
- The biggest advantage of electronically commutated motors is efficiency reaching 90%
|
| POWER REGULATION |
- Fans are controlled by an external 0 - 10 V signal
- Fan speed is controlled continuously from 0 to 100% power with excellent efficiency throughout the range
| - The fans can be used in both 50 and 60 Hz power supply frequencies.
- Thanks to the standardized 0 - 10 V control, the use of these fans with heat recovery and air conditioning control systems is problem-free.
|
| CONSTRUCTION |

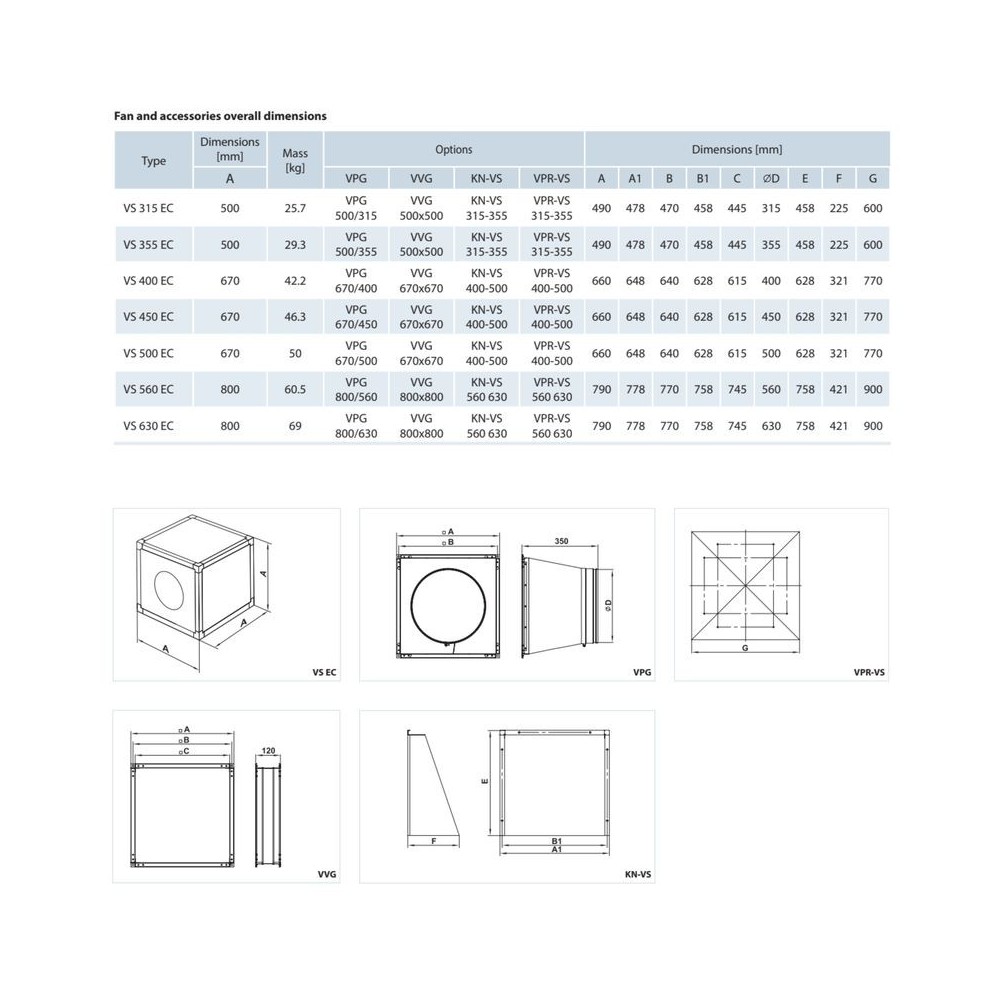

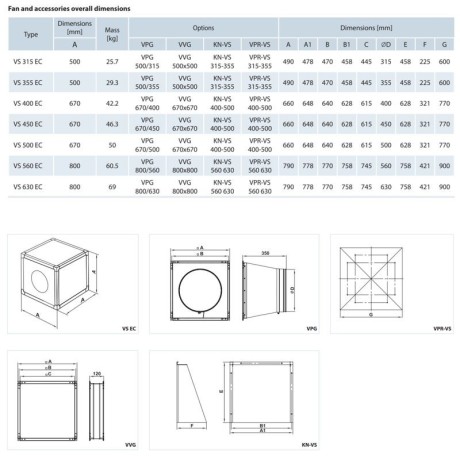

- Fans can be connected to circular or square cross-section ducts
- The fan can be mounted using supports, a hanger or a mounting bracket and is suitable for any mounting position, provided that the indicator on the fan housing corresponds to the direction of air movement in the system.
- When installing the fan, ensure sufficient access for servicing.
| - Installation of fans and electrical connections must be carried out exactly according to the manual and the enclosed electrical wiring diagram.
|
