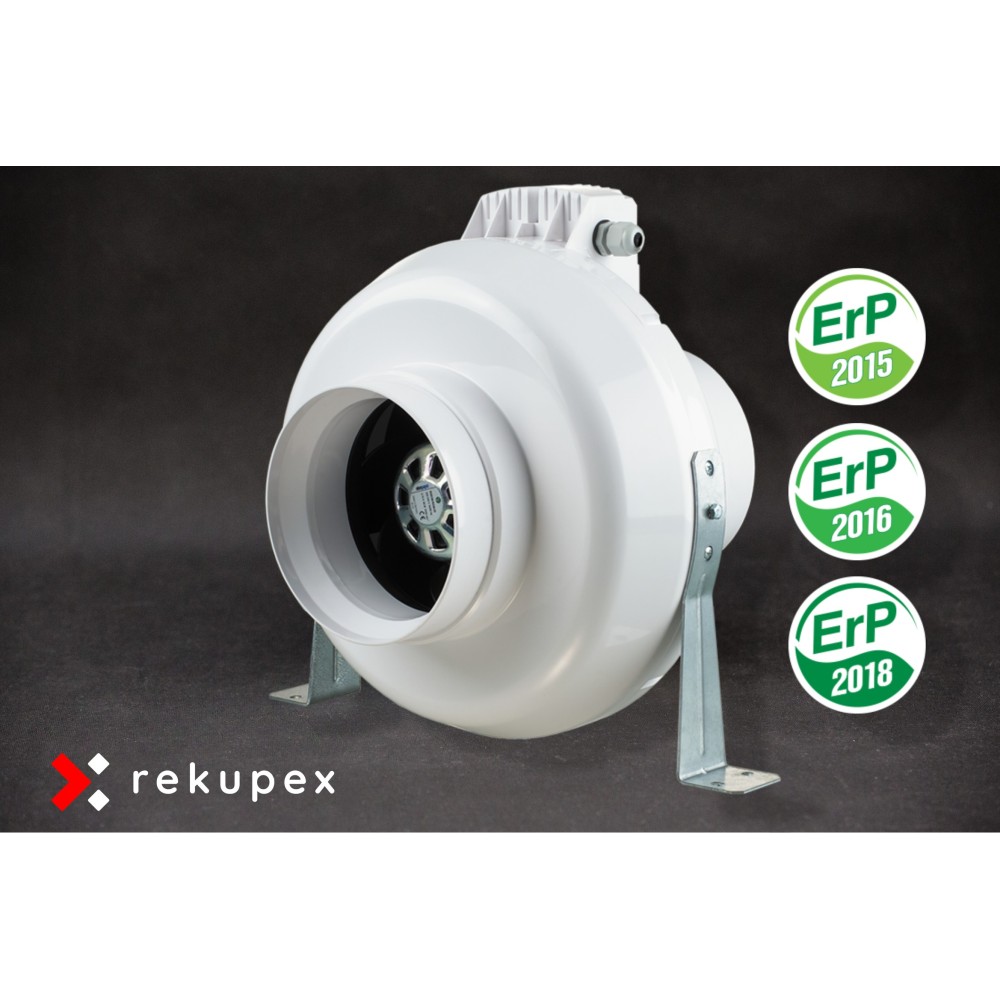

Duct fan VENTS VK 160 EC 630 m3/h with EC motor

Modern EC fan ......

Max. output 630 m3/h .....

Connection diameter 160 mm .....

0 - 10 V control .....

$250.08
i
The amount of VAT applied is 0% for the country United States.
Quantity
In Stock

  • The VENTS VK EC fan is a modern, universal fan for use in applications where quiet operation with the possibility of continuous speed regulation and economical operation in any power mode is required.
  • The fan is also suitable for extracting air with high humidity and for industrial applications
  • Available for round pipes Ø 100, 125, 150, 160, 200, 250 and 315 mm
DESIGN
  • The fan casing is made of durable and harmless ABS plastic.
  • Connection to the EL network and control signal in an airtight housing

MOTOR AND IMPELLER
  • High-performance and efficient electronically commutated synchronous motors with backward-curved impeller blades
  • These motors represent the most modern solution for maximum energy savings.
  • The consumption of an EC motor is 35% lower compared to AC motors
  • VENTS VK EC fans have excellent aerodynamic performance with the lowest possible noise level
  • The installed EC motors have the highest efficiency across the entire speed range
  • The biggest advantage of electronically commutated motors is efficiency reaching 90%
  • The fans, with their ball bearings, are designed for at least 40,000 operating hours
POWER REGULATION
  • Fans are controlled by an external 0 - 10 V signal
  • Fan speed is controlled continuously from 0 to 100% power with excellent efficiency throughout the range
  • The fans can be used in both 50 and 60 Hz power supply frequencies.
  • Thanks to the standardized 0 - 10 V control, the use of these fans with heat recovery and air conditioning control systems is problem-free.
CONSTRUCTION
  • The fans are designed to be placed in the duct at any point in the ventilation system with any rotation
  • In case of vertical installation, protection against water must be ensured
  • The included brackets can be used to mount the fans on the wall.
  • Installation of fans and electrical connections must be carried out exactly according to the manual and the enclosed electrical wiring diagram.
VENTS

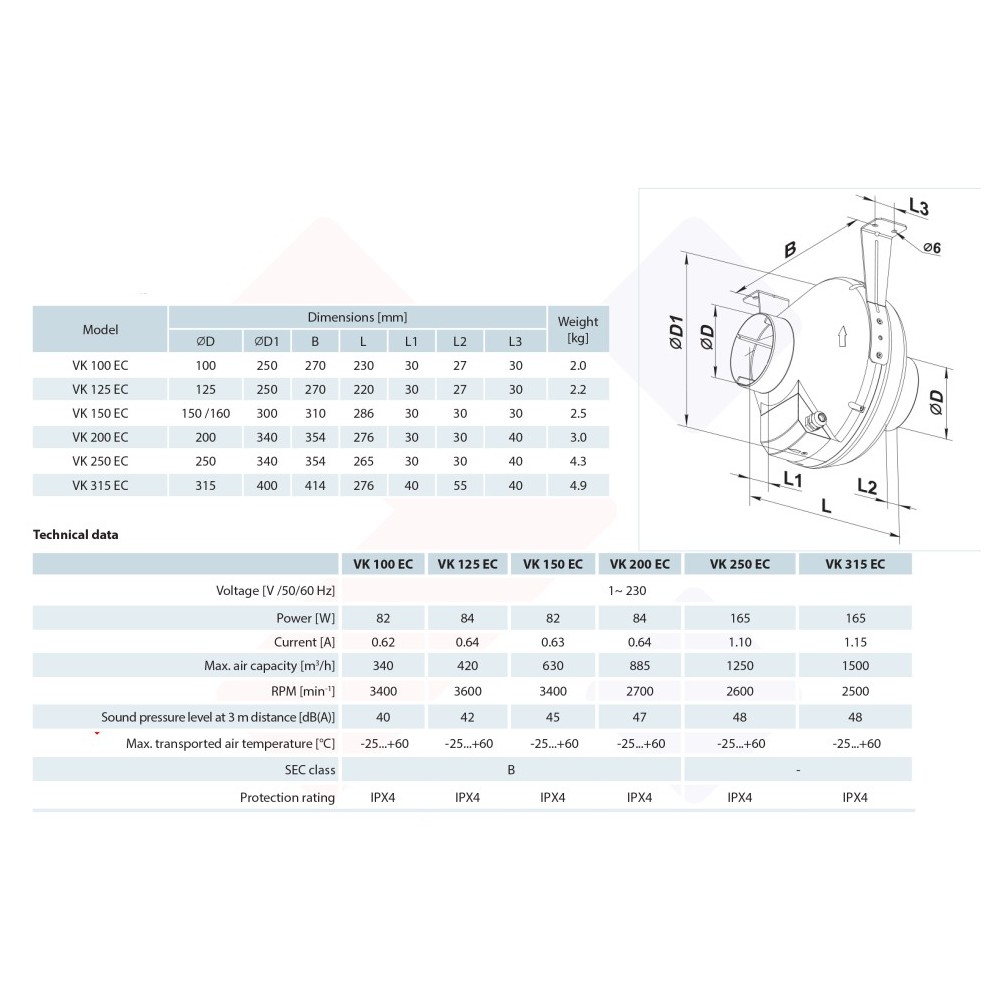

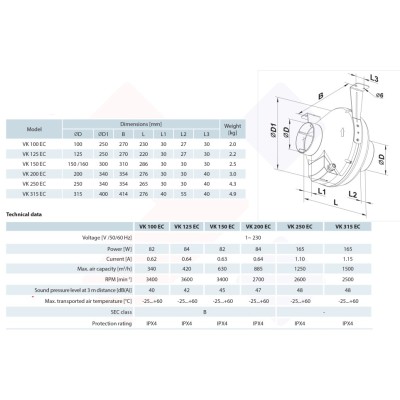

Data sheet

Warranty length
24 months
EC motor
YES
Shell material
ABS
Diameter [mm]
160
Weight [kg]:
2.5
Rated current [A]
0.63
Protection [IP]
X4
Ball bearings
YES
Power supply [V/Hz]
230/50.60
Max. speed [min]
3400
Power consumption [W]
82 (continuously adjustable)
Air flow [m3/h]
630 (continuously adjustable)
Operating temperature [°C]
-25 to +60
Regulation method
0 - 10 V signal
