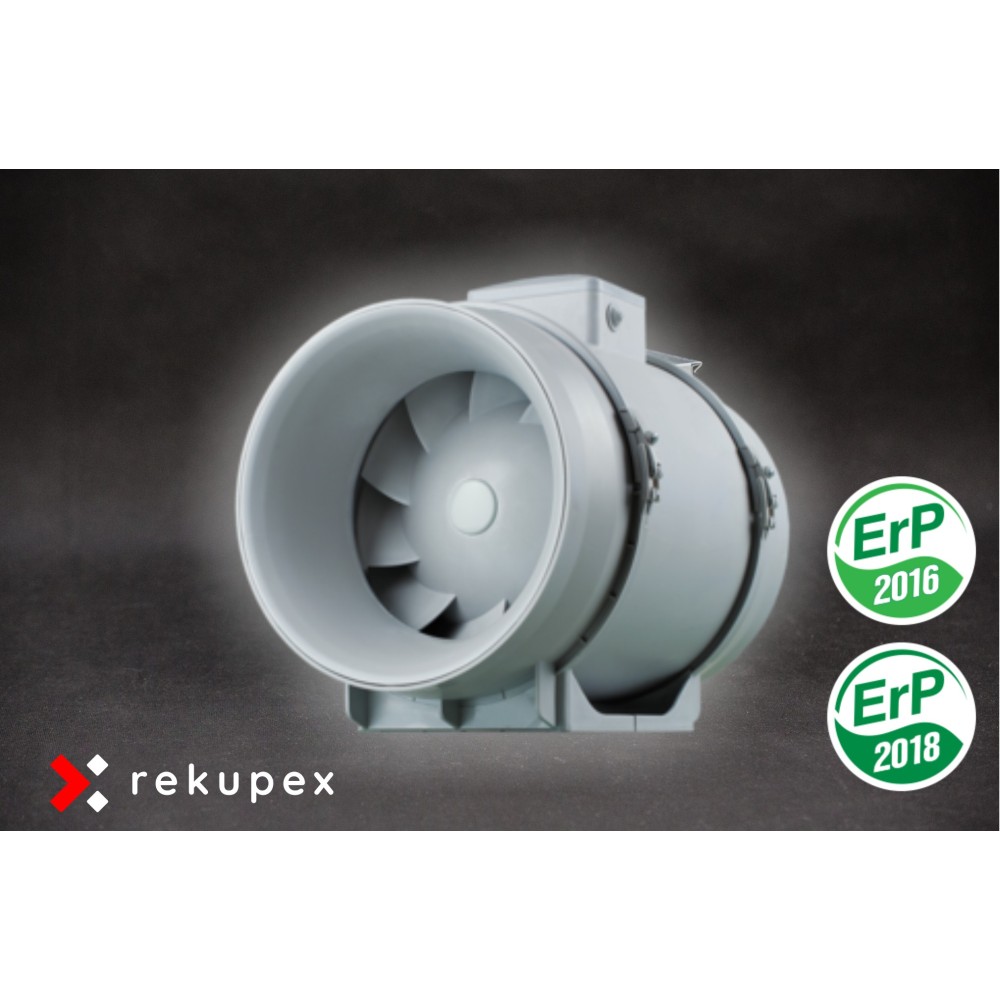

- VENTS TT PRO EC fans combine versatility
and excellent performance of both axial and
centrifugal fans producing a strong air flow and
high pressure while maintaining the typical energy efficiency and response of EC motors.
| - The fan is also suitable for extracting air with high humidity and for industrial applications
- Available for round pipes Ø 100, 125, 150, 200, 250 and 315 mm
|
| DESIGN |
- The fan casing is made of durable, non-toxic polypropylene.
- The fan housing has a flat mounting plate for easy wall mounting.

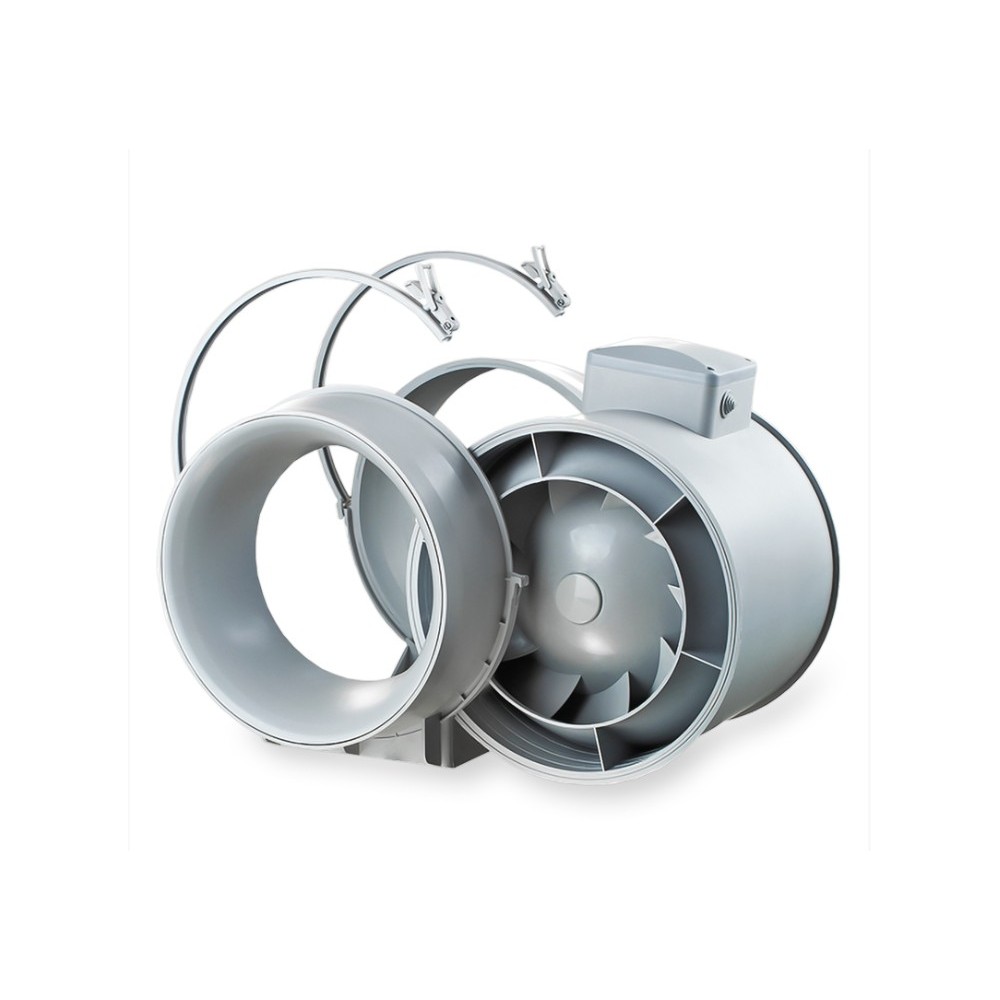

| - The motor with impeller and terminal block are easily removable, allowing for hassle-free and quick maintenance
|
| MOTOR AND IMPELLER |
- The inlet fitting has a profiled nozzle that ensures a smooth flow of air into the fan. Conically shaped impellers with specially profiled blades ensure an increase in air flow velocity, resulting in a higher volumetric air flow and also easier handling of pressure losses
- These motors represent the most modern solution for maximum energy savings.
- The consumption of the EC motor is 35% lower compared to AC motors
- VENTS VK EC fans have excellent aerodynamic performance with the lowest possible noise level
| - The installed EC motors have the highest efficiency across the entire speed range
- The biggest advantage of electronically commutated motors is efficiency reaching 90%
- The fans, with their ball bearings, are designed for at least 40,000 operating hours
|
| POWER REGULATION |

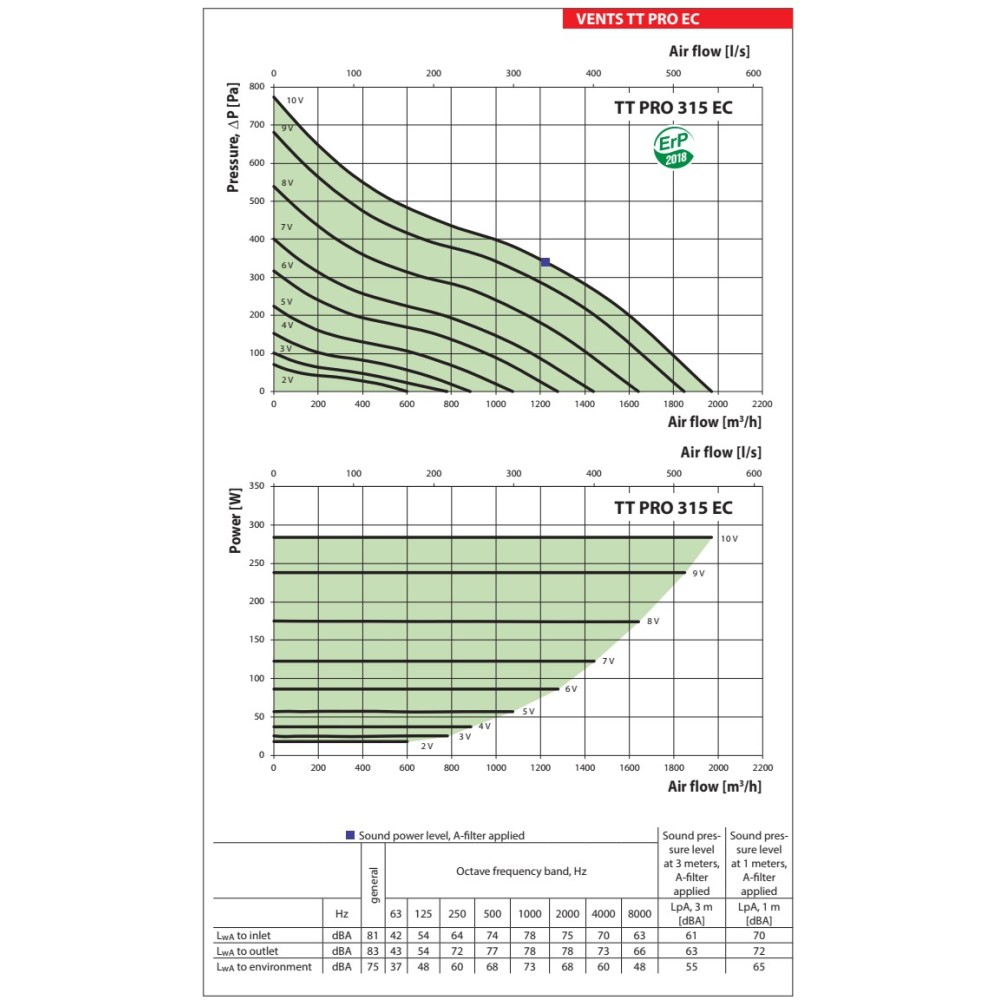

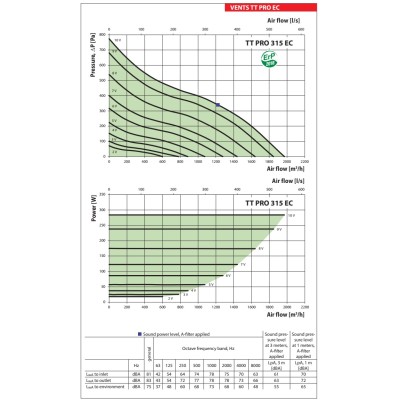

- Fans are controlled by an external 0 - 10 V signal
- Fan speed is controlled continuously from 0 to 100% power with excellent efficiency throughout the range
| - The fans can be used in both 50 and 60 Hz power supply frequencies.
- Thanks to the standardized 0 - 10 V control, the use of these fans with heat recovery and air conditioning control systems is problem-free.
|
| CONSTRUCTION |
- Multiple fans can be installed in a single system in parallel to increase output capacity or in series
increase the working pressure.
| - Installation of fans and electrical connections must be carried out exactly according to the manual and the enclosed electrical wiring diagram.
|
