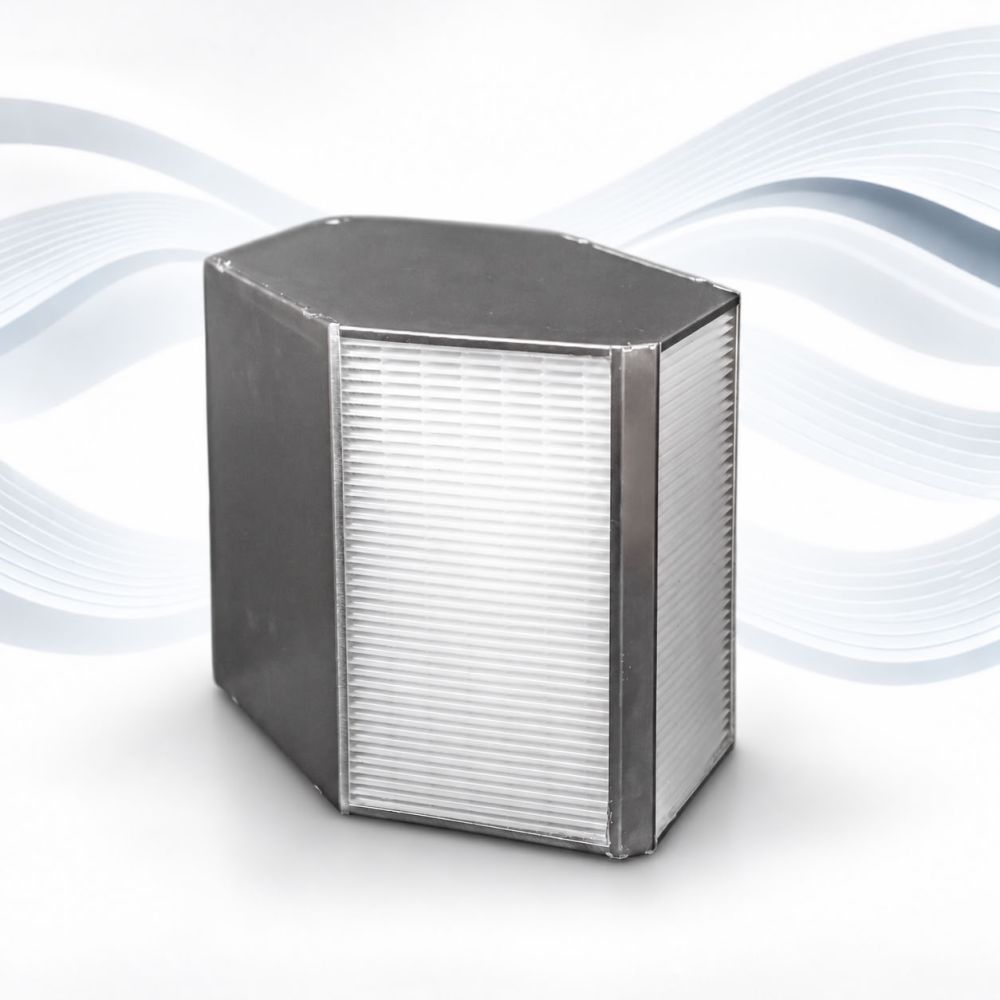

Recuperation heat exchanger RX-P 03/200 (counter-flow hot air recuperator for air recovery)

Flow rate 260m3/hour - Efficiency 93.1% ....
Flow rate 160m3/hour - Efficiency 93.8% ....
Flow rate 55m3/hour - Efficiency 95.4% ....
Dimensions: 455 x 230 x 200 mm ....
Weight: 2.61 kg ....
Material: plastic (HPS - high impact polystyrene)

Kč2,626
i
The amount of VAT applied is 0% for the country United States.
Quantity
In Stock

We keep the RX-P 03/200 exchanger in stock and ship IMMEDIATELY after receiving your order.

RX and RX-P are modern counter-flow exchangers with fins made of durable aluminum and plastic. The counter-flow exchanger is the successor to the less
efficient cross-flow exchanger. The counter-flow exchanger does not transmit moisture or odors. Its efficiency exceeds 92%.
It is thanks to these properties, together with the tested tightness of each manufactured piece, that it finds its use both in heat recovery units of passive houses and in industrial applications.

  • Efficiency up to over 92%
  • Excellent value for money
  • Each exchanger tested for 100% tightness
  • New slat geometry
  • Ideal for residential units
  • HPS ultrasonically welded slats
  • Easy handling, thanks to handling straps
  • Built-in BY-PASS option
  • Parameters ensuring a higher SEC calculation value
  • Eurovent, QMS, OHMS, EMS certification



EUROVENT

Exchanger parameters at: indoor/outdoor air ratio 1:1, outdoor air temperature -5°C and relative humidity 25%, indoor air temperature 25°C and relative humidity 80%, results from calculation software certified by the European company Eurovent

  • Flow rate 50m3/hour - Efficiency 95.4% - Frontal velocity 0.5 m/s - Pressure loss - inlet - 16.7 Pa, outlet - 28.63 Pa
  • Flow rate 160m3/hour - Efficiency 93.8% - Frontal velocity 1.5 m/s - Pressure loss - inlet - 114.8 Pa, outlet - 180.9 Pa
  • Flow rate 260m3/hour - Efficiency 93.1% - Frontal velocity 2.5 m/s - Pressure loss - inlet - 230.5 Pa, outlet - 313.1 Pa

Upon request, we will send you complete exchanger parameters and resulting values by e-mail in the form of parameter sheets in .pdf format, under your desired conditions (humidity, temperature, air volume flow).

Graph of pressure loss - PD [Pa] versus volume flow AV [m3/h] - RX-P 03/200 exchanger

Parameters for the average winter period in the Czech Republic

indoor/outdoor air ratio 1:1, outdoor air temperature 1°C and relative humidity 78%, indoor air temperature 25°C and relative humidity 28%, results from calculation software certified by the European company Eurovent

PD-AV RX-P 03-200

Graph of the dependence of efficiency EFF [%] on the volume flow AV [m3/h] - exchanger RX-P 03/200

Parameters for the average winter period in the Czech Republic

indoor/outdoor air ratio 1:1, outdoor air temperature 1°C and relative humidity 78%, indoor air temperature 25°C and relative humidity 28%, results from calculation software certified by the European company Eurovent

eff

The heat recovery exchanger can be installed in any position in the unit (cabinet, box).

heat recovery exchanger on a wide tray

Installation on a narrow tray.

Recommended slope of 3° to the waste heat outlet for good condensate drainage.

heat recovery exchanger on the front surface

Installation on the front surface

Recommended slope of 5° to the waste heat outlet for good condensate drainage.

heat recovery exchanger on a narrow tray

Installation on a narrow tray

This position is only possible if the entire weight of the exchanger does not rest on a narrow tray.

Thanks to the precise processing of the exchanger dimensions, their mutual combination is possible to increase efficiency and maximum air flow.

combination

In order to respond to your orders as quickly as possible, we keep the most popular exchangers in stock in larger quantities.

If you do not choose from our offer in the e-shop, there is no problem for us to price you any exchanger according to the table below.

dimensions of the air-to-air exchanger

Data sheet

Warranty length
36 months
EUROVENT certification:
YES
Slat material:
Plastic (HPS - high impact polystyrene)
Sheathing material:
Aluminum
Highest efficiency at output [m3/hour]:
0 - 250
Dimensions lxwxh [mm]:
455 x 230 x 200
Blade spacing [mm]:
3.0
Weight [kg]:
2.61
Operating temperature [°C]
-20 to +60
