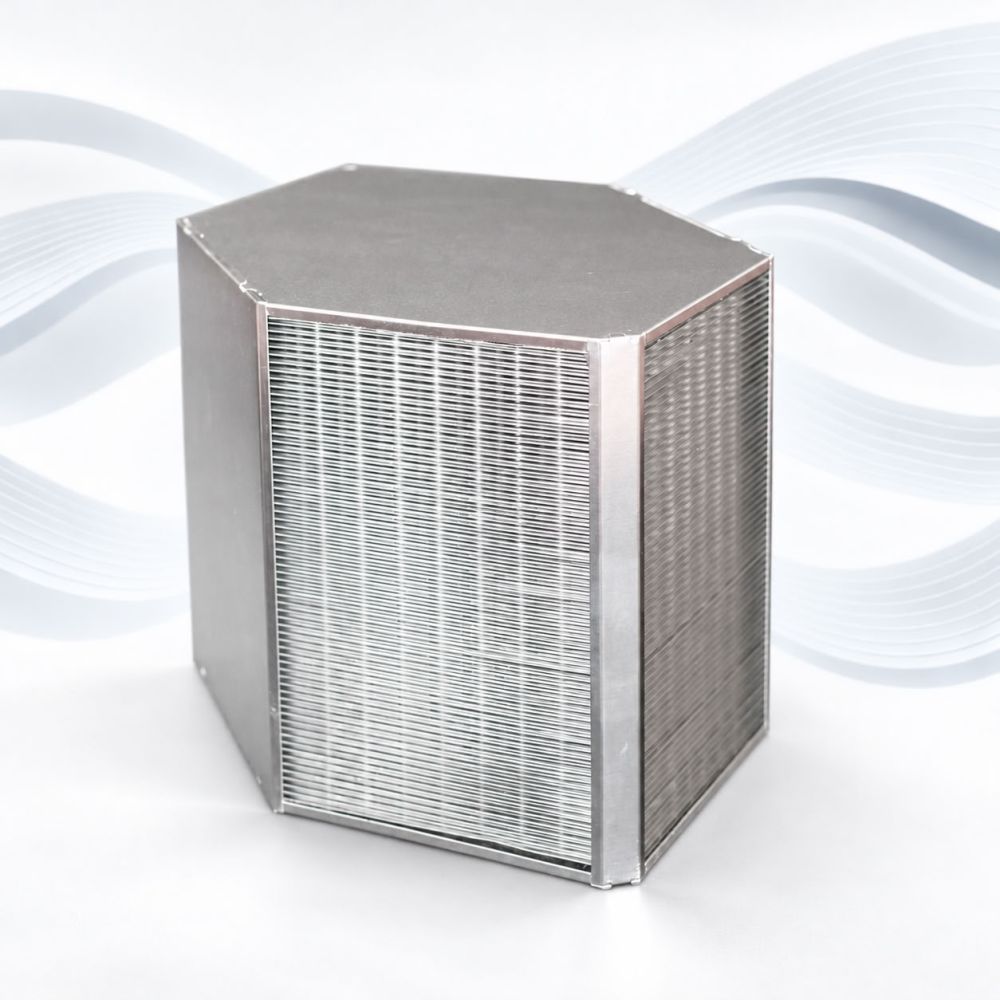

Recuperative heat exchanger RX 02/200 (recuperator for air recovery)

We keep the RX 02/200 exchanger in stock in large quantities and are able to ship it immediately.

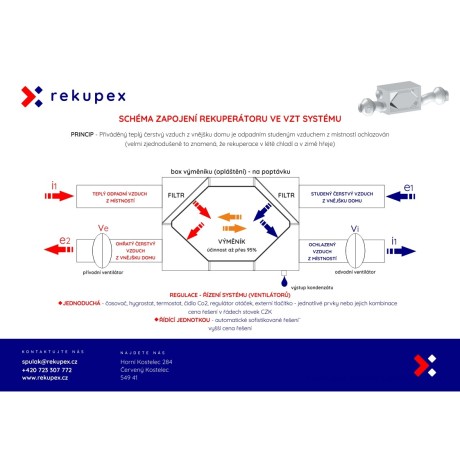

RX and RX-P are modern counter-flow exchangers with fins made of durable aluminum and plastic. The counter-flow exchanger is the successor to the less
efficient cross-flow exchanger. The counter-flow exchanger does not transmit moisture or odors. Its efficiency exceeds 95%.
It is thanks to these properties, together with the tested tightness of each manufactured piece, that it finds its use both in heat recovery units of passive houses and in industrial applications.

• Efficiency up to over 95%
• Excellent value for money
• The best balance between pressure loss and efficiency
• Specially developed fin geometry for optimal heat transfer properties
• 100% leak testing
• Double seam technology for the entire product line = best tightness on the market
• Lengths of all sizes up to 950 mm (in one piece)

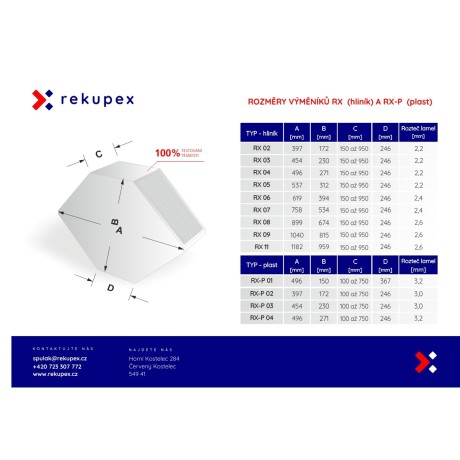

• Dimensions: 397 x 172 x 200 mm
• Weight: 2.13 kg
• Material: aluminum
• Eurovent, ILH, TÜV, EAC, QMS, OHMS, EMS certifications

• Flow rate 50m3/hour - Efficiency 95.1% - Frontal velocity 0.5 m/s - Pressure loss - inlet - 22.8 Pa, outlet - 33.6 Pa
• Flow rate 120m3/hour - Efficiency 94.2% - Frontal velocity 1.5 m/s - Pressure loss - inlet - 85.4 Pa, outlet - 130.3 Pa
• Flow rate 210m3/hour - Efficiency 93.6% - Frontal velocity 2.5 m/s - Pressure loss - inlet - 225.2 Pa, outlet - 347.6 Pa

Upon request, we will send you complete exchanger parameters and resulting values by e-mail in the form of parameter sheets in .pdf format, under your desired conditions (humidity, temperature, air volume flow).

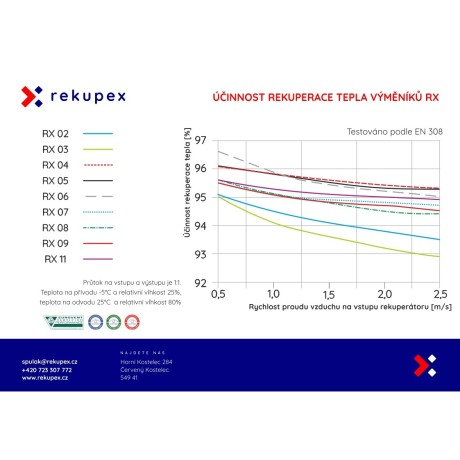

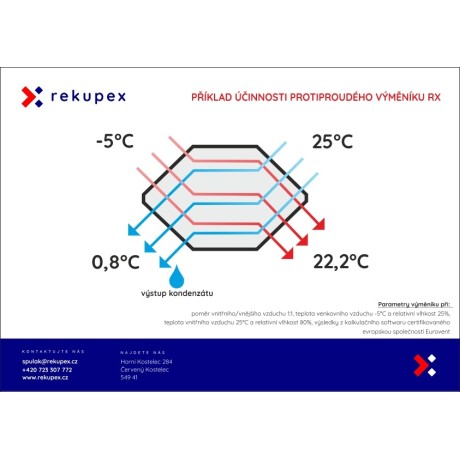

Efficiency of RX counterflow exchangers

Graph of pressure loss - PD [Pa] versus volume flow AV [m3/h] - RX 02/200 exchanger

Parameters for the average winter period in the Czech Republic

indoor/outdoor air ratio 1:1, outdoor air temperature 1°C and relative humidity 78%, indoor air temperature 25°C and relative humidity 28%, results from calculation software certified by the European company Eurovent

Graph of the dependence of efficiency EFF [%] on the volume flow AV [m3/h] - exchanger RX 02/200

Parameters for the average winter period in the Czech Republic

ratio indoor/outdoor air ratio 1:1, outdoor air temperature 1°C and relative humidity 78%, indoor air temperature 25°C and relative humidity 28%, results from calculation software certified by the European company Eurovent

The heat recovery exchanger can be installed in any position in the unit (cabinet, box).

	Installation on a narrow tray. Recommended slope of 3° to the waste heat outlet for good condensate drainage.
	Installation on the front surface Recommended slope of 5° to the waste heat outlet for good condensate drainage.
	Installation on a narrow tray This position is only possible if the entire weight of the exchanger does not rest on a narrow tray.
