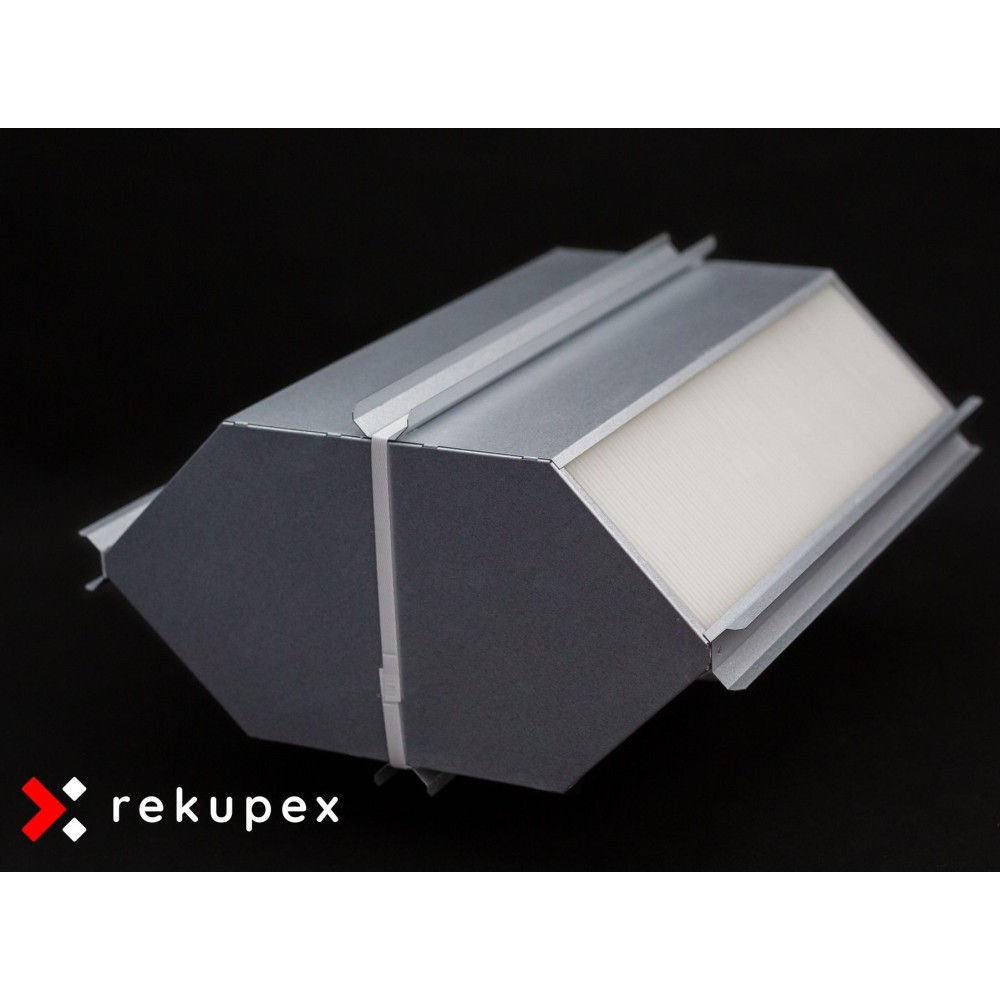

Brink Renovent Excellent 300/400/450 - entalpijski izmjenjivač
Izvrstan izmjenjivač entalpije, proizveden korištenjem vrhunske njemačke tehnologije.

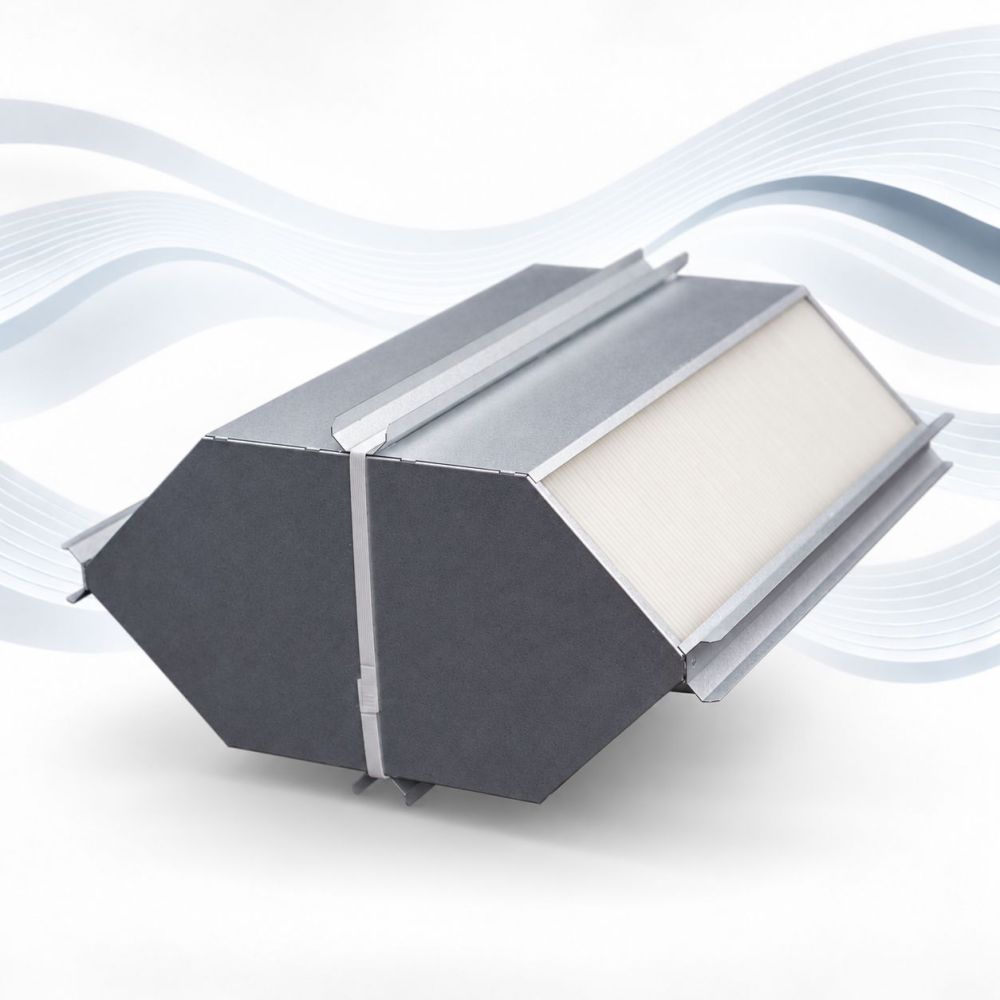

Fotografija ne mora prikazivati stvarni izgled izmjenjivača.
Ovaj entalpijski izmjenjivač je 100 % kompatibilan s navedenom rekuperacijskom jedinicom i zahvaljujući svojim svojstvima može ponuditi bolje parametre od originalnog entalpijskog izmjenjivača.
Međutim, nije originalni entalpijski izmjenjivač isporučen od proizvođača jedinice.
Ako budemo imali bilo kakvih sumnji u to da ste naručili pravi tip izmjenjivača, kontaktirat ćemo vas prije slanja kako bismo sve uskladili.
- Nova generacija entalpičnih protustrujnih izmjenjivača topline nudi alternativu standardnim modelima izmjenjivača topline. Pri radu u stambenim prostorima s niskom unutarnjom vlagom, ovi izmjenjivači topline održavaju ugodnu unutarnju klimu povratom vlage iz ispušnog zraka.
- Ovaj proces je moguć zahvaljujući jedinstvenoj polimernoj membrani s mikroporoznom strukturom koja omogućuje prolaz molekula vodene pare, ali blokira prolaz bakterija, klica, plijesni, plinova i mirisa. Ovaj dizajn omogućuje održavanje visokih higijenskih standarda čak i u sanitarnim prostorima, kuhinjama, laboratorijima i drugim prostorima sa stalnim izvorima onečišćenja zraka.
- Dovodni i odvodni tokovi zraka kreću se u suprotnim smjerovima u zračnim kanalima ploča izmjenjivača topline. Osjetna i latentna toplinska energija prenosi se pomoću membrane izmjenjivača topline.
- Usporedba standardnog pločastog izmjenjivača topline i entalpskog izmjenjivača topline pokazuje da standardni izmjenjivači topline imaju veću učinkovitost povrata osjetne topline u usporedbi s entalpskim izmjenjivačima topline, ali entalpski izmjenjivači topline imaju veću ukupnu učinkovitost povrata topline zbog povrata latentne topline iz vodene pare.
DIZAJN
- Masa koja akumulira toplinu sastoji se od posebnih ploča raspoređenih kao kanali koji omogućuju kretanje zračnih struja jedna prema drugoj.
- Geometrija lamela je razvijena kako bi se maksimizirala učinkovitost prijenosa topline i vlage
- Kućište izmjenjivača je ekstra čvrsto, što jamči dugi vijek trajanja
SVOJSTVA MEMBRANA KOJA SE KORISTI NA IZMJENJIVAČU:
- Membrana je polimerni materijal s visokim koeficijentom toplinske vodljivosti i prijenosa vlage.
- Membrana propušta vodenu paru, ali blokira prolaz bioloških onečišćujućih tvari, virusa, plinova i stranih mirisa.
- Membrana ima poseban premaz otporan na kiseline, lužine i soli. Ovaj premaz je potreban kako bi se osigurao stabilan rad tijekom rada izmjenjivača.
- Membrana je otporna na kidanje i probijanje.
- Membrana ima izvrsnu otpornost na utjecaje okoline i temperaturne fluktuacije od -25 °C do + 50 °C.
- Membrana osigurava nisko propuštanje (<1%).
- Zahvaljujući svojoj strukturi, membrana štiti prostore od prodiranja virusa SARS-CoV-2, bakterija, spora plijesni, plinova (CO2/SF6) i raznih mirisa.

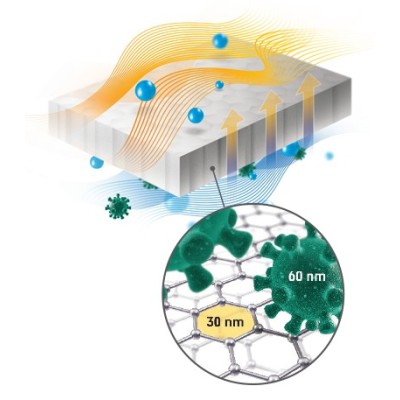

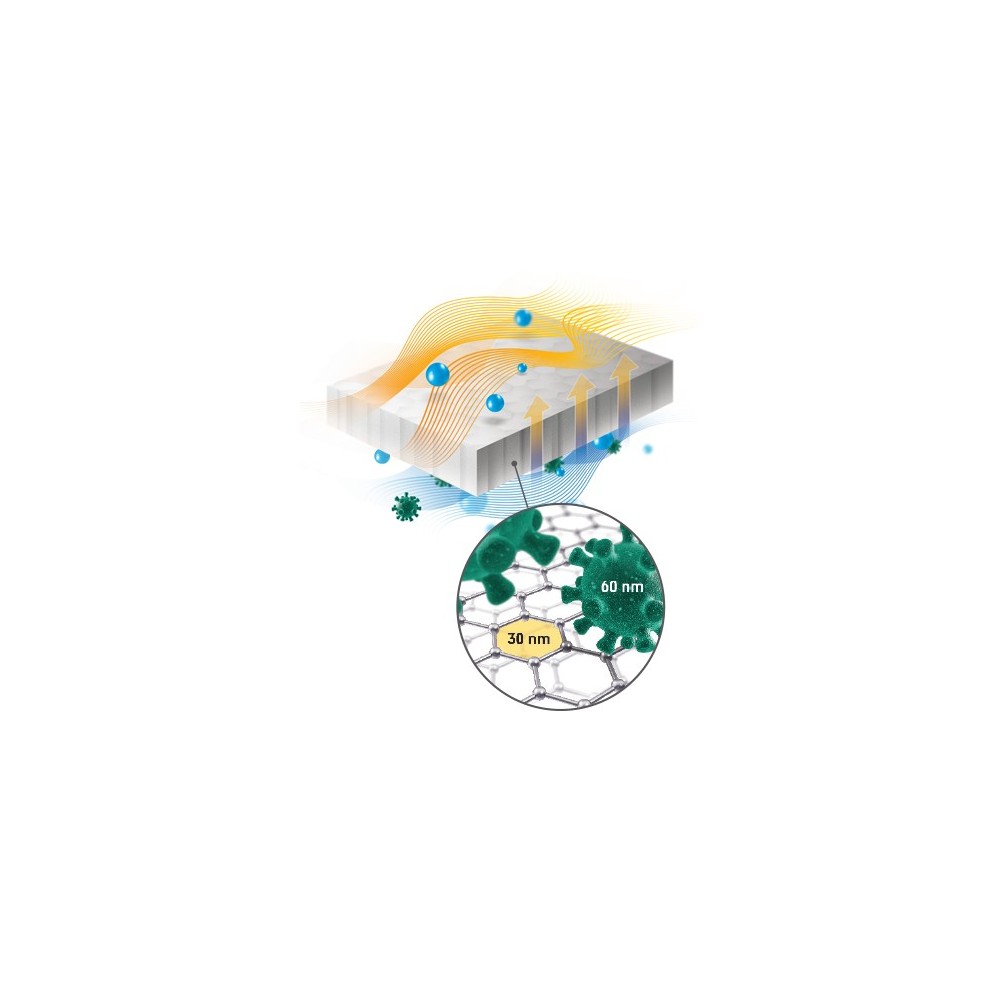

- Membrana blokira prodiranje čestica promjera >30 nm. Za informaciju: promjer virusa SARS-CoV-2 kreće se od 60 nm do 140 nm.
- Za brtvljenje i spajanje letvica i kućišta koristi se visokokvalitetno sintetičko polimerno ljepilo koje se tali u prehrambenoj i farmaceutskoj industriji.
UVJETI RADA I SKLADIŠTENJA
- Korišteni materijali omogućuju rad, skladištenje i transport izmjenjivača topline u temperaturnim uvjetima od -25 do +50 °C.
- Skladištenje izmjenjivača topline na izravnoj sunčevoj svjetlosti je zabranjeno.
- Ovi entalpijski izmjenjivači topline se ne zagrijavaju zimi u normalnim radnim uvjetima.dolazi.
ODRŽAVANJE IZMJENJIVAČA TOPLINE
- Izmjenjivač se ne može koristiti bez filtera ugrađenih na oba ulaza za zrak.
- Filtre treba redovito provjeravati i po potrebi mijenjati.
- Očistite izmjenjivač ispiranjem toplom vodom do 30°C.
- Ne koristite mlazove vode pod visokim tlakom ili komprimirani zrak za čišćenje izmjenjivača, jer bi to moglo oštetiti ultra tanku membranu.
 |
|
 |
|
Podaci
- Materijal letvica:
- HPS (higijenska plastika) + polimerna membrana
- Materijal za oblaganje:
- Aluzinc
- Radna temperatura [°C]
- Od -20 do +50
- Proizvođač jedinice
- Rub
- Zemlja podrijetla
- Njemačka
Posebne reference
- ean13
- 8592919271340
RECUTECH are equipped with the latest enthalpic membrane METALPIC. They excel in top-class heat and humidity recovery, high resistance to pressure differences, and long service life. They are among the most advanced enthalpic heat exchangers currently available on the market.

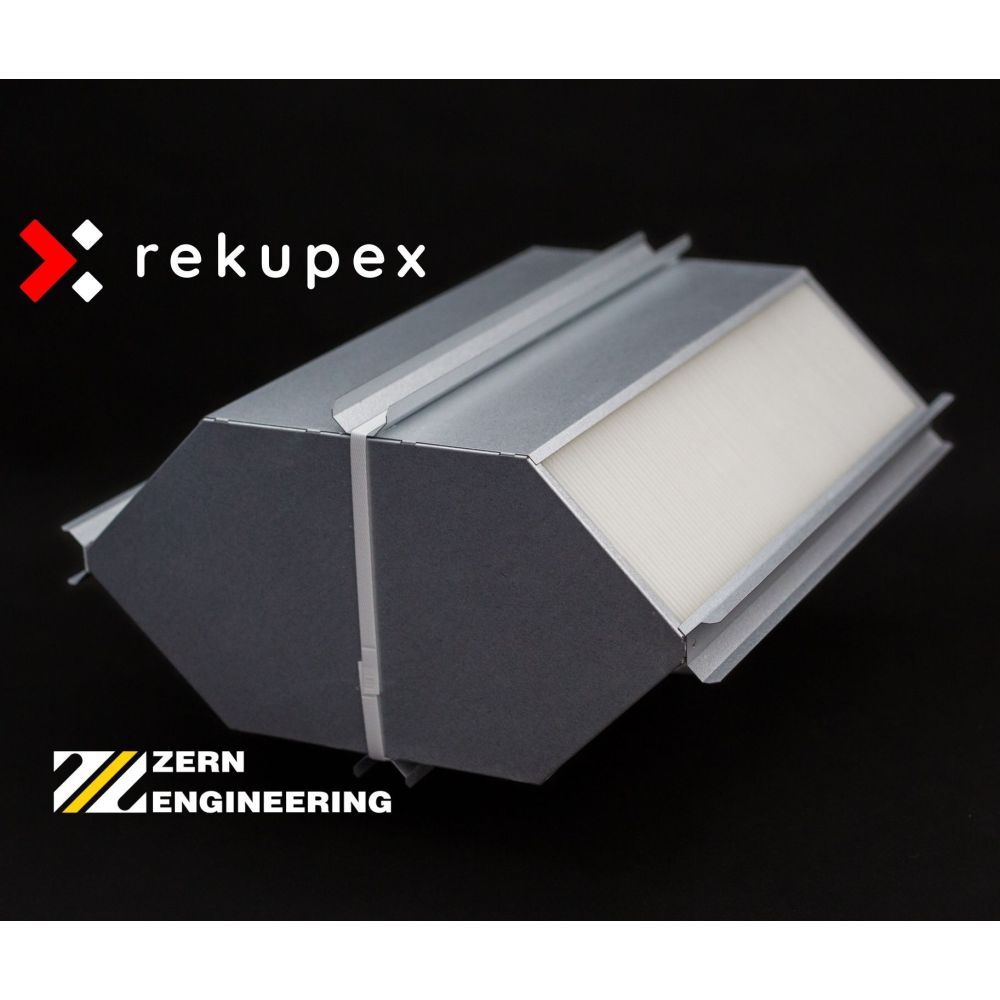

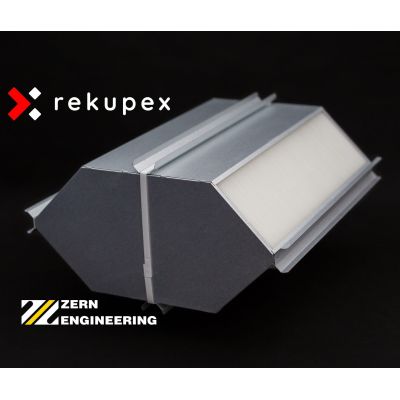

ZERN are fully plastic enthalpic heat exchangers, very efficient, with slightly better moisture transfer, but with higher pressure loss.
No, never block the condensate drain.
Even though enthalpic heat exchangers produce only a minimal amount of condensate due to moisture transfer, in severe frost and specific humidity conditions, condensate can still occur. Blocking the drain could cause irreversible damage to your unit.
Protože entalpický výměník přenáší i vlhkost, mohlo by se zdát, že riziko vzniku plísní je vyšší. Ve skutečnosti však veškerá vlhkost odchází pryč spolu s čerstvým vzduchem, takže riziko vzniku plísní nehrozí.
Naše doporučení je v zimních měsících jednotku nikdy nevypínat, aby byl odvod vlhkosti zajištěn nepřetržitě. Pokud byste přesto potřebovali jednotku odstavit, vyjměte výměník, propláchněte jej čistou vodou, důkladně vysušte a teprve poté jej vraťte zpět.
Yes, installation is simple. Just follow the instructions provided with your unit. As with a standard exchanger, it needs to be removed occasionally for cleaning – the process is the same, except that you put the enthalpic exchanger back in instead.
I am not sure about the type of exchanger in my unit, or I did not find my unit type in your e-shop. What should I do?
Feel free to contact us with any unit model. We will do our utmost to provide you with a 100% compatible exchanger, regardless of the type of ventilation unit you have.
In some cases, the exchangers we supply are identical to the original parts used by the unit manufacturers, and in many cases, our exchangers are even of higher quality. However, we must clearly state that we are not official distributors of spare parts from the unit manufacturers. Transparency is very important to us.
An enthalpic heat exchanger should be used all year round. In winter, it prevents excessive drying of the indoor air, and in summer, it helps maintain comfortable humidity and temperature by reducing heat transfer and returning part of the moisture to the fresh supply air. This increases comfort and saves energy in every season.
No, caring for an enthalpic heat exchanger is no more demanding than for a standard one. Maintenance is described in the user manual and in our video guide. In short: first vacuum the exchanger with a soft brush attachment, then rinse it with clean water (max. 50 °C). Never use compressed air or a pressure washer.
After rinsing, allow all water to drain completely. Remaining moisture can be carefully blown out with a regular hairdryer, but always use cold air only. Once the exchanger is completely dry, place it back into the unit in the same orientation as before removal.
We do not recommend using chemicals for cleaning. Only if disinfection is absolutely necessary may a weak solution of peracetic acid be used, followed by very thorough rinsing with clean water.
Yes, the use of an enthalpic heat exchanger is completely safe. The membrane is designed to allow only water vapor molecules to pass through, while blocking bacteria, odors, and harmful substances. All enthalpic heat exchangers we offer are hygienically tested and certified.
An enthalpic heat exchanger will always help improve indoor humidity, as it transfers part of the moisture from exhaust air back into the fresh supply air. It cannot be guaranteed that ideal levels (typically 40–60%) will be achieved, since the final humidity also depends on other factors – such as household habits, number of occupants, natural moisture sources, and outdoor climate conditions.
However, we can guarantee that humidity will improve, because it is physically impossible for the return of moisture not to contribute to higher values.
The enthalpic plate works the same from both sides, so the orientation of the plate itself does not matter. However, it is essential that after cleaning the exchanger is always reinstalled in the same orientation, ensuring that the channels for fresh air remain for fresh air and the channels for exhaust air remain for exhaust air.
An enthalpic heat exchanger does not generate humidity – it maximizes the transfer of humidity from exhaust air into fresh supply air. If you previously used a standard exchanger, not only the air but also the building structure (walls, ceilings, floors) and porous materials became dry. This means it may take some time for humidity levels to recover, so patience is necessary.
Every enthalpic exchanger we supply is fully functional and improvement is guaranteed. We recommend keeping natural humidity sources (plants, cooking, drying clothes). If you use humidifiers, continue using them until the humidity rises to a comfortable level with the enthalpic exchanger, after which they can be reduced.
Yes. Unlike a standard exchanger, an enthalpic heat exchanger transfers part of the humidity back into the fresh air. This process is gradual, but you can speed it up by adding humidity – either naturally (plants, drying clothes, washing floors) or with humidifiers. Once the humidity has returned to a stable, optimal level, additional humidification can be reduced.
No, an enthalpic heat exchanger does not generate humidity by itself. It only transfers part of the moisture from the exhaust air back into the fresh supply air. If humidity in your home is too high, the cause lies elsewhere (e.g., insufficient ventilation, drying clothes indoors without venting, or residual construction moisture). The enthalpic exchanger helps balance humidity and prevents extreme fluctuations.
An enthalpic heat exchanger works on the principle of counterflow air streams. During ventilation, two separate airflows meet inside – the warm, humid exhaust air from indoors and the cold fresh air from outside. A special membrane transfers both heat and water vapor from the exhaust air to the incoming fresh air without mixing the two streams. This way, fresh air enters the home with a more comfortable temperature and humidity, improving comfort while saving energy.
The sealing tape must be applied around the perimeter of the exchanger, so that when inserted it presses firmly against the unit walls and prevents false air from being drawn in. The surface of the exchanger must be dry and clean before application. Always apply the tape straight, without gaps or folds, to ensure proper sealing.
