Enthalpic RECUBOX® 360 VENT-READY – ready for CONSTANT FLOW EC fans

Enthalpic RECUBOX® 360 VENT-READY – the basis for high-tech heat recovery

RECUBOXES® are manufactured entirely in the Czech Republic , as custom-made products based on precise specifications provided by our customers.
High quality is guaranteed by the use of the highest quality materials from the German manufacturer SIMONA AG in combination with processing on Swiss Leister AG equipment .

Technology and performance

RECUBOX® 360 VENT-READY is a completely unique, indestructible and hygienically clean base for the heat recovery unit , made of polypropylene with 100% smooth walls inside and out .
The cabinet is structurally prepared for the installation of AFL EC CONSTANT FLOW fans , which, thanks to intelligent regulation, maintain a constant flow rate and pressure balance of the entire system.

Thanks to their exceptional efficiency, the system can deliver up to 360 m³/h even at an external pressure of 400 Pa (after deducting exchanger and housing losses).

Inside the RECUBOX® there is an enthalpy exchanger that transfers not only heat but also moisture.
The exchanger is deliberately oversized to minimize pressure losses , which guarantees quiet and economical operation.

Choose from two types of exchangers:

• AXT-LB 366-196-366-H400-2.5 - enthalpy exchanger from the manufacturer AIRWOODS (excellent price / performance ratio)
  📄 Data sheet for download 📄 Manufacturer's catalog

• RECUTECH RFK+16-400-28 – the most modern enthalpy exchanger with revolutionary METALPIC material
  📄 Data sheet for download

Easy installation

The fans can be installed within 15 minutes – just by inserting them into the prepared hole and tightening four screws.
All outlets and condensate drains are designed in a mirrored manner , so you only choose the mounting direction during installation .

RECUBOX® can of course also be operated with external fans of your choice.

Regulation and management

Regulation, as with all EC fans, is quite simple – it is carried out using a DC 0–10 V signal.
This control method allows for convenient control of either:

• manual regulator ,

• with smart regulation RekupeX REX EC , or

• by direct connection to a smart home system (e.g. Loxone) - without the need for any intermediate link .

The enthalpic RECUBOX® 360 VENT-READY is supplied as a separate cabinet without fans and controls.
Photos may show illustrative set-up .

" frameborder="0">

Thanks to their robust construction, top quality and maximum hygienic safety, our RECUBOXES are part of a number of CTU projects, including the unique SAWER system, which UCEEB is developing for obtaining drinking water from the air.

RECUBOX can be ordered either without thermal INSULATION or with 30 and 50 mm insulation. It is essential that the insulation is hermetically sealed between two shells. So if you order an insulated RECUBOX, you will also receive an additional 5 mm thick PP shell in addition to the insulation.

EXAMPLE OF CONNECTING RECUBOX® VENT-READY WITH CONTROL USING THE REX-EC REGULATOR IN A FAMILY HOUSE:

VIDEO PRESENTATION OF RECUBOX REKUPEX:

error noopener">

OPTIONS FOR CONNECTION PORT LOCATION - SELECTION DURING THE ORDERING PROCESS FRONT VIEW OF RECUBOX WITH DOOR OPEN The dimensions are complete including 30 mm insulation and a second jacket - if the dimensions should change significantly due to larger connection sockets or other factors, we will inform you after ordering.

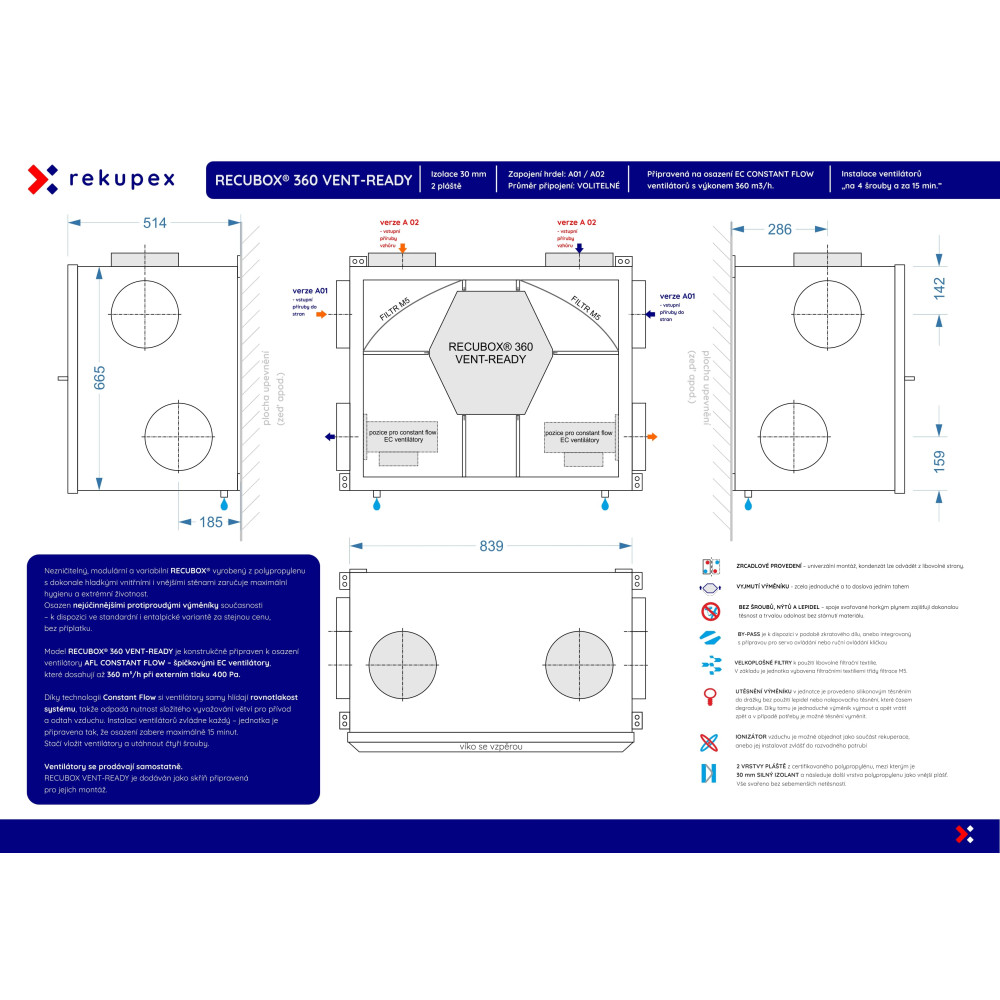

	A01 WIDE TRAY HEAT EXCHANGER, 4 PORTS ON THE SIDE Dimensions: 839 (A) x 665 (B) x 514 (C) mm - width x height x depth The drawing shows classic and mirrored connections (available on all RECUBOX® without any conversion)
	A02 WIDE TRAY HEAT EXCHANGER, 2 CONNECTIONS UP, 2 CONNECTIONS SIDE BY SIDE Dimensions: 839 (A) x 665 (B) x 514 (C) mm - width x height x depth The drawing shows classic and mirrored connections (available on all RECUBOX® without any conversion)
	B01L WIDE TRAY HEAT EXCHANGER, 4 PORTS ON THE SIDE Dimensions: 665 (A) x 839 (B) x 514 (C) mm - width x height x depth The drawing shows the left-hand version of the B01L - exhaust air inlet in the upper left part and fresh air inlet in the lower left part
	B01P WIDE TRAY HEAT EXCHANGER, 4 PORTS ON THE SIDE Dimensions: 665 (A) x 839 (B) x 514 (C) mm - width x height x depth The drawing shows the left-hand version of the B01P - exhaust air inlet in the upper right part and fresh air inlet in the lower right part

SERVICE ACCESS AND BY-PASS DIMENSIONS

SERVICE ACCESS - dimension E A minimum space corresponding to the size of the recubox door must be provided. the length of the exchanger so that it can be removed from the recubox without any problems. E = C - 60 [mm] INTEGRATED BY-PASS - dimension F The integrated by-pass is located “behind the exchanger” and increases the recubox by 1/3 of the depth. F = 1/3 x C [mm] BY-PASS opens the fresh air bypass around the exchanger with almost zero pressure loss. Opening the BY-PASS does not close the passage through the exchanger, but thanks to the open BY-PASS, the amount of fresh air passing through the exchanger is minimized.

PRICES ARE FINAL INCLUDING THE INTEGRATED EXCHANGER, ALL COSTS, TAXES AND FEES.
