We offer a wide range of enthalpy exchangers suitable for most heat recovery units. If you can't find the right model, don't hesitate to contact us – we will be happy to help!

Close

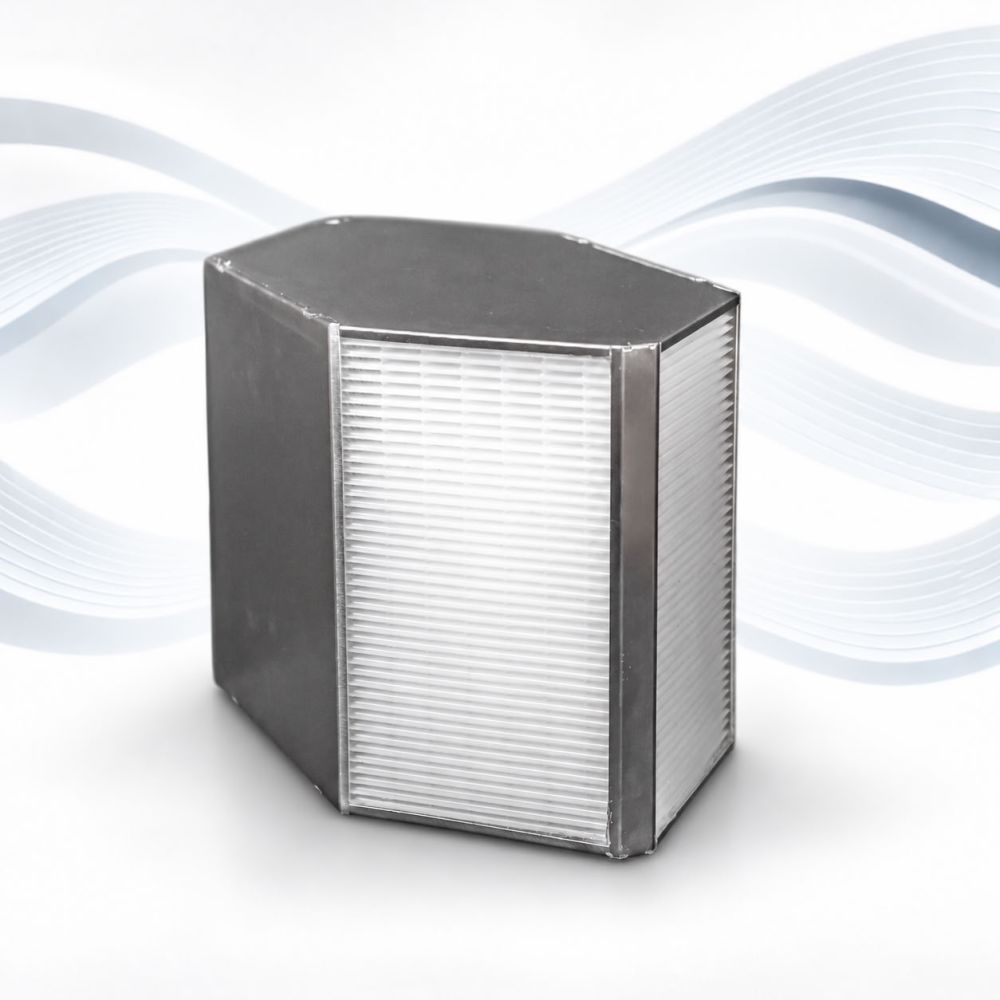

Recuperation heat exchanger RX-P 02/400 (counter-flow hot air recuperator for air recovery)

Flow rate 340m3/hour - Efficiency 93.9% ....
Flow rate 201m3/hour - Efficiency 94.3% ....
Flow rate 60m3/hour - Efficiency 95.2% ....
Dimensions: 397 x 172 x 400 mm ....
Weight: 3.44 kg ....
Material: plastic (HPS - high impact polystyrene)

Kč3,512
i
The amount of VAT applied is 0% for the country United States.
Quantity
Product available for orders

RX and RX-P are modern counter-flow exchangers with fins made of durable aluminum and plastic. The counter-flow exchanger is the successor to the less

efficient cross-flow exchanger. The counter-flow exchanger does not transmit moisture or odors. Its efficiency exceeds 92%.
It is thanks to these properties, together with the tested tightness of each manufactured piece, that it finds its use both in heat recovery units of passive houses and in industrial applications.

  • Efficiency up to over 92%
  • Excellent value for money
  • Each exchanger tested for 100% tightness
  • New slat geometry
  • Ideal for residential units
  • HPS ultrasonically welded slats
  • Easy handling, thanks to handling straps
  • Built-in BY-PASS option
  • Parameters ensuring a higher SEC calculation value
  • Eurovent, QMS, OHMS, EMS certification



EUROVENT

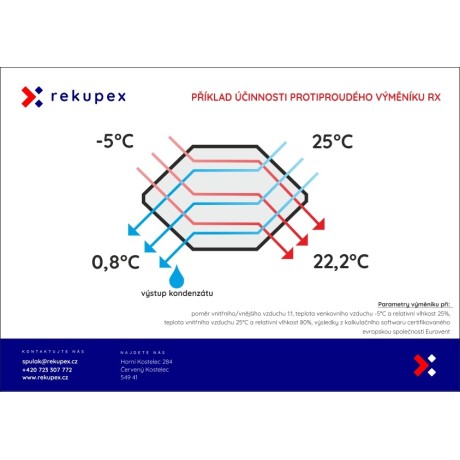

Exchanger parameters at: indoor/outdoor air ratio 1:1, outdoor air temperature -5°C and relative humidity 25%, indoor air temperature 25°C and relative humidity 80%, results from calculation software certified by the European company Eurovent

  • Flow rate 60m3/hour - Efficiency 95.2% - Frontal velocity 0.5 m/s - Pressure loss - inlet - 28.6 Pa, outlet - 36.2 Pa
  • Flow rate 201m3/hour - Efficiency 94.3% - Frontal velocity 1.5 m/s - Pressure loss - inlet - 112.2 Pa, outlet - 141.5 Pa
  • Flow rate 340m3/hour - Efficiency 93.9% - Frontal velocity 2.5 m/s - Pressure loss - inlet - 257.7 Pa, outlet - 324.8 Pa

Upon request, we will send you complete exchanger parameters and resulting values by e-mail in the form of parameter sheets in .pdf format, under your desired conditions (humidity, temperature, air volume flow).

Graph of pressure loss - PD [Pa] versus volume flow AV [m3/h] - RX-P 02/400 exchanger

Parameters for the average winter period in the Czech Republic

indoor/outdoor air ratio 1:1, outdoor air temperature 1°C and relative humidity 78%, indoor air temperature 25°C and relative humidity 28%, results from calculation software certified by the European company Eurovent

pressure losses of the counterflow exchanger

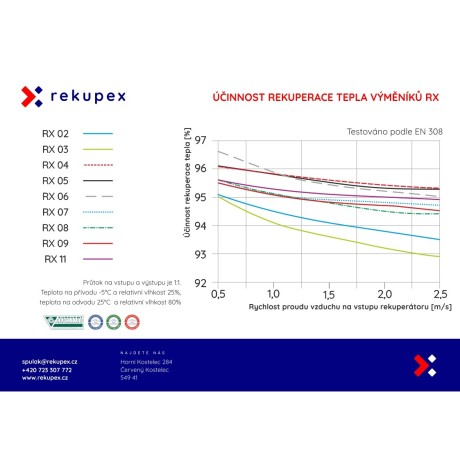

Graph of the dependence of efficiency EFF [%] on the volume flow AV [m3/h] - exchanger RX-P 02/400

Parameters for the average winter period in the Czech Republic

indoor/outdoor air ratio 1:1, outdoor air temperature 1°C and relative humidity 78%, indoor air temperature 25°C and relative humidity 28%, results from calculation software certified by the European company Eurovent

counterflow exchanger efficiency

Thanks to the precise processing of the dimensions of the exchangers, their mutual combination is possible to increase efficiency and maximum air flow.

.rekupex.cz/img/cms/RekupeX_combi_system.jpg" alt="combination" width="259" height="200" />

In order to respond to your orders as quickly as possible, we keep the most popular exchangers in stock in larger quantities.

If you do not choose from our offer in the e-shop, there is no problem for us to price you any exchanger according to the table below.

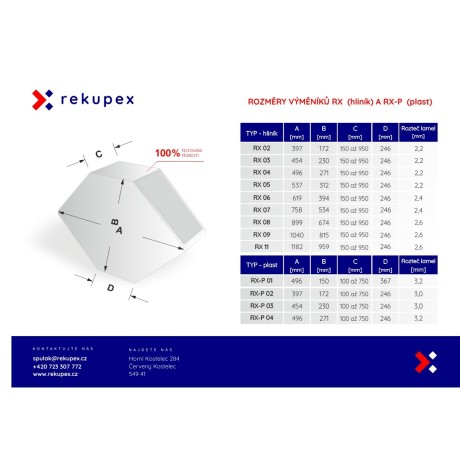

dimensions of the air-to-air exchanger

Data sheet

Warranty length
36 months
EUROVENT certification:
YES
Slat material:
Plastic (HPS - high impact polystyrene)
Sheathing material:
Aluminum
Highest efficiency at output [m3/hour]:
0 - 340
Dimensions lxwxh [mm]:
397 x 172 x 400
Weight [kg]:
3.0
Weight [kg]
3.44
Operating temperature [°C]
-20 to +60
