EC duct fan DOSPEL WK 315 BLDC N. Tesla - 2100 m3/h.

Verified compatibility with RECUBOX® units

We have thoroughly tested these fans in combination with RECUBOX® heat recovery units. They excel in high performance, ability to overcome pressure losses and low electricity consumption.

Regulation and integration

Like other EC fans, they are infinitely variable in the range of 0-100% using a 0-10 V signal (for example from a REX EC controller). They can be integrated into a smart home using a suitable control module.

Sound properties - comparison with VENTS VK EC

DOSPEL BLDC fans are slightly noisier than VENTS VK EC and their impellers are not as precisely balanced.

Recommendation: For bedrooms, children's rooms or wherever quiet operation is important, we recommend VENTS VK EC fans.

Duct radial fan Dospel WK 315 GOLD BLDC N.Tesla

Suitable for installation in circular ducts - for apartments, offices, garages, restaurants and halls. Effective air transfer in smaller and larger spaces.

Performance and savings

The new GOLD generation achieves a flow rate of up to 2100 m³/h while consuming only 140 W. Savings of up to 70% compared to older models and competitive solutions.

Components and lifespan

• N. TESLA BLDC motor – lifespan up to 120,000 hours
• SKF double row bearings – quiet and smooth operation

Installation and execution

• Wall and ceiling mounting, in rigid and flexible ducts
• Galvanized steel body with black powder coating
• Protection IP X4, insulation class I

Control and safety

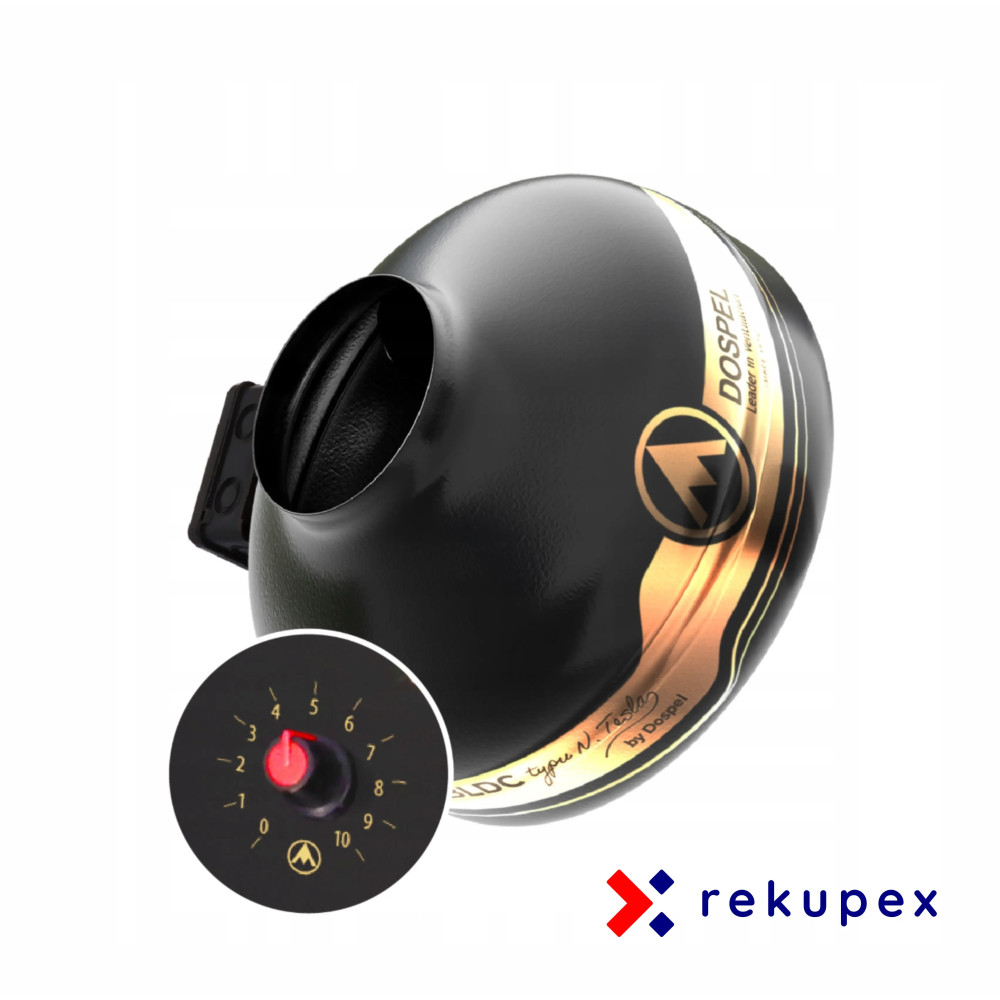

Integrated potentiometer for power regulation (0–100%).

Triple thermal protection:

• shutdown at 40 °C
• disconnection at 60 °C
• emergency stop at 90 °C
