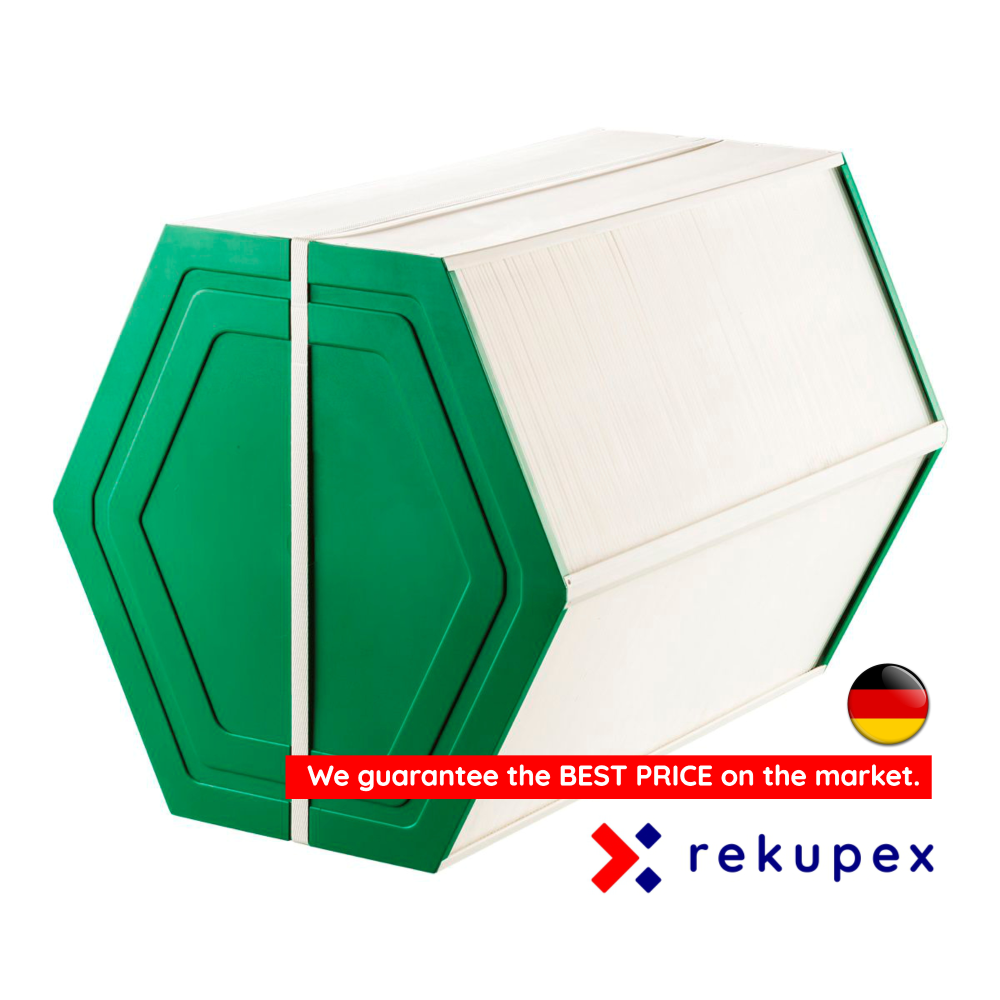

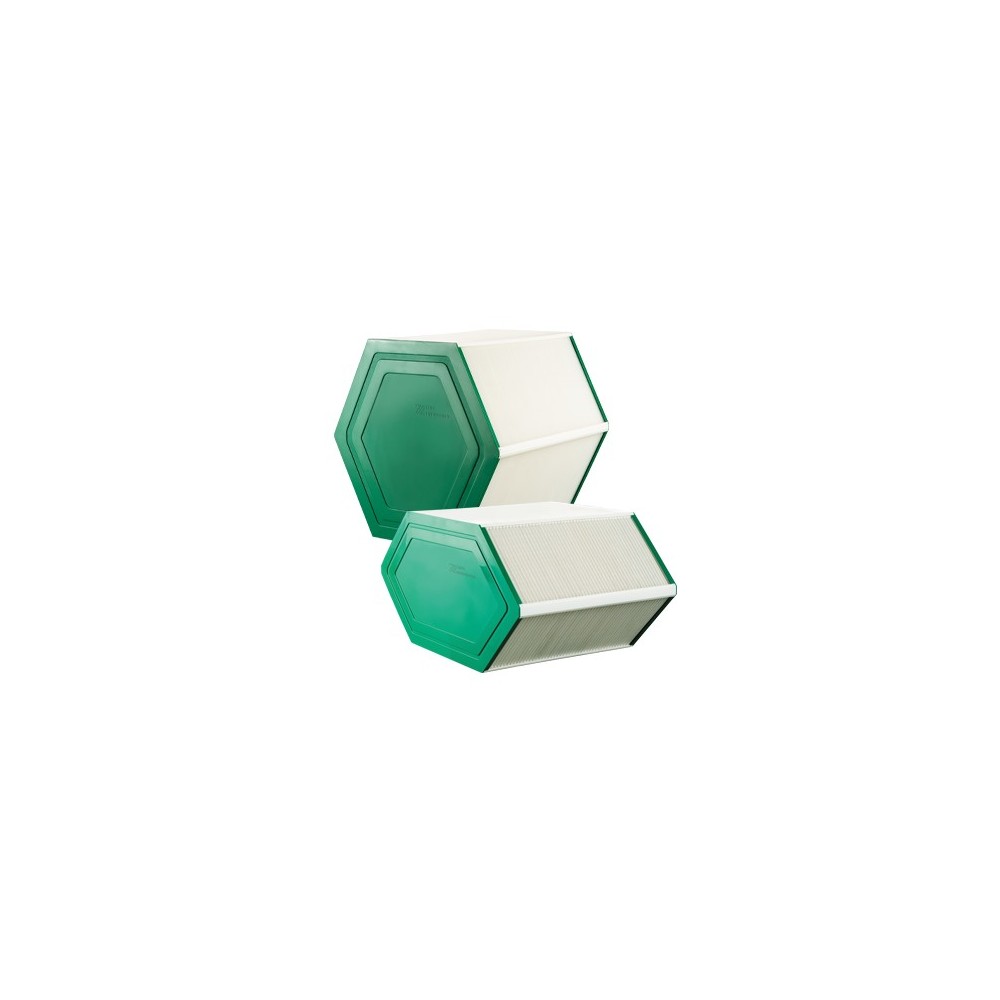

ZERN EC-EX6 366/400 - 2- enthalpy exchanger (compatible)
Top-of-the-line replacement enthalpy exchanger from the ZERN EC-EX series. It ensures highly efficient heat and moisture recovery thanks to a unique polymer membrane.
ZERN EC-EX06 366/400-2 Enthalpy Exchanger
This high-performance enthalpy exchanger ZERN EC-EX06 366/400-2 is designed as a premium standalone core for ventilation and heat recovery units. Thanks to its innovative design, it ensures highly efficient recovery of both heat and moisture, representing a fully-fledged and technologically advanced alternative for modernizing your ventilation system.
Notice: Please carefully verify compatibility (especially dimensions and shape) with your existing heat recovery unit before purchasing. We pride ourselves on precision – if you have any doubts about your choice, please do not hesitate to contact us so we can verify suitability for your unit together.
COMFORTABLE CLIMATE: The ZERN EC-EX06 366/400-2 exchanger maintains a pleasant indoor environment even during dry winter months. By recovering latent heat from water vapor, it effectively prevents mucous membranes from drying out, reduces static electricity, and protects wooden interior furnishings.
Key Features and Benefits of the ZERN EC-EX06 366/400-2

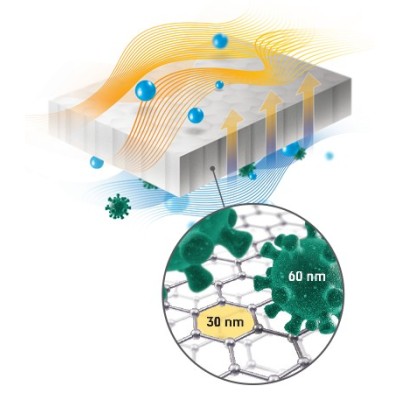

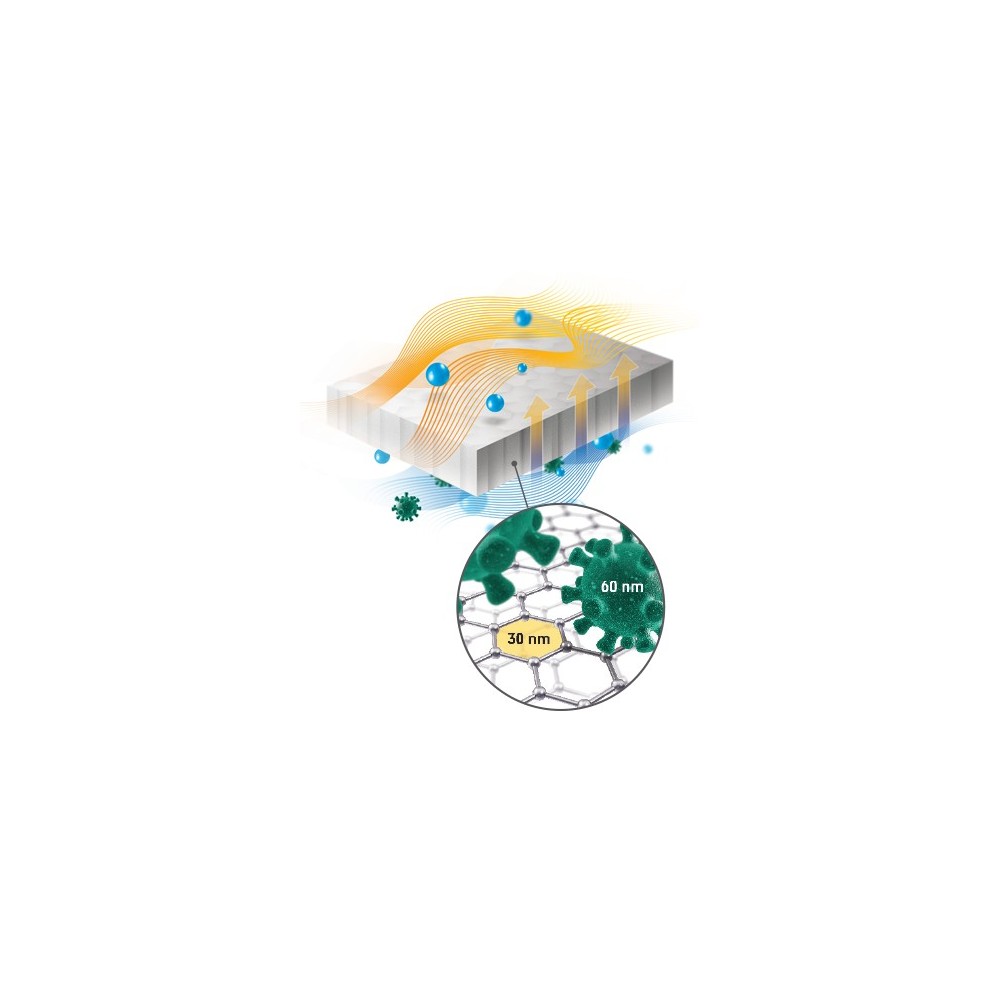

- Unique polymer membrane: The microporous structure allows water vapor to pass through smoothly but reliably blocks bacteria, viruses, molds, and odors.
- High overall efficiency: Maximum energy efficiency thanks to the recovery of both sensible and latent heat while maintaining a healthy humidity level.
- Hygiene standard: Special antibacterial coating of the membrane meets the strictest hygienic requirements for residential and commercial spaces.
- Extra rigid casing: Made of high-strength HPS (high-impact polystyrene) for maximum structural stability and resistance to deformation from air pressure.
- Material safety: Top-quality hot-melt polymer adhesives certified for demanding industrial and medical applications are used in production.
- Frost resistance: The advanced design naturally reduces the risk of condensate freezing, allowing stable and safe operation across a wide range of outdoor temperatures.
Technology and Design by ZERN
The ZERN EC-EX series exchangers utilize an optimized fin geometry to maximize the heat and moisture transfer area while maintaining a minimal pressure drop in the ventilation system:
| Component | Technical Benefit |
|---|---|
| Polymer membrane | Selective permeability only for water molecules; uncompromising impermeability to dirt, gases, and odors. |
| HPS casing | High mechanical strength, precise dimensions of the exchanger body, and a tight fit in the unit slot. |
Interested in comparing technologies? See a detailed comparison of enthalpy exchangers from different manufacturers.
Have more questions? Find answers in our Frequently Asked Questions (FAQ) section.
"The ZERN EC-EX series exchangers represent a modern generation of enthalpy cores that perfectly combine strict hygiene standards with maximum energy yield."
Installation and Maintenance
This exchanger features precise dimensional parameters of the 366/400-2 specification. Before installation, make sure the dimensions match the internal mounting slot of your ventilation unit. Installation is done by simply sliding it into the device's guide rails.
ZERN EC-EX series enthalpy exchangers
Frequently Asked Questions
Can the ZERN EC-EX06 366/400-2 exchanger be cleaned?
Yes, the exchanger is fully washable. Perform regular maintenance by gently rinsing it with lukewarm water (up to 30 °C). Never use high-pressure cleaners (pressure washers) or aggressive chemical solvents, as this could cause irreversible damage to the polymer membrane.
Does the exchanger transfer odors between exhaust and supply air?
No. The innovative ZERN polymer membrane operates on the principle of selective filtration, which allows only the water vapor molecules themselves to pass through. Odors, smoke, kitchen or toilet smells, and microorganisms are hermetically blocked by the membrane walls.
Data sheet
- EUROVENT certification:
- ISO 9001, REACH
- Slat material:
- HPS (hygienic plastic) + membrane polymer
- Sheathing material:
- HPS (hygienic plastic)
- Operating temperature [°C]
- From -25 to +50
- Country of origin
- GERMANY
Specific References
- EAN13
- 8592919621411
