The sensor is not for sale separately. Sale is conditional on purchase together with the REX EC controller.

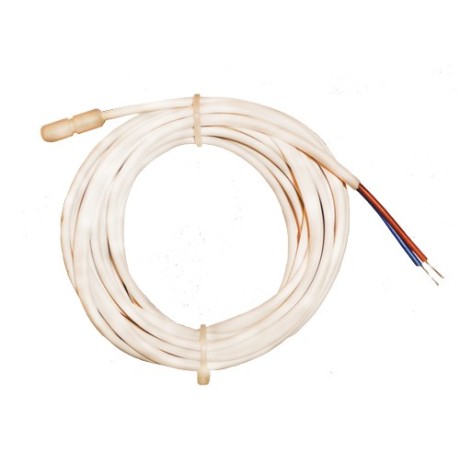

Temperature sensor characterized by high sensitivity, high stability, corrosion resistance and long service life.
The sensor can be extended to any length, but if the extension exceeds 10 m, the temperature sensor must be calibrated in the controller settings.
The basic cable length is 3m.
Temperature sensor characteristics:
| Temperature [ºC] | Value [Ώ] |
| -50 | 687,803 |
| -40 | 346,405 |
| -30 | 181,628 |
| -20 | 99,084 |
| -10 | 56,140 |
| 0 | 32,960 |
| 10 | 20,000 |
| 20 | 12,510 |
| 25 | 10,000 |
| 30 | 8,047 |
| 40 | 5,310 |
| 50 | 3,588 |
| 60 | 2,476 |
| 70 | 1,743 |
| 80 | 1,249 |
| 90 | 911 |
| 100 | 647 |
| 110 | 506 |
| 120 | 385 |
| 130 | 297 |
| 140 | 231 |
| 150 | 182 |
| 160 | 144 |
| 170 | 116 |
| 180 | 94 |
| 190 | 76 |
| 200 | 63 |
Data sheet
