We offer a wide range of enthalpy exchangers suitable for most heat recovery units. If you can't find the right model, don't hesitate to contact us – we will be happy to help!
The sensor is not for sale separately. Sale is conditional on purchase together with the REX EC controller.

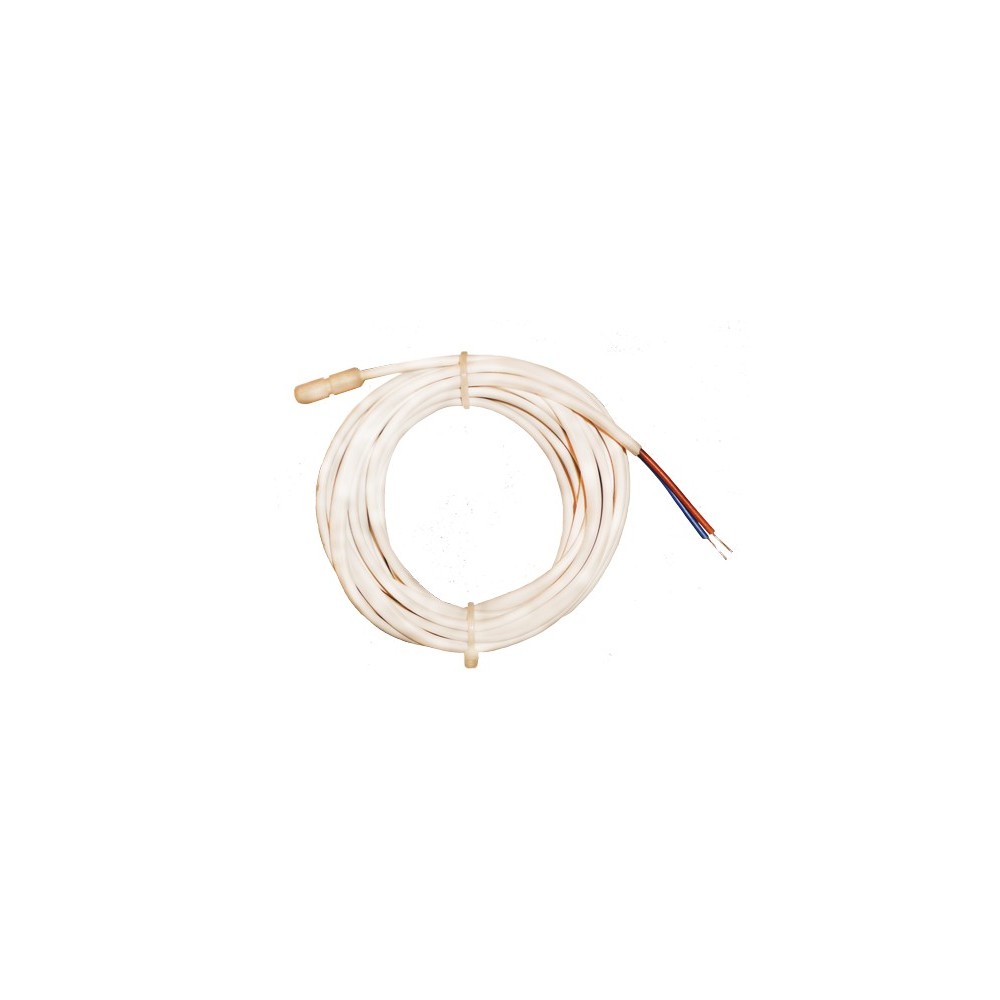

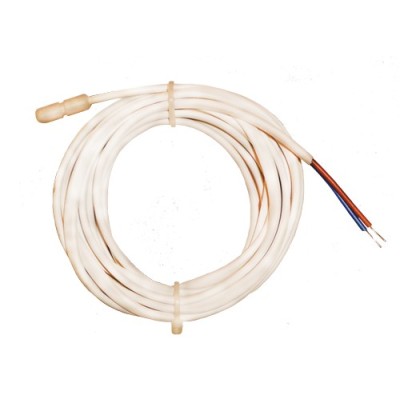

Temperature sensor characterized by high sensitivity, high stability, corrosion resistance and long service life.
The sensor can be extended to any length, but if the extension exceeds 10 m, the temperature sensor must be calibrated in the controller settings.
The basic cable length is 3m.
Temperature sensor characteristics:
| Temperature [ºC] | Value [Ώ] |
| -50 | 687,803 |
| -40 | 346,405 |
| -30 | 181,628 |
| -20 | 99,084 |
| -10 | 56,140 |
| 0 | 32,960 |
| 10 | 20,000 |
| 20 | 12,510 |
| 25 | 10,000 |
| 30 | 8,047 |
| 40 | 5,310 |
| 50 | 3,588 |
| 60 | 2,476 |
| 70 | 1,743 |
| 80 | 1,249 |
| 90 | 911 |
| 100 | 647 |
| 110 | 506 |
| 120 | 385 |
| 130 | 297 |
| 140 | 231 |
| 150 | 182 |
| 160 | 144 |
| 170 | 116 |
| 180 | 94 |
| 190 | 76 |
| 200 | 63 |
Data sheet
