RECUBOX® OPEN RX 11/1200 - 7500 m3/h (removable heat exchanger in the casing, heat recovery box, air recovery, heat recovery uni
Made in the Czech Republic ....
Equipped with a premium exchanger RECUTECH REK+95-1200-24 - RekupeX RX 11/1200 ....
Removable exchanger ....
Output up to 7500 m3/hour ....
Certified efficiency up to 96% ....
Removable exchanger ....
M5 filters....
RECUBOXES® are manufactured entirely in the Czech Republic. as custom production based on the exact specifications provided by our customers.
High quality is guaranteed by the use of the highest quality materials from the German manufacturer SIMONA AG in combination with processing using Swiss Leister AG equipment.
We present you a smart solution for a heat recovery system with easy removal of the EUROVENT certified heat recovery exchanger and endless variability of the resulting ventilation system (unlike heat recovery units, the fans are placed
separately into the pipeline, as well as other additional accessories. Thanks to this, the system guarantees a long service life with easy replacement of individual components, unlimited expandability and system upgrades at a minimum price)
- available with a fitted premium exchanger (the fins are made of aluminium and the exchanger casing is also aluminium)
This RECUBOX®, with its dimensions and performance, is suitable for the recovery of large spaces - workshops, warehouses, fitness centers, gyms, changing rooms, etc.
100% welded joint technology – no glued seals, no leaks. All sealing elements are mechanical only and replaceable .
Smooth hygienic walls allow for easy cleaning – very low maintenance, high level of hygiene.
Thanks to their robust construction, top quality and maximum hygienic safety, our RECUBOXES are part of a number of CTU projects, including the unique SAWER system, which UCEEB is developing for obtaining drinking water from the air.
MAIN ADVANTAGES OF RECUBOXES®: |
|
|
REMOVING THE HEAT EXCHANGER FROM THE RECUBOX is very simple, literally in one go. |
|
|
MAXIMUM HYGIENE is guaranteed thanks to the possibility of removing the exchanger and washing both the exchanger itself and the entire unit. The exchanger is certified by ILH Berlin with a hygiene certificate and the RECUBOX material is certified for food storage and use in the healthcare sector |
|
|

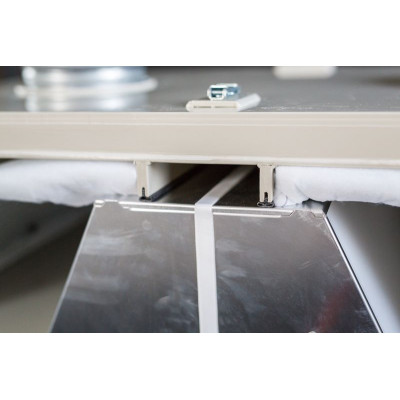

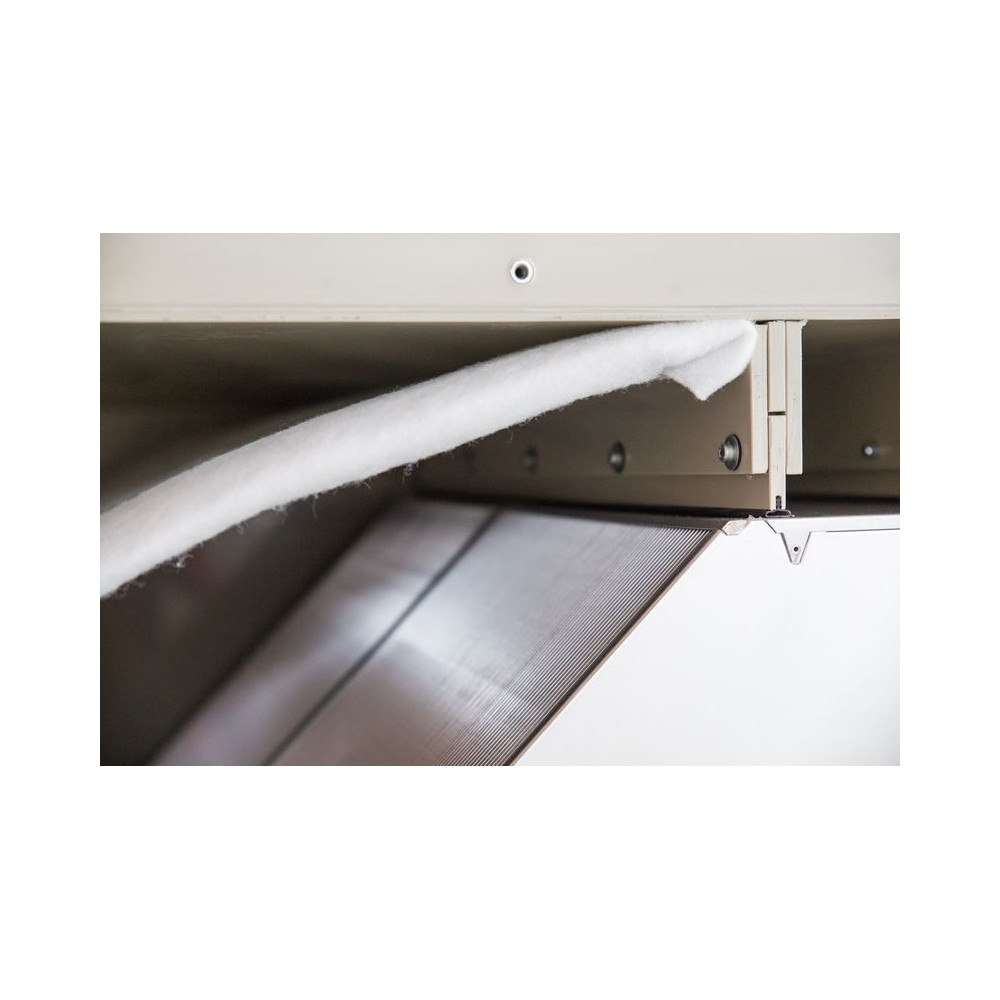

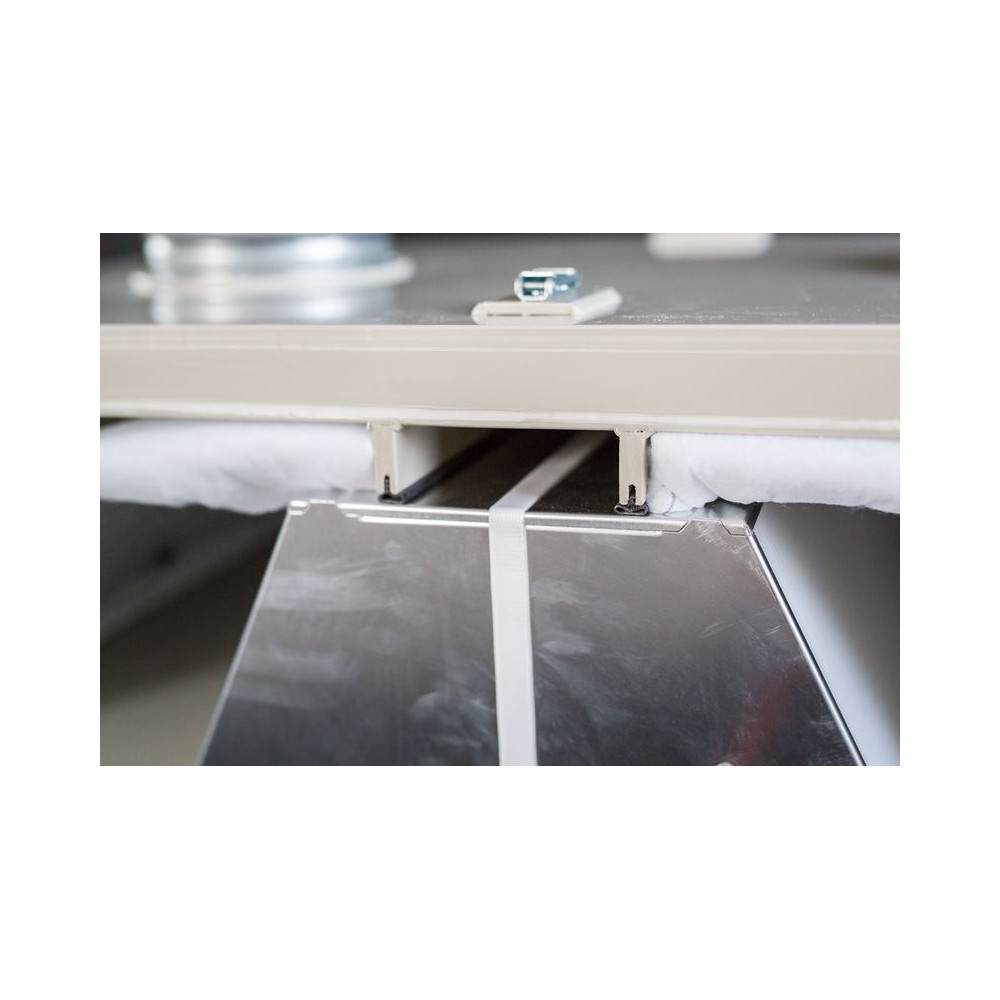

THE EXCHANGER SEALING in the RECUBOX is done by sealing into the groove without the use of adhesives or adhesive sealing, which degrades over time. This makes removing the exchanger and reinserting it completely simple. The seal can be easily replaced if necessary. |
|
|
NONE NO SCREWS, RIVETS OR GLUE - RECUBOX is made from one type of material using hot gas welding technology . This ensures absolutely tight joints without degradation due to aging , unlike other joints made of different types of materials. |
|
|
THE SIZE RANGE is so wide that we are able to find a suitable RECUBOX with the necessary air flow volume even for the most shaded spaces. |
|
|
RECUBOXY OPEN are designed for the complete production line of EUROVENT certified RX, RX-P and RSX-P exchangers |
|
|
THE OUTPUT RANGE is from 50 to X,000 m3/hour. |
|
|
POSSIBILITY OF SIMPLE CONNECTION OF THE MALAPA IN03 IONIZER |
|
|

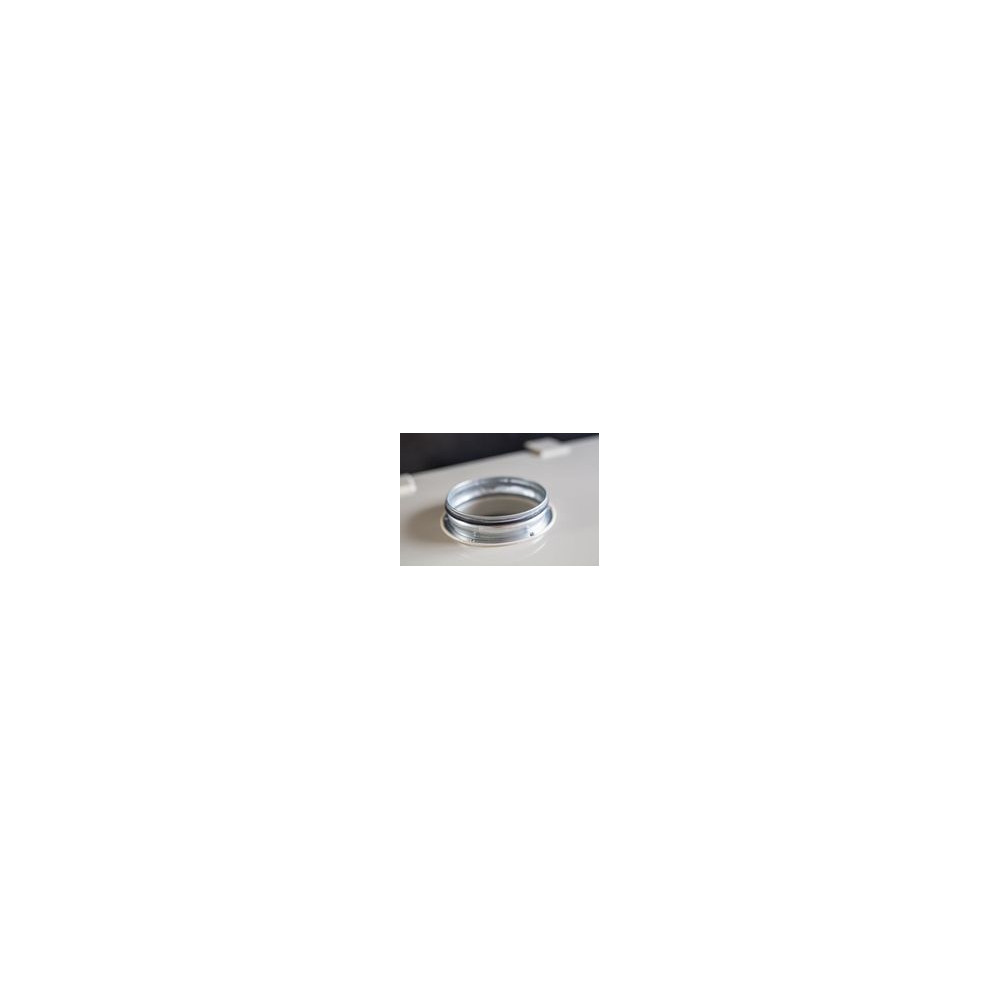

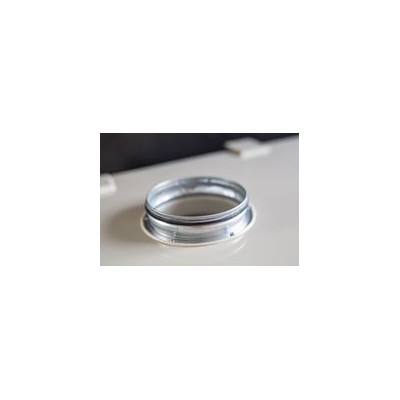

ENDLESS VARIABILITY of placement of inlet and outlet nozzles in any dimensions |
|
|
MIRROR USE is possible for all variants. The condensate drain is secured with a 1/2" diameter screw connection and is fitted in 2 places |
|
|
INSTALLATION is easy thanks to mounting holes for threaded rods |
|
|

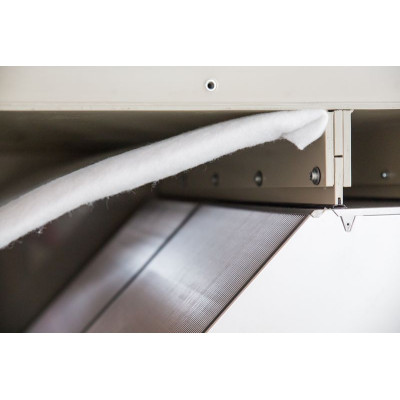

LARGE AREA FILTERS for the use of any filter fabric, which is easily replaceable. The unit is basically equipped with filter fabrics of filtration class M5. |
|
|
BY-PASS is available as a short-circuit part or integrated with preparation for manual or servo control. The diameter of the by-pass shaft is 14 mm |
Pressure loss graph - PD [Pa] on volume flow rate AV [m3/h] - exchanger REK+95-1200-26
indoor/outdoor air ratio 1:1, outdoor air temperature 1°C and relative humidity 78%, indoor air temperature 25°C and relative humidity 28%, results from calculation software certified by the European company Eurovent
Graph of the dependence of efficiency EFF [%] on the volume flow AV [m3/h] - exchanger REK+95-1200-26
indoor/outdoor air ratio 1:1, outdoor air temperature 1°C and relative humidity 78%, indoor air temperature 25°C and relative humidity 28%, results from calculation software certified by the European company Eurovent
 |
RECUBOX can be ordered either without thermal INSULATION or with 30 and 50 mm insulation. It is essential that the insulation is hermetically sealed between two shells. So if you order an insulated RECUBOX, you will also receive an additional 5 mm thick PP shell in addition to the insulation. |

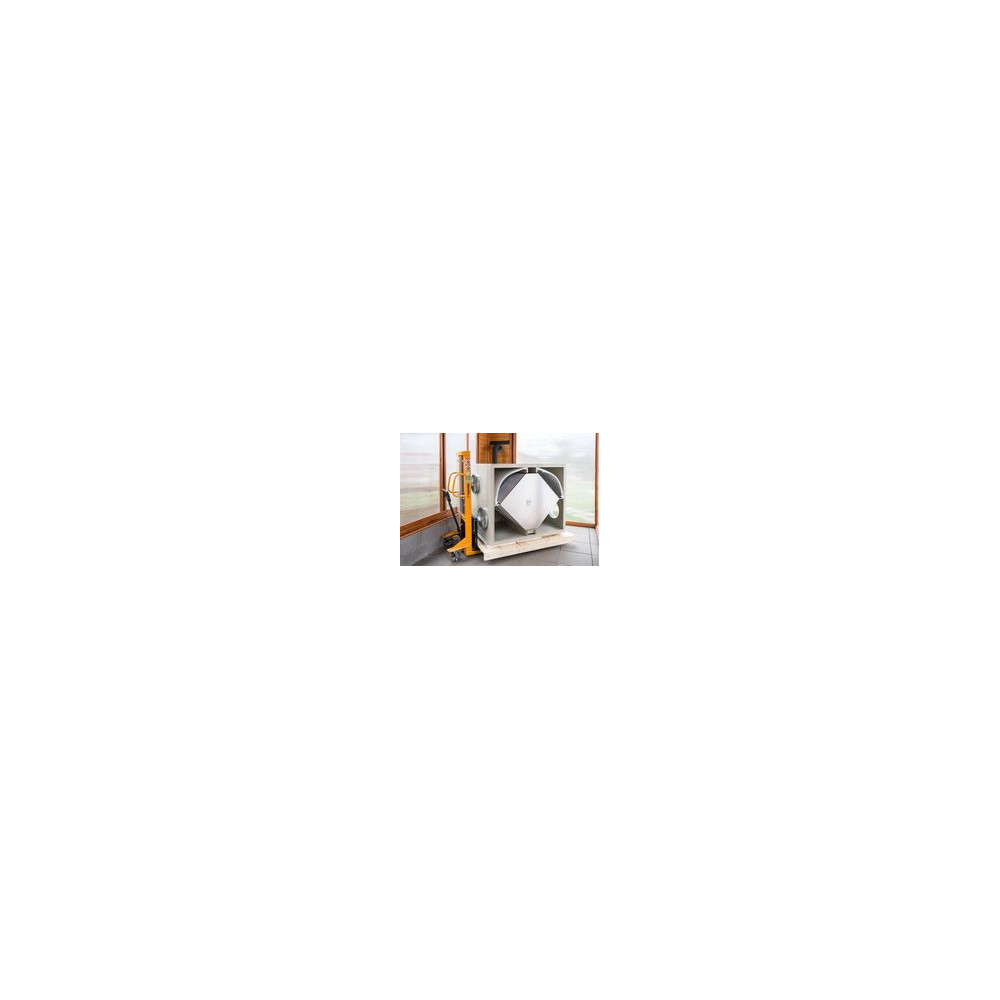

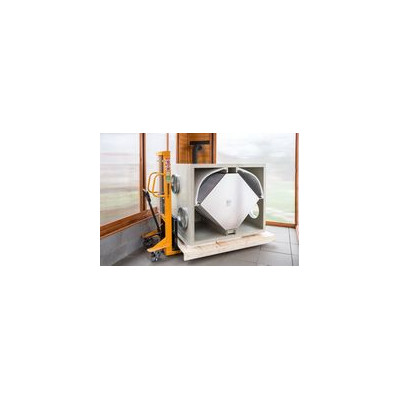

An exchanger of these dimensions can be removed from the RECUBOX® quite easily, thanks to the sophisticated method of sealing with spacer profiles.
RECUBOX OPEN CONNECTION DIAGRAM IN A FAMILY HOUSE
WIRING DIAGRAM WITH REX EC CONTROL AND EC FANS
VIDEO PRESENTATION OF RECUBOX - WITHOUT ACCESS DOOR:
|
|||
 |

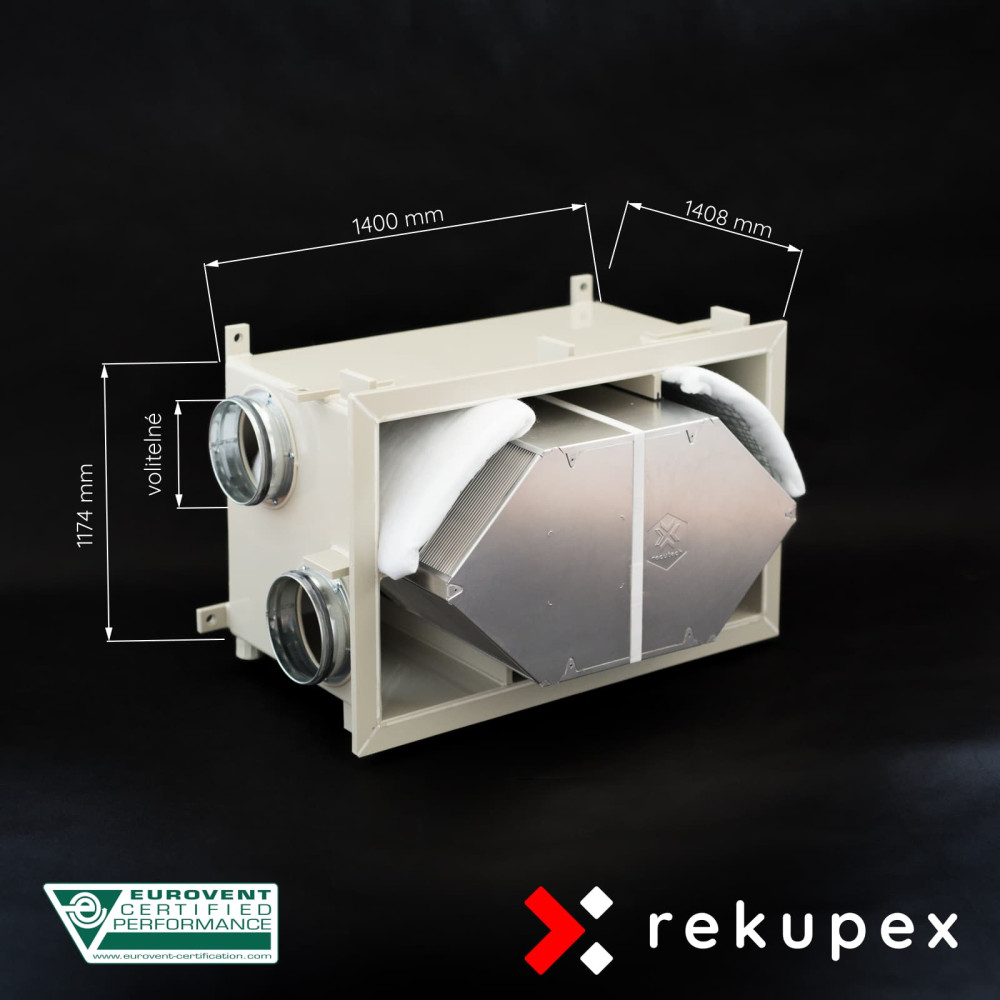

A01 WIDE TRAY HEAT EXCHANGER, 4 PORTS ON THE SIDE Dimensions: 1400 (A) x 1174 (B) x 1408 (C) mm - width x height x depth The drawing shows classic and mirrored connections (available for all RECUBOX® without any conversion) |
||
|
|
A02 WIDE TRAY HEAT EXCHANGER, 2 CONNECTIONS UP, 2 CONNECTIONS SIDEWAYS Dimensions: 1400 (A) x 1174 (B) x 1408 (C) mm - width x height x depth The drawing shows classic and mirrored connections (available for all RECUBOX® without any conversion) |
||
| SERVICE ACCESS AND BY-PASS DIMENSIONS | |
 |
SERVICE ACCESS - dimension E A minimum space corresponding to the length of the exchanger must be provided in front of the recubox door so that the exchanger can be removed from the recubox without any problems. E = C - 60 [mm] INTEGRATED BY-PASS - dimension F The integrated by-pass is located “behind the exchanger” and increases the recubox by 1/3 of the depth.
The BY-PASS damper is controlled by a ⌀ 14 mm shaft for connecting a servo drive (min. 2 Nm). The BY-PASS is open on the right. A lever for manual operation is installed on the shaft. |
PRICES ARE FINAL INCLUDING THE INTEGRATED EXCHANGER, ALL COSTS, TAXES AND FEES.
