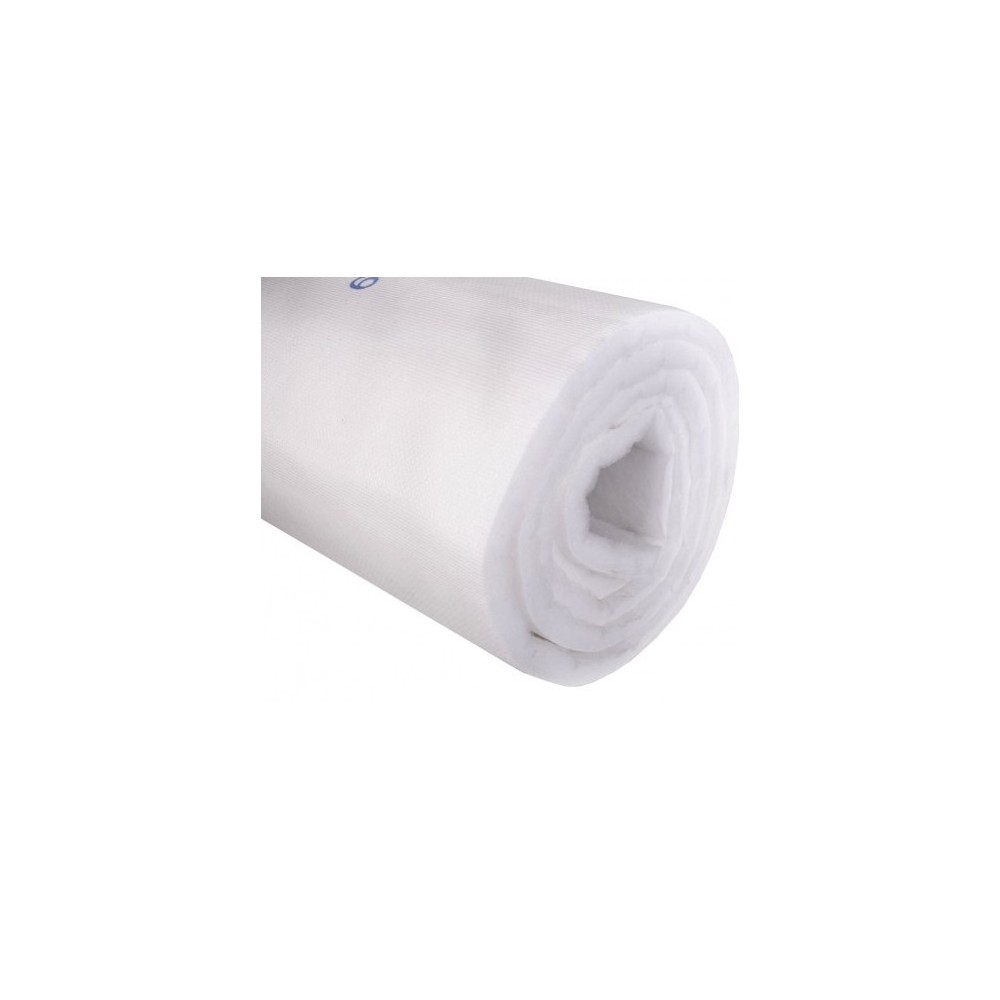

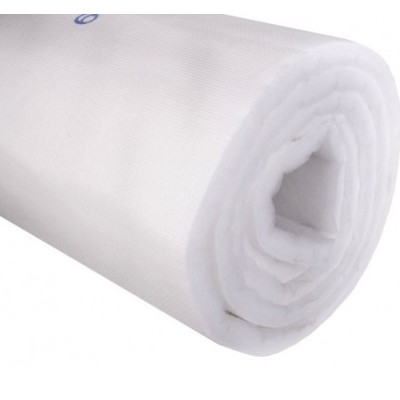

Filter fabric G4, 19 mm, 200 g/m2

Filter medium Polymat S01416 ISO Coarse 60% (G4) is suitable for filter boxes and filter frames of recuperation units. It is used for basic filtration of dust particles

• Fabric thickness 19 mm
• Density 200 g/m2
• Nominal air flow rate 1.5 m/s
• Initial pressure loss 45 Pa
• Nominal filtration rate 5400 m3/h m2
• Average resolution Am = 91%
• Maximum pressure loss 250 Pa
• Dust absorption capacity 550 g/m2
