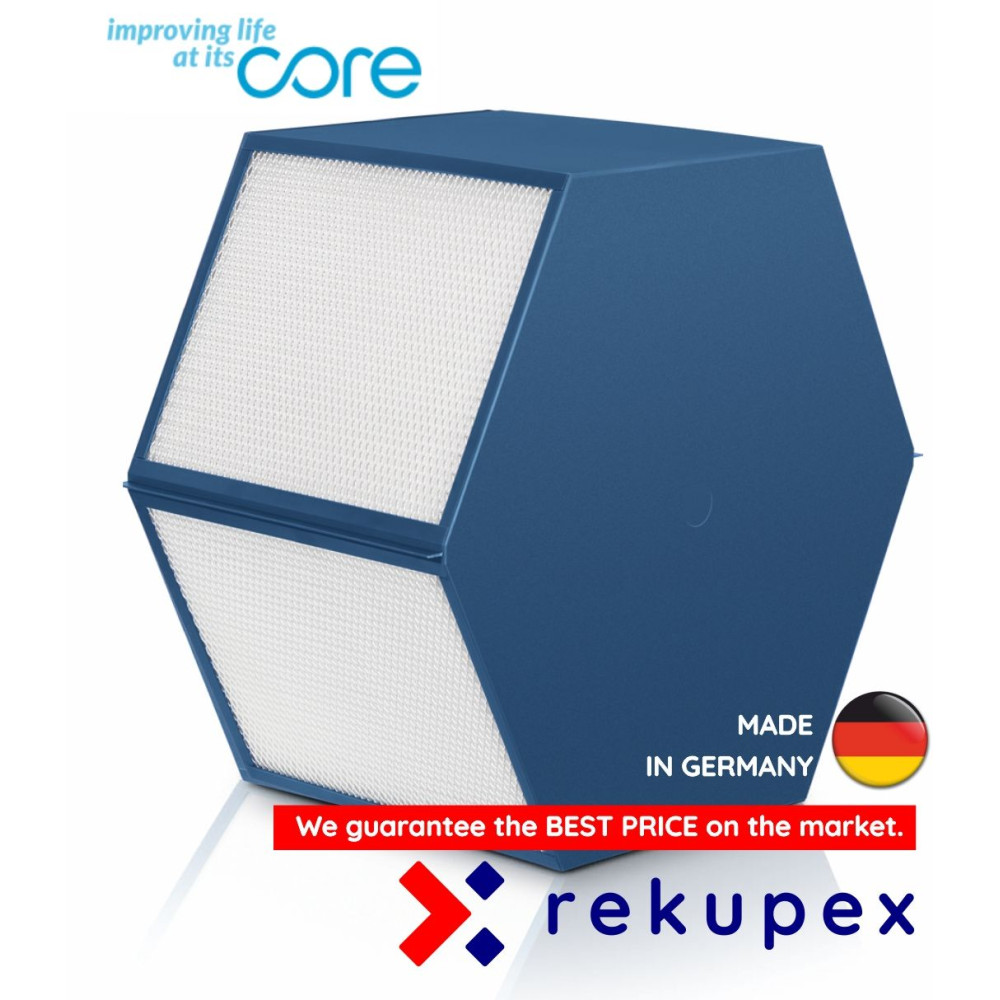

Vaillant recoVAIR VAR 260/4, 360/4 – CORE entalpialämmönvaihdin
Premium entalpialämmönvaihdin saksalaiselta merkiltä CORE.
Kuvat voivat poiketa todellisesta tuotteesta. Tämä entalpialämmönvaihdin on 100% yhteensopiva Vaillant recoVAIR VAR 260/4 ja VAR 360/4 -ilmanvaihtolaitteiden kanssa ja rakenteensa ansiosta se voi tarjota paremmat käyttöominaisuudet kuin alkuperäinen entalpiavaihdin. Kyseessä ei ole laitteen valmistajan alkuperäinen (OEM) varaosa.
Jos olet epävarma oikeasta mallista, otamme sinuun yhteyttä ennen toimitusta ja varmistamme valinnan yhdessä.
Tuotteen tekniset tietolehtiset löytyvät tuotesivulta.
Yhteensopivat Vaillant-yksiköt
Vaillant recoVAIR VAR 260/4 ✔ Vaillant recoVAIR VAR 360/4 ✔
CORE F-ERV — entalpialämmönvaihtimien uusin sukupolvi

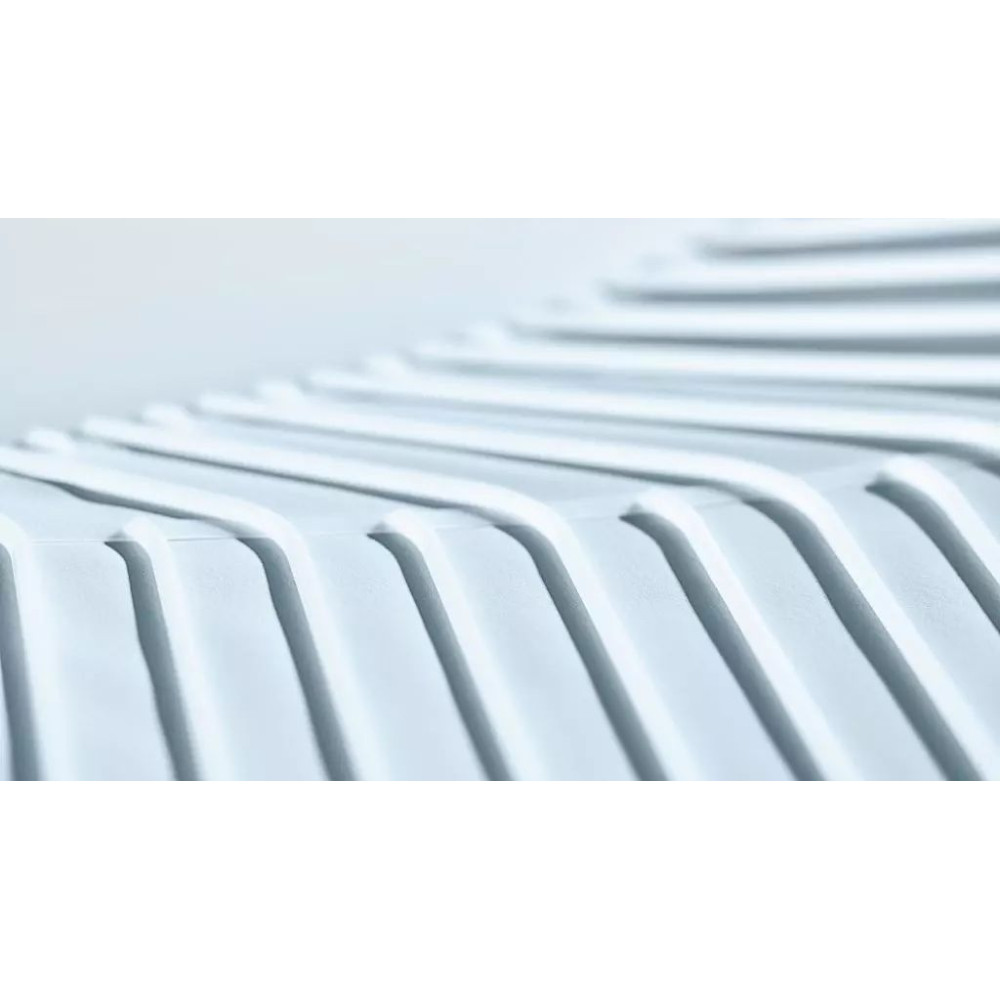

CORE F-ERV -entalpialämmönvaihtimet edustavat ERV-teknologian edistyneintä tasoa. Ne käyttävät vallankumouksellista muotoutuvaa polymeerikalvoa, joka siirtää tehokkaasti sekä lämpöä että kosteutta tuloilmaan ja estää virusten, bakteerien, hajujen ja homeitiöiden palaamisen sisäilmaan — ne poistuvat poistoilman mukana ulos.
Pienemmän painon, korkeamman hyötysuhteen ja optimoidun sisäisen rakenteen ansiosta F-ERV-lämmönvaihtimet sopivat sekä kotitalouksien ilmanvaihtoon että suurempiin keskitettyihin ja kaupallisiin Vaillant-järjestelmiin.
F-ERV:n edut verrattuna C-ERV:iin
- Selvästi korkeampi hyötysuhde lämmön ja kosteuden talteenotossa
- Uuden sukupolven muotoutuva kalvo = pienempi painehäviö
- Keveämpi rakenne → helpompi käsitellä ja asentaa
- Ihanteellinen keskitettyihin järjestelmiin, joissa on suuret ilmavirrat
- Pienempi sulatusenergian tarve → vähemmän kondenssia
- Ympäristöystävällinen rakenne, parempi materiaalien kierrätettävyys
- PLUS X AWARD -palkinto innovatiivisuudesta, laadusta, käytön mukavuudesta, toiminnallisuudesta ja ekologiasta
Miksi CORE-teknologia on ainutlaatuinen
- Siirtää sekä lämpöä että kosteutta ja tasapainottaa sisäilman olosuhteita
- Korkea hyötysuhde myös alhaisissa ulkolämpötiloissa
- Kalvo estä virusten, bakteerien, hajujen ja homeitiöiden kulkeutumisen poistoilmasta takaisin sisälle
- Rakenne estää kondenssiveden kertymisen lämmönvaihtimen sisälle
- Pitkä käyttöikä, pestävät pinnat ja helppo huolto

Tietoja CORE-yrityksestä
CORE on yksi johtavista toimijoista ilma–ilma-lämmönvaihtimien ja entalpialämmönvaihtimien alalla. Vuodesta 1994 lähtien yritys on kehittänyt korkealaatuisia lämmönvaihtimia asuin-, liike- ja teollisuuskohteisiin.
Valmistuksessa hyödynnetään laser- ja ultraääniliitoksia, robottiautomaatiota ja omia kalvoteknologioita.
COREn ajatus on yksinkertainen: parempi ilma = parempi elämä.

RECUTECH are equipped with the latest enthalpic membrane METALPIC. They excel in top-class heat and humidity recovery, high resistance to pressure differences, and long service life. They are among the most advanced enthalpic heat exchangers currently available on the market.
ZERN are fully plastic enthalpic heat exchangers, very efficient, with slightly better moisture transfer, but with higher pressure loss.
No, never block the condensate drain.
Even though enthalpic heat exchangers produce only a minimal amount of condensate due to moisture transfer, in severe frost and specific humidity conditions, condensate can still occur. Blocking the drain could cause irreversible damage to your unit.
Since an enthalpic heat exchanger also transfers humidity, it might seem that the risk of mold is higher. In reality, however, all moisture is carried away with the fresh air, so there is no risk of mold growth.
Our recommendation is to never switch off the unit during the winter months, so that moisture is continuously removed. If you still need to shut down the unit, remove the exchanger, rinse it with clean water, dry it thoroughly, and only then reinstall it
Yes, installation is simple. Just follow the instructions provided with your unit. As with a standard exchanger, it needs to be removed occasionally for cleaning – the process is the same, except that you put the enthalpic exchanger back in instead.
Feel free to contact us with any unit model. We will do our utmost to provide you with a 100% compatible exchanger, regardless of the type of ventilation unit you have.
In any case, the exchangers we supply are identical to the original parts used by the unit manufacturers, and in many cases, our exchangers are even of higher quality. However, we must clearly state that we are not official distributors of spare parts from the unit manufacturers. Transparency is very important to us.
An enthalpic heat exchanger should be used all year round. In winter, it prevents excessive drying of the indoor air, and in summer, it helps maintain comfortable humidity and temperature by reducing heat transfer and returning part of the moisture to the fresh supply air. This increases comfort and saves energy in every season.
No, caring for an enthalpic heat exchanger is no more demanding than for a standard one. Maintenance is described in the user manual and in our video guide. In short: first vacuum the exchanger with a soft brush attachment, then rinse it with clean water (max. 50 °C). Never use compressed air or a pressure washer.
After rinsing, allow all water to drain completely. Remaining moisture can be carefully blown out with a regular hairdryer, but always use cold air only. Once the exchanger is completely dry, place it back into the unit in the same orientation as before removal.
We do not recommend using chemicals for cleaning. Only if disinfection is absolutely necessary may a weak solution of peracetic acid be used, followed by very thorough rinsing with clean water.
Yes, the use of an enthalpic heat exchanger is completely safe. The membrane is designed to allow only water vapor molecules to pass through, while blocking bacteria, odors, and harmful substances. All enthalpic heat exchangers we offer are hygienically tested and certified.
An enthalpic heat exchanger will always help improve indoor humidity, as it transfers part of the moisture from exhaust air back into the fresh supply air. It cannot be guaranteed that ideal levels (typically 40–60%) will be achieved, since the final humidity also depends on other factors – such as household habits, number of occupants, natural moisture sources, and outdoor climate conditions.
However, we can guarantee that humidity will improve, because it is physically impossible for the return of moisture not to contribute to higher values.
The enthalpic plate works the same from both sides, so the orientation of the plate itself does not matter. However, it is essential that after cleaning the exchanger is always reinstalled in the same orientation, ensuring that the channels for fresh air remain for fresh air and the channels for exhaust air remain for exhaust air.
An enthalpic heat exchanger does not generate humidity – it maximizes the transfer of humidity from exhaust air into fresh supply air. If you previously used a standard exchanger, not only the air but also the building structure (walls, ceilings, floors) and porous materials became dry. This means it may take some time for humidity levels to recover, so patience is necessary.
Every enthalpic exchanger we supply is fully functional and improvement is guaranteed. We recommend keeping natural humidity sources (plants, cooking, drying clothes). If you use humidifiers, continue using them until the humidity rises to a comfortable level with the enthalpic exchanger, after which they can be reduced.
Yes. Unlike a standard exchanger, an enthalpic heat exchanger transfers part of the humidity back into the fresh air. This process is gradual, but you can speed it up by adding humidity – either naturally (plants, drying clothes, washing floors) or with humidifiers. Once the humidity has returned to a stable, optimal level, additional humidification can be reduced.
No, an enthalpic heat exchanger does not generate humidity by itself. It only transfers part of the moisture from the exhaust air back into the fresh supply air. If humidity in your home is too high, the cause lies elsewhere (e.g., insufficient ventilation, drying clothes indoors without venting, or residual construction moisture). The enthalpic exchanger helps balance humidity and prevents extreme fluctuations.
An enthalpic heat exchanger works on the principle of counterflow air streams. During ventilation, two separate airflows meet inside – the warm, humid exhaust air from indoors and the cold fresh air from outside. A special membrane transfers both heat and water vapor from the exhaust air to the incoming fresh air without mixing the two streams. This way, fresh air enters the home with a more comfortable temperature and humidity, improving comfort while saving energy.
The sealing tape must be applied around the perimeter of the exchanger, so that when inserted it presses firmly against the unit walls and prevents false air from being drawn in. The surface of the exchanger must be dry and clean before application. Always apply the tape straight, without gaps or folds, to ensure proper sealing.
